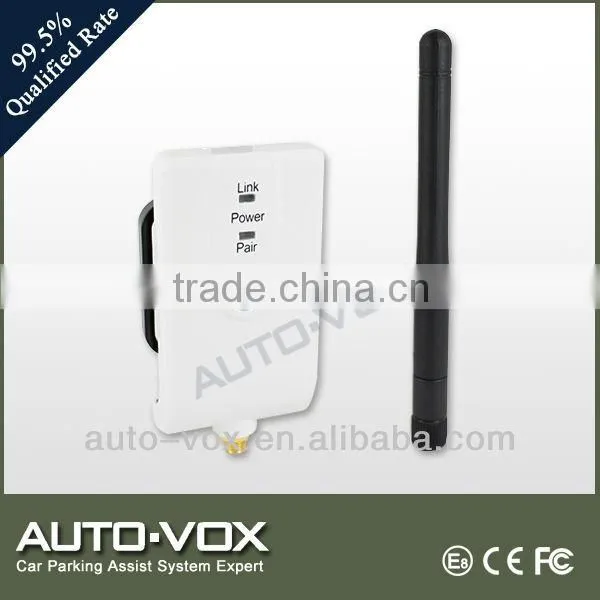

2.4G Long Range Wireless Audio Video Transmitter for Rearview

Name: 2.4G Long Range Wireless Audio Video Transmitter for Rearview
Brand: Auto-vox
SKU: 105683771

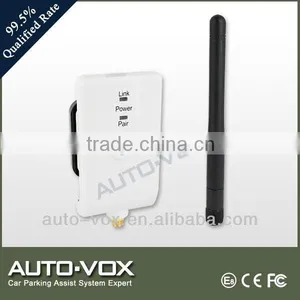

2.4G Long Range Wireless Audio Video Transmitter for Rearview thumbnail-1

2.4G Long Range Wireless Audio Video Transmitter for Rearview photo-1

Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Auto-vox

Model Number:

AX-WT24D

Contact Supplier Request Quote Chat Now

Shenzhen Auto-Vox Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Auto-vox

Model Number AX-WT24D

Specifications

2.4G WLs transmitters
1.MPEG4 codec
2.FHSS base band
3.RF transceiver
4.AD&FlashaaLCD drive and CVBS output

CAR MAKE:

For truck, bus, caravans, mobile home, camping car, industrial vehicle and heavy duty vehicle.

DC Characteristics
(POWER SUPPLY)	+6~+24V
(Current Consumption)	TYPE:330mA, Max.400mA
(Environmental Specification)
(Operating Temperature)	-10~+60 ºC
(Storing Temperature)	-30~+85 ºC
(Operating humidity)	85%RH
BASEBANGD SPEC.
(POWER ON)	2SEC Max. VR850SF
(POWER ON)	TBD Max. VR850SF/AV
(Latency)	100ms Max. VR850SF
(Latency)	TBD Max. VR850SF/AV
(Resolution)	VGA/640X480 VR850SF
(Resolution)	PAL:720X576/NTSC:720X480 VR850SF/AV
(Frame Rate)	30f/s VR850SF
(Frame Rate)	NTSC:30f/s/PAL: 25f/s VR850SF/AV
(Video Codec)	MPEG4
(Video in System)	PAL/NTSC Auto detection
(Audio Codec)	MP3 1Channel
(Voice Sample Rate)	8KHz VR850SF
(Voice Sample Rate)	48KHz VR850SF/AV
(Voice Frequecny Band)	340Hz~3.4KHz VR850SF
(Voice Frequecny Band)	20Hz~20KHz VR850SF/AV
(ID)/(BIT)	(Pairing)/22(4KK)
(SYSTEM Architecture)	ARM9(32Bit) SOC
	(Blue Screen)
RF SPEC.
(Operation Frequency)	2400 ~ 2483.5MHz^*
(RF Impedance)	50Ω, Typ.
(Voltage Standing Wave Ratio)	2:1
(Output Power)	18dBm with Power control
(RF Bit Rate)	6Mbps VR850SF
(RF Bit Rate)	12Mbps VR850SF/AV
(RF Band Width)	5MHz Max. VR850SF
(RF Band Width)	TBD Max. VR850SF/AV
(Modulation)	QPSK VR850SF
(Modulation)	16QAM VR850SF/AV
(Spread Spectrum)	(FHSS)
(Overlapping Hopping Channel)	80
(Hopping Rate)	1200/S
(CRCCheck Bit)	16
(Line of Sight Range)	>200M VR850SF
(Line of Sight Range)	>150M VR850SF/AV
(Receiving Sensitivity)	-86dBm@1MHZ QPSK VR850SF
(Receiving Sensitivity)	-78dBm@1MHZ 16QAM VR850SF/AV
(RSSI Level)	4
(Video Characteristics)
(Video Output impedance)	75Ω, Typ.
(Video Output Level)	1Vp-p, Typ.
(Video Polarity)	(NEGATIVE)
(Video Frequency Respone)	±5 dB, Max. 50Hz ~ 6MHz
(Differential Gain)	±5 %, Max
(Differential Phase)	±5 Deg., Max
S/N	50dB, Min
Audio
(Audio Output impedance)	10KΩ, Typ.
(Audio Output Level)	1±0.2Vp-p, Typ.
S/N(340Hz ~ 3.4kHz)	63dB, Min
(THD):(340Hz~ 3.4kHz,0.5p-p)	0.1 %, Max
Max. output video power:13mW@RL=16ohm 120mW@RL=120mW
