Silicon Carbide Rotary / Stationary Ring Seal Face (customer Customized)

Name: Silicon Carbide Rotary / Stationary Ring Seal Face (customer Customized)
Brand: rock metal
SKU: 105772599

US$ 5 - 100 MOQ: 5 Pieces

Key Specifications

Standard or Nonstandard:

Nonstandard

Style:

Mechanical Seal

Material:

Other, RBSIC & SSIC

Ningbo Rock Metal Product Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo / Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Nonstandard

Style Mechanical Seal

Material Other, RBSIC & SSIC

Place of Origin Zhejiang, China

Brand Name rock metal

Model Number sic seal ring

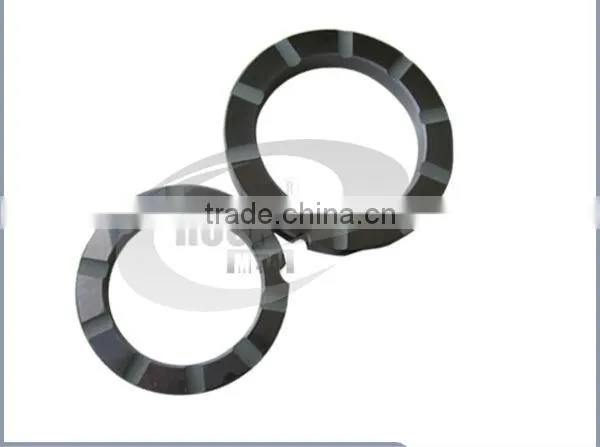

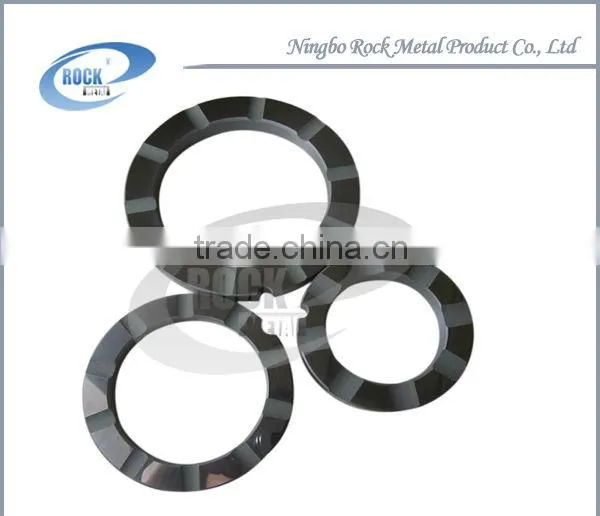

Silicon Carbide Rotary / Stationary Ring Seal Face (customer customized)

We can supply Pump Mechanical Seal as per your requirements.
Please feel free to contact us, we are sure both of us will have plenty of opportunities working together.
SEND US DRAWING or SAMPLE!!

We design and manufacture the mechanical seal and seal material for Pumps, Compressors, Agitators, Mixers, Steam Turbines, Separators, food machinery and rotating equipment that require sealing devices.
We are specialized in Reaction bonded silicon carbide (RB SIC) and sintered silicon carbide(SSIC) mechanical part, the material is alpha sintered silicon carbide.
100% inspection, all products are checked to esure highest of standards.

SSIC & RBSIC features:

Properties	Reaction	Sintered
Purity(%)	>90	>97
Density(g/cm)	3.0-3.05	3.05-3.15
Porosity(%)	<3	0
Compressive Strength(Mpa)	2000	3500
Hardness (HRA)	105(HS)	> 92
Bend strength (Mpa)	350-450	400-580
Max-Working Temperature/centigrade degree	1300	1600

We can OEM according to your drawing. Any further information you need, please send your inquiry to us
If I am off of keyboard, pls leave me a msg or email, We will make the best quotation to you ASAP.
We would be your best choice! Welcome to visit our website for more details.
