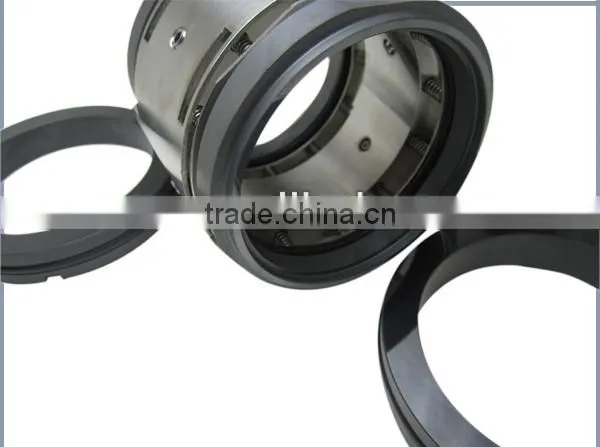

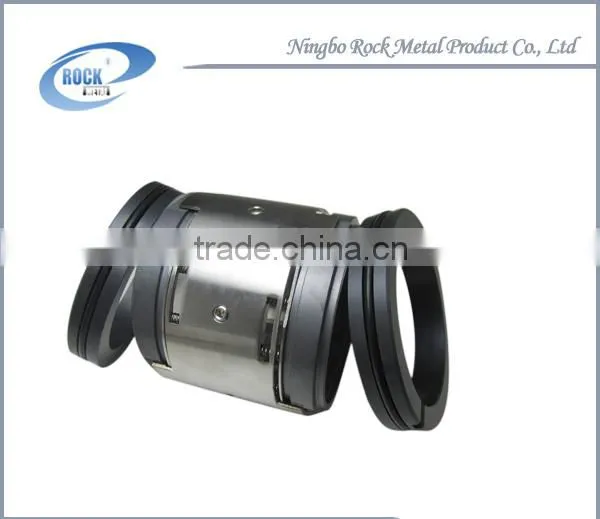

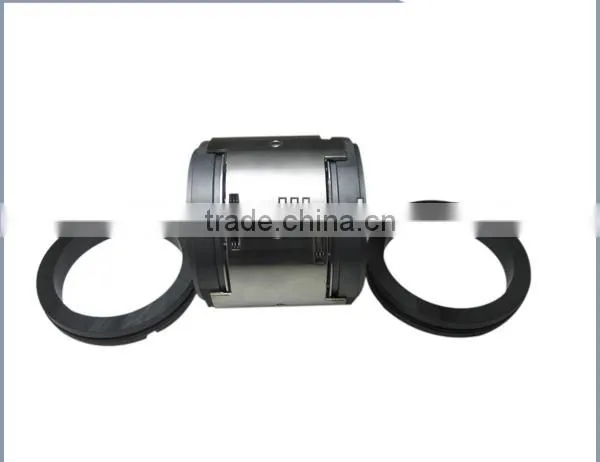

Industrial double mechanical seal
Mechanical Seal Burgmann :
- Operating Conditions
Mediums: Water, oil, organic liquids, middle corrosion liquids and other mediums including solid granule.
Pressure:Up to 15bar or 218psi
Speed: Up to 20m/s or 66ft/s
Temperature:-40°C to 230°C or -40°F to 446°F (depending on materials used)
To ISO 3069 and DIN 24960
- Material:
Seal face/Primary ring: Silicon carbide, Tungsten carbide, Carbon graphite..
Seat/Mating ring: Silicon carbide, Carbon graphite, Tungsten carbide
Secondary seals: Viton, NBR, PTFE, EPDM, Silicone
Spring and others: SUS304, SUS316, SUS316L etc.
- For plain shafts
- Single seal
- Unbalanced
- Super-Sinus-spring or multiple springs rotating
- Independent of direction of rotation
- Variant with PTFE secondary seals for high chemical resistance (M78N)
- Universal application opportunities
- Efficient stock keeping due to easily interchangeable faces
- Extended selection of materials
- Insensitive to low solids contents
- Flexibility in torque transmissions
- Self cleaning effect
- Short installation length possible (G16)
- Pumping screw for media with higher viscosity (M7..F)
- Process industry
- Water and waste water technology
- Chemical industry
- Food and beverage industry
- Lube oils
- Low solids content media
- Water / sewage water pumps
- Chemical standard pumps
- Vertical screw pumps
- Gear wheel feed pumps
- Multistage pumps (drive side)
- Circulation of printing colors with viscosity 500 ... 15,000 mm2/s.
Please let us know your requirements...
- We can OEM according to your drawing.
- Any further information you need, please send your inquiry to us.
- We will make the best quotation to you ASAP. Welcome to visit our website for more details.
