Injection molding machine using Small water cooled chiller unit
Chillers in our working shop photo
I. Instruction of Small Water cooled chiller units :
1.Compressors adopt the new and famous brand compressors imported from Europe, Japan and the United States with the feature of environmental protection, energy saving and durability.
2. It can be placed directly at working site to avoid the cooling loss caused by far distance;
3. Evaporator use the efficient and internal thread tube having the "U" shape design, small size, high efficiency and easy cleaning & maintenance;
4. Best suited for high-temperature and strong corrosion& severe pollution industries such as chemical, surface treatment, the plastic industry, etc.
Water cooled chiller working principle
II. Technology parameter of Small Water cooled chiller units :
Models |
Cooling |
Input |
Compressor |
Evaporator |
Condenser |
The machine |
Capacity |
Power |
power |
Flow water |
Cooling water |
size |
|
The models below include 1 compressor | ||||||
XCW-05S |
16,168kcal/hr |
5.35kw |
4.25kw |
2.6m3/h |
3.2m3/h |
1000*680*1100mm |
XCW-08S |
25,370kcal/hr |
8.2kw |
6.81kw |
4.2m3/h |
5.5m3/h |
1400*750*1200mm |
XCW-10S |
31,390kcal/hr |
10.4kw |
8.8kw |
5.5m3/h |
7.2m3/h |
1400*750*1200mm |
XCW-12S |
37,496kcal/hr |
12.6kw |
10.8kw |
6.6m3/h |
8.2m3/h |
1400*750*1200mm |
The models below include 2 compressors | ||||||
XCW-16D |
49,192kcal/hr |
16.2kw |
13.8kw |
7.8m3/h |
10.6m3/h |
1500*800*1250mm |
XCW-20D |
62,780kcal/hr |
20.8kw |
17.5kw |
11.2m3/h |
13.8m3/h |
1650*800*1350mm |
XCW-25D |
75,164kcal/hr |
25.6kw |
21.8kw |
13.4m3/h |
17.8m3/h |
1650*800*1350mm |
XCW-30D |
97,180kcal/hr |
32.6kw |
27.5kw |
16.6m3/h |
20.6m3/h |
2100*1000*1350mm |
XCW-40D |
124,700kcal/hr |
41.8kw |
35kw |
21.2m3/h |
28.5m3/h |
2200*1150*1500mm |
XCW-50D |
149,640kcal/hr |
51.6kw |
43.5kw |
26.5m3/h |
36.3m3/h |
2200*1150*1500mm |
Note: | ||||||
|
1.Rate cooling capacity is based on the following parameter :evaporating temperature:10degreeC, Condensing temperature:43.3degree C. | ||||||
2.Main Voltage :3phase-380V/50HZ and 3Phase-220V-50HZ/60HZ | ||||||
3.Refrigerant :R22 or R404a | ||||||
Chillers in working shop photo
Cooling towers in Ningbo port ready for shipping photo
IV.Certificates of Water cooled chiller :

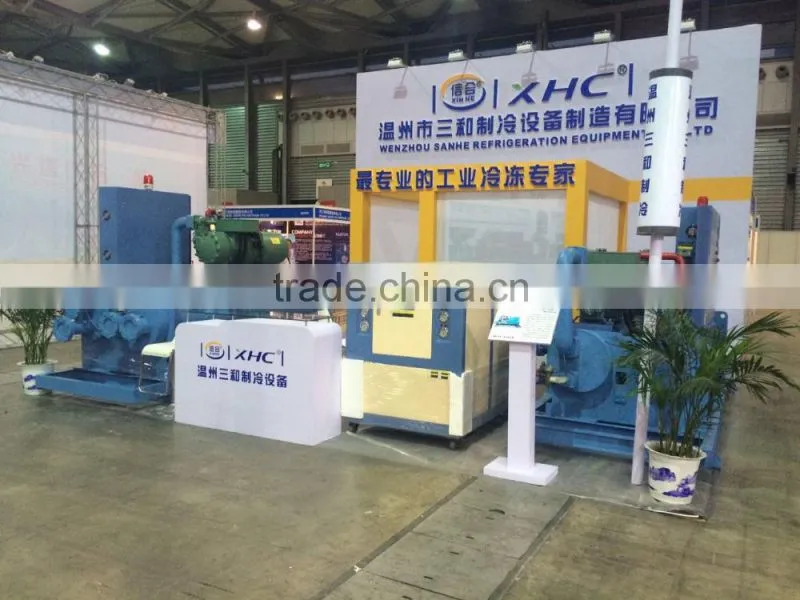

Our company on the fair photo
