BOPP Plastic Film Printing Machine

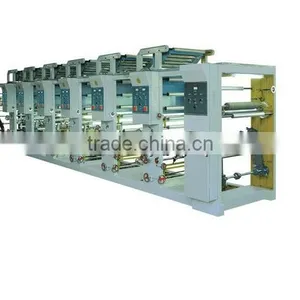

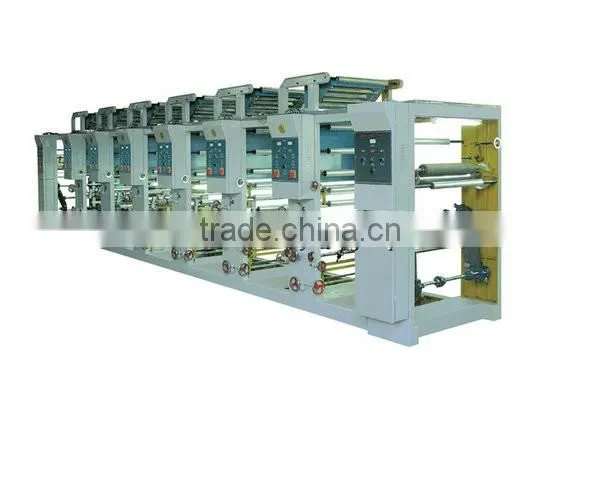

KTNS-A Series BOPP Plastic Film Printing Machine
Future:
This BOPP Plastic Film Printing Machine is suitable for roller to roller printing plastic film, aluminum Foil, BOPP, PET, PVC, PVC Foil, PE, CPP and Paper etc. It is widely use in flexible packaging material printing.
Main Technical Specification
Main Point |
Model |
KTNS-A |
Printing Colors |
2~12 Colors (base on customer requirement) |
|
Printing Material |
Plastic Film / Paper / Aluminum Foil etc |
|
Printing Width |
600mm/800mm/1000mm/1200mm/1600mm |
|
Heating Way |
Electrical heating |
|
Printing speed |
60m/min |
|
Total power |
About 55kw(8 color) |
|
Machine weight |
About 6 Ton (8 color) |
|
Machine Size(LWH) |
10000 x 2200 x 2600mm (8 color) |
|
Unwind &Rewind |
Type |
Twin-reel rotating design |
Raw Material Diameter |
600mm (Optional 800mm or more) |
|
Paper Core Diameter |
76 mm(optional152mm) |
|
Material Splicing and cutting |
Manual |
|
Tension Control |
Manual(Optional Automatic) |
|
Air-shaft |
Shaft type air shaft |
|
Printing Unit |
Printing cylinder |
Shaft type design |
Printing cylinder Diameter Range |
120~300mm (special size possible) |
|
Color register precision |
Vertical (Y-Axis) ≤±0.15mm (Manual) Horizontal (X-axis) ≤±0.15mm (Manual) |
|
Emboss rubber roller Diameter |
135 mm (NBR Shore (A) 60 °~ 65°) |
|
Ink recycle |
Not include(Optional Ink pump) |
|
Control Part |
Auto color register system |
Not Include |
Web video inspection system |
Not Include |
|
Ink viscosity |
Not include(optional possible) |
|
Reverse Printing device |
Not include(optional possible) |
|
Machine Detail Show:

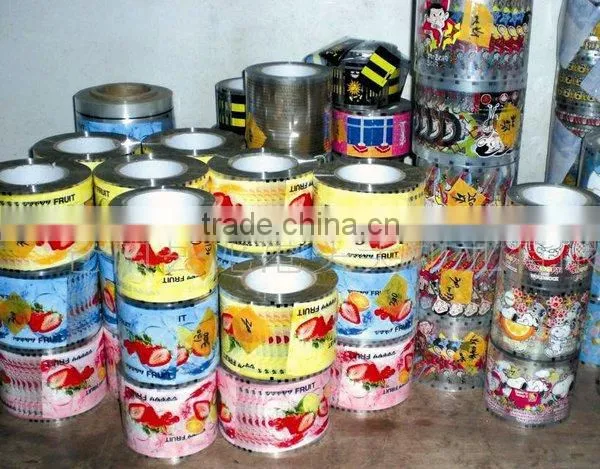

Printed Sample Show:
Other machines may be you will interesting, pls click the following picture get more details

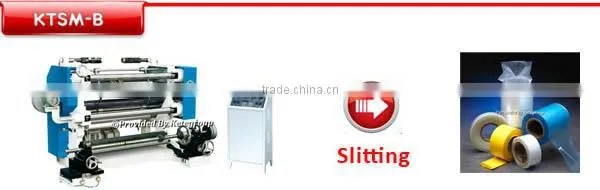

KTSM-B Series Slitting Machine

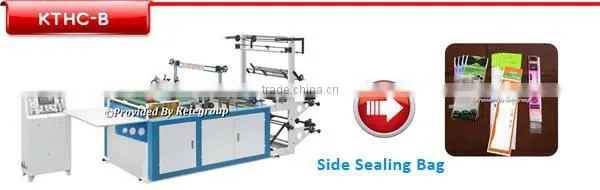

KTHC-B Series Bag Making Machine

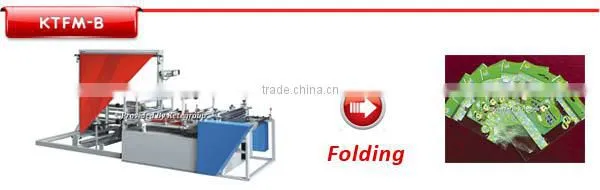

KTFM-B Series Folding Machine
Our Certification
Question: Are you Manufacture or Trading Company?
Answer:We are film extrusion machines, printing machines, bag making machines ,laminating machines, slitting machines, and other related machines manufacturer nearly 20 years, we had established our own trading company to expand our foreign market business, and provided our customer better service.
Question: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.
Question: How does your factory do regarding quality control?
Answer: Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as ABB, Yaskawa, Siemens, Airtac, NSK, Delta, Panasonic etc. And all our machine will do running test before shipping.
Question: Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
Question: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.
We have been working hard to become your Purchasing Guide and provide you one-stop Purchasing service. We looking forward hear you soon.
