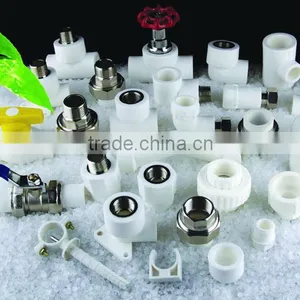

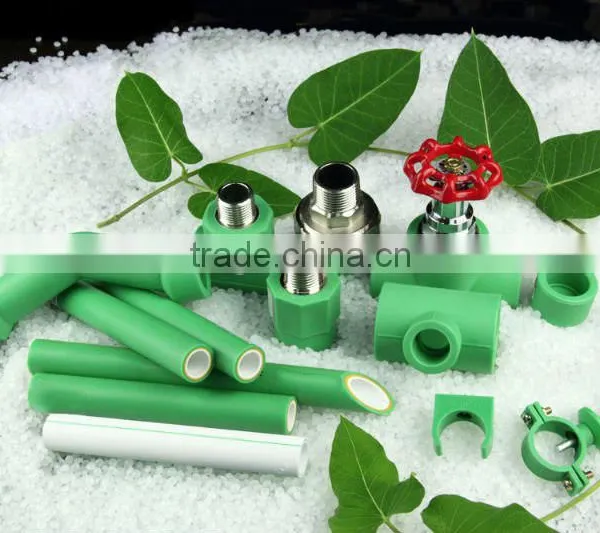

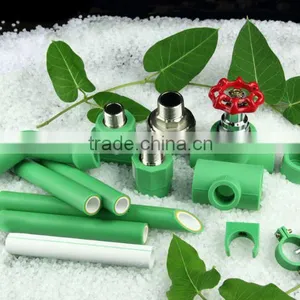

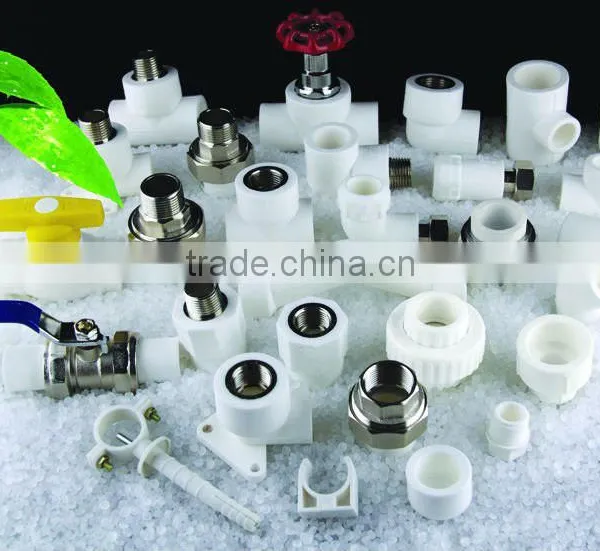

Lifeng hot water supply pipe and fitting
PPR pipe fittings feature

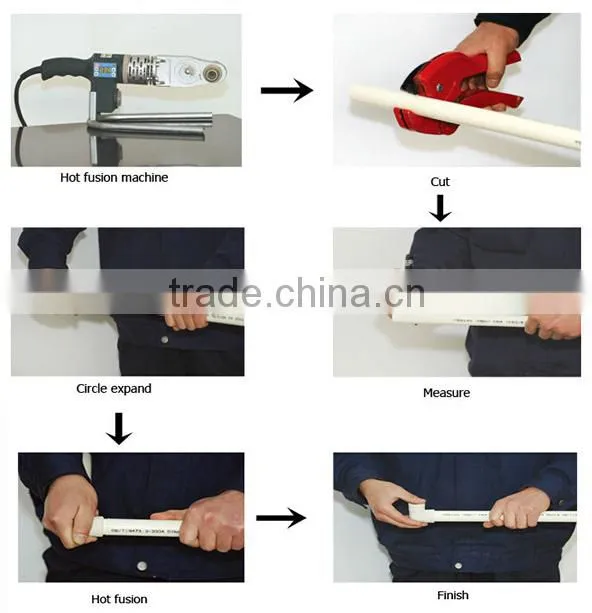

1. Formidable joint strength: Mainly refer to the thermal welding. Few joints, no leak.
2. Convenient installation: Light weight and ease of installation. Can reduce installation cost, especially in bad environment.
3. Higher flow capacity :Smooth interior walls result in lower pressure loss and higher volume.
4. Better wrap and bend ability: The vertical allowable bending benefits the construction on fluctuant earth surface.
5. Low temperature preservation:Anti-embrittlement temperature reaches -70°C,and under common low temperature (-30 °C), no need to adopt special defending or protecting. Convenient to install in winter.In the mean time, the pressure resistant test can stand 2.5 times nominal pressure by water hammer.
6. Corrosion resistant:Germany lab ever proofs anti-corrosion of the HDPE material is several times than that of copper.
7. Longevity:More than 50 years under proper use.
8. Recycled and environmental friendly
PIPE and fittings
Coefficient of thermal conductivity |
0.45w/(m.k) |
Coefficient of thermal expansion |
0.025mm/(m.k) |
Bending radius |
≥5D(D: outside diameter) |
Medium temperature |
-40℃-95℃ |
Gas-oxygen permeability |
0 |
Pipeline internal wall |
Smooth pipe with low fluid resistant and roughness of 0.0004mm |
Radial pull of pipe ring |
2400-3320N |
Brusting pressure |
5.5-9MPa |
Continuous operating temperature |
95 ℃ |
Peak failure temperature |
110℃ |
Operation temperature range |
-40℃-95℃ |
Continuous operating pressure |
1.25MPa |
Connection
Packing
