90 Degree Tee With Threaded Male Take Off

Negotiable MOQ: 10 Cartons (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Plastic

Technics:

Other, Injection Molding

Type:

Tee

L&T Mechanical & Electrical Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Material Plastic

Technics Other, Injection Molding

Type Tee

Place of Origin Tianjin, China

Model Number LT-2007

Brand Name LT

Connection Other, Socket

Shape Reducing

Head Code Other, Round

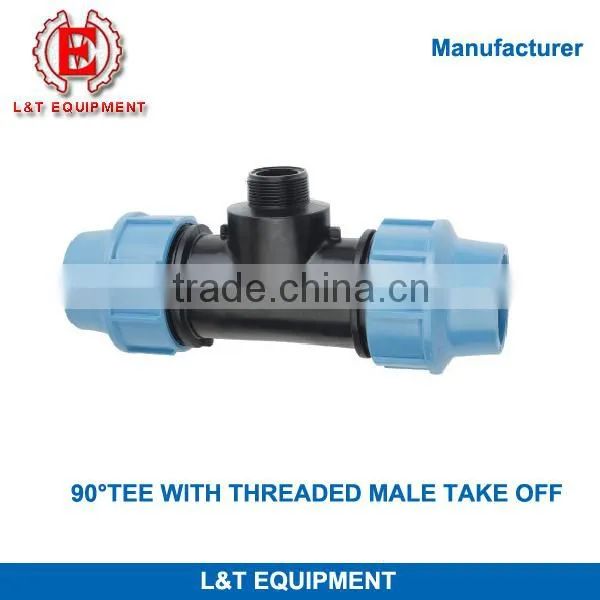

90 Degree Tee with Threaded Male Take Off

Product Description

Suitable Applications	Water Supply
Material	UPVC
Size Range	20,25,32,40,50,63,75,90,110mm
Features	Product design reference: GB/T 10002.1—2006,GB/T 10002.2—2003,GB/T 4219—96,GB/T 10002.3—96,GB/T 4220—84,ISO 4422,ISO 4435,ISO727

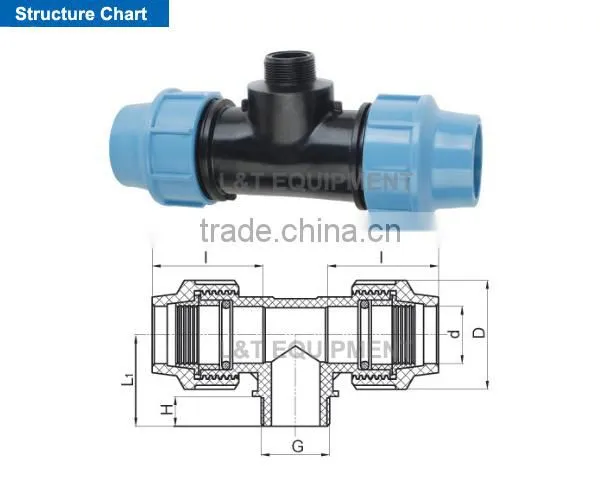

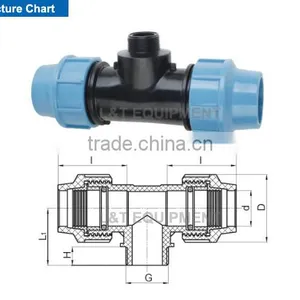

90°TEE WITH THREADED MALE TAKE OFF LT-2007
dxGxd	D	L	I	H	L₁	PN
20x1/2"x20	45	139	56	15	36	16
20x3/4"x20	45	137	56	17	40	16
25x1/2"x25	55	164	64	16	38	16
25x3/4"x25	55	162	64	17	40	16
25x1"x25	55	165	66	20	45	16
32x1/2"x32	63	186	70	16	45	16
32x3/4"x32	63	186	70	17	46	16
32x1"x32	63	186	70	20	50	16
32x1 1/4"x32	63	186	70	22	51	16
40x1"x40	79	217	85	20	54	16
40x1 1/4"x40	79	217	85	21	54	16
40x1 1/2"x40	79	217	85	21	54	16
50x1 1/4"x50	94	267	98	22	64	16
50x1 1/2"x50	94	267	98	22	66	16
50x2"x50	94	267	98	24	69	16
63x1 1/2"x63	115	313	127	22	75	16
63x2"x63	115	332	127	24	80	16
63x2 1/2"x63	115	332	127	31	97	16
75x1 1/2"x75	129	363	134	33	110	16
75x3"x75	129	363	134	36	112	16
90x3"x90	155	416	160	35	119	16
90x4"x90	155	416	160	36	120	16
110x4"x110	185	523	201	37	150	16

Application :

Advantages :

Light weight and easy installation: 1/5-1/6 of the cast-iron pipe fittings to save more transport
Costs and expenses (totally 30-40% lower than cast-iron pipe fittings)
Strong Corrosion resistance for acid, alkali and chemical resistance to ensure the long serving
Life (Reach 50 years under the normal working pressure)
Recyclable , environmental friendly
No vibration or noise
Widely used in agriculture, Irrigation, industry etc. such as water supply, sewerage treatment, drainage, rainwater pipelines.
