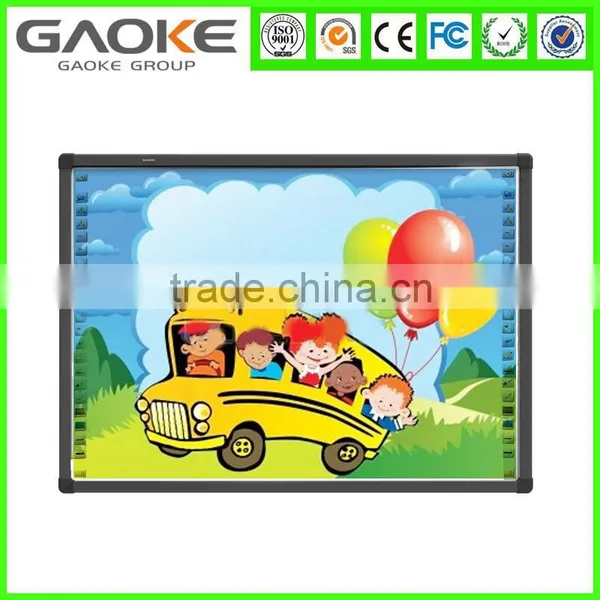

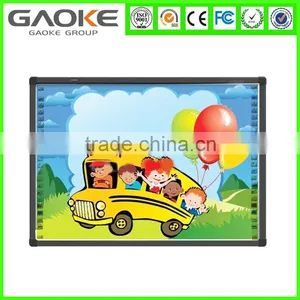

GKBoard interactive whiteboard connects with a general computer by a USB cable, the display output of computer can be projected on the whiteboard through a projector. After calibration, touch and tracking information from the board will be transferred into pointer click and movement of the mouse, and by Gaoke software or other program, all click, tracking and writing information will be displayed on the board at real time.
GKBoard infrared interactive whiteboard software features:
- Free upgrade for life;
- Offering free resource download website;
- Supports diverse resource database self-defined by common format files, no limit to the number of resource;
- Marking play-status of Microsoft PowerPoint;
- Catching and marking any desktop contents (files can be printed )
- Audio , video recording and playback function
- Users can expand the application functionality themselves
- One key switch between left mouse button and right mouse button.
- Supporting to insert images, animation, video and other files
- Supporting to self-defined shortcut button function.
GKBoard infrared interactive whiteboard hardware features:
- Board writing smoothly and fluently ,with high precision;
- No light spots, to protect user’s eyes;
- the GKBoard could be used also as a traditional white board using water pen for writing.
- All kinds of board material can satisfy different requirement of customers.
- The reverse side use zinc coating plate, to avoid whiteboard working abnormally because of electromagnetic interference
- The main PCB is separated from the board, be convenient for after-sale to repair quickly
- Scratches on the board surface will not affect the use of GKBoard.
- One key for positioning calibration.
Model |
GK-880H/82S |
GK-880H/85 |
GK-880H/88 |
GK-880H/96 |
GK-880H/96S |
GK-880H/104 |
GK-880H/120 |
Principle |
Infrared Induction |
||||||
Aspect ratio |
(4:3) |
(16:9) |
(16:10) |
(16:10) |
(4:3) |
(16:9) |
(16:9) |
Dimension |
82 inch |
85 inch |
88 inch |
96 inch |
96 inch |
104 inch |
120 inch |
Appeaarance |
1756X1254 |
1920X1090 |
1920X1254 |
2083X1254 |
1920X1417 |
2247X1254 |
2737X1581 |
Active area |
1638X1145 |
1800X982 |
1800X1145 |
1964X1145 |
1800X1313 |
2126X1145 |
2615X1455 |
Writing tools |
Pen,finger,pointer or other object |
Precision |
<1mm |
Surface material |
writing material with low reflection,support mark pen |
Resolution |
32768X32768 |
Backplane |
Metal plate material |
Power supply |
USB only |
Frame material |
Aluminium alloy |
Consumption |
<1W |
Touching life |
More than 60,000,000 times |
Driver mode |
plug and play |
Modular design |
Put the PCB and replace easily |
Working temps |
(-10~55°C) |
Supported OS |
win8/win7/vista/xp/2003/2000/me/98 |
working humidity |
(10%-95%) |
Cursor speed |
250 point/sec |
Mark pen |
Support |
USB cable length |
5m |
Installation |
wall mounted |
1.What's the different between G, K, Z series interactive whiteboard?
Gaoke GK-880H interactive whiteboard have G, K, Z series, they use same board material and circuit board, the main difference is the frame style, G series use a normal wide frame, K series use a wider frame, Z series use a narrow frame. Beside this, the K series have a free intelligent penholder.
2. How it working? Need any other product?
Gaoke GK-880H interactive whiteboard have infrared and electromagnetic technology whiteboard, the whiteboard system need at least three product: 1. Interactive whiteboard, 2. Projector, 3. Computer. Users also can choose visualizer, pointer, speakers.etc to working with interactive whiteboard system.
3. MOQ, Delivery term, Payment term?
Our normal order MOQ is 1 pcs, OEM MOQ is >100pcs.
Delivery term: EXW, FOB, CNF, CIF.etc is no problem.
Payment term: T/T, Western Union, Paypal, Escrow.etc
