Specifications
TYPE:ZQ203/125 Drilling Pipe Hydraulic Power TongSY/T5074 STANDARD
API-7K
AN INDEAL WELL-HEAD TOOL
TOBULAR HANDLING TOO

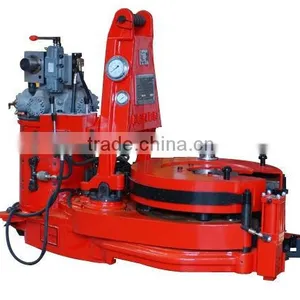

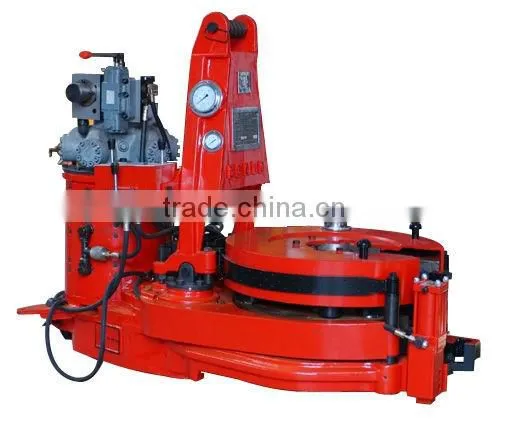

ZQ203/125 Drilling Pipe Hydraulic Power Tong
ZQ203-125 drill pipe power tong features as :
1.Higher degree of mechanization and larger torque
2.With hydraulic lifting equipment
3.Performs safety ,labor-saving and hight-efficiency
4. Industrial standard SY/5074 and API Spec 7K “Specification for Drilling Equipment.
It is an ideal well head tool for oil drilling, widely applied for making-up and breaking-out in offshore and onshore drilling operations and well servicing operations. The drill pipe tong performs safety ,labor-saving and hight-efficiency . Open-throat design of the ZQ series allows the tongs to escape from drilling pipe freely with high mobility. The tong is a combination of spinning tong and torque tong. It substitutes cathead, manual tong and rotary rope in making-up and breaking-out. The tongs are designed and manufactured according to Industrial standard SY/5074 and API Spec 7K “Specification for Drilling Equipment.
Technical Parameters
Model |
ZQ203/125 Drilling Pipe Power Tong |
Drilling Pipe Size Range |
31/2"-5½" coupling 8 " Drill Collar |
High Gear Rated Torque |
8.7 kN.m (6416ft-lbs) |
Low Gear Rated Torque |
125kN.m (92950 ft-lbs) |
High Gear Rated Speed |
33 r / min |
Low Gear Rated Speed |
2.2 r / min |
Rated Operation Pressure |
18MPa (2610psi) |
Max. Flow |
120L/min (32gpm ) |
Shifting Distance(mm) |
1500mm |
Dimension:L×W×H (mm) |
1750×1060×1680mm (68"×42"×66") |
Removed Quality(including Backup tong) |
2500kg (5500 lbs) |
