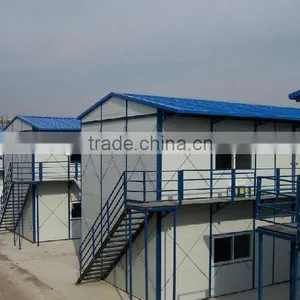

mini mobile home for sale
Advantage: Safe, utility and firm, easy to assemble disassemble, easy to transport, economy and comfortable&Environmental.
Main material: 50/75MM EPS sandwich panels (rock wool, glass wool can be choose,panel thickness can be choice.)+ light steel frame. ( buyer need make concrete foundation).
Design: Different design is acceptable.
Application: It is widely used in building site, such as road project, railway, real estate, bridge project, dam project, power station, and mining site and so on. Also the house can be used for family house for low income house, dormitory, accommodation, apartment, kitchen, classroom and temporary house, temporary hospital, gas station, wild temporary houses etc.
Technology date:
1)Wind against: 10-level wind manufactured homes price
2)Earthquake against: 8 grades
3)Static load: 0.20 KN /m2; Live load: 0.3 KN/m2
4)Basic wind pressure: 0.35 KN /m2
5)Earthquake intensity, Fortification intensity: 8 degrees for single story
6)Damp proof,flame proof
7) Easy assemble,2-3 persons can install about 100 square meter per day.
mini mobile home for sale
Material list as below:
Steel structure frame |
Column |
#C steel 80×40×1.9 mm |
A beam |
C80×40×1.9,(C80×40×1.9),L40×3.0 |
|
Herringbone beam |
C80×40×1.9,(C80×40×1.9),L40×3.0 |
|
Ground beam |
C80×40×1.5 mm |
|
Ring beam |
C80×40×1.5 mm |
|
Roof purlin |
L40×3.0 mm |
|
Horizontal beam |
L40×3.0 mm |
|
Control rod |
φ8 |
|
Steel stairway |
steel structure stair,3mm steel board |
|
Railing |
60×40 flat steel,L40×3.0,28 square steel,35 square steel |
|
Floor |
Second floor |
15mm polywood floor |
Roof panel |
Roof tile |
20mm PU tile/50mm EPS/ 50mm rock wool/ 50mm glass wool |
Wall panel |
wall |
50mm EPS sandwich panel/50mm rock wool/ 50mm glass wool |
Accessory |
Door |
4cm EPS sandwich panel |
Window |
plastic steel sliding window(1740cmx925mm) ,the thickness of glass is 4mm |
|
nails, screws, bolts, glass cement | ||
Install step as below:
Drawing:
