Home > Electrical & Electronics > Socket & Outlet > Wall Socket > SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type

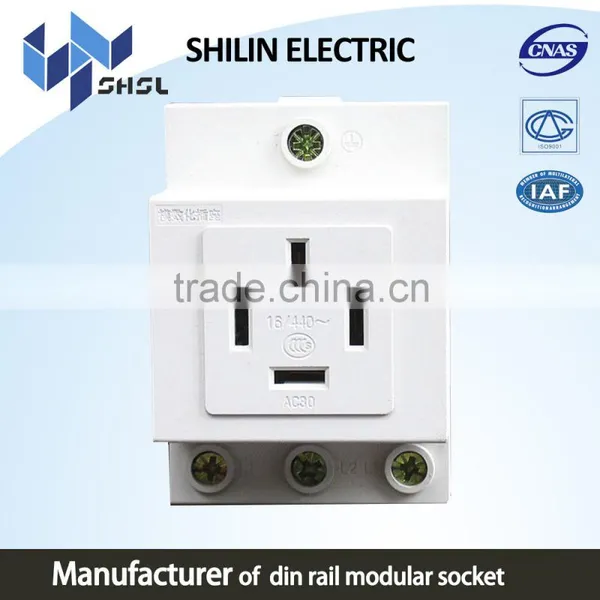

SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type

SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type thumbnail-1
SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type thumbnail-2
SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type thumbnail-3
SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type thumbnail-4
SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type thumbnail-5
SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type thumbnail-6
SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type photo-1
SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type photo-2
SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type photo-3
SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type photo-4
SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type photo-5
SBTA1 AC30 Din Rail Modular Socket Three Pole and 10 Amp of Multiple Function Type photo-6
US$ 2.28 - 2.3 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SHILIN
Model Number:
SBTA1-3-10
Contact Supplier Request Quote Chat Now
Shanghai Boosan Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI Ningbo Zhoushan port Tianjin Tangshan Guangzhou Suzhou Qingdao Rizhao Qinghuang ISLAND Yantai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name SHILIN
Model Number SBTA1-3-10
Grounding Standard Grounding
Application Residential / General-Purpose
Type Other, Distribution Socket
Rated Current 16A
Product Description



AC30 wholesale Din Rail Modular electrical socket

1.Scope od application:  electrical socket

Electric Socket are appliied to AC 50Hz,  rated work voltage 440V and below. rated crurrent to 250A, and usually use for home, office, farm, light industry and so on



2.Constrution Features:  electrical socket
Electric Socket has good reliable contact, which is suitable   for guide installation and used with ither modular terminal electrical devices



3.Main Parameter:  electrical socket



Pole Voltage Current Operation life Standard connect wire Modular mounting Installtion
2P 250 10A 5000 cycles IEC,CCC <16mm2 yes DIN rail
2P+E 250 10A,16A
3P+E 440 16A,25A



Type

Rated current(A)

Rated voltage(V)

Width(mm)

Poles

Connection capacity

SBTA1-10/2

10

250

18

2

≤16mm²

SBTA1-16/2

16

250

18

2

SBTA1-10/3

10

250

36

3

SBTA1-16/3

16

250

36

3

SBTA1-20/3

20

250

36

3

SBTA1-25/3

25

250

36

3

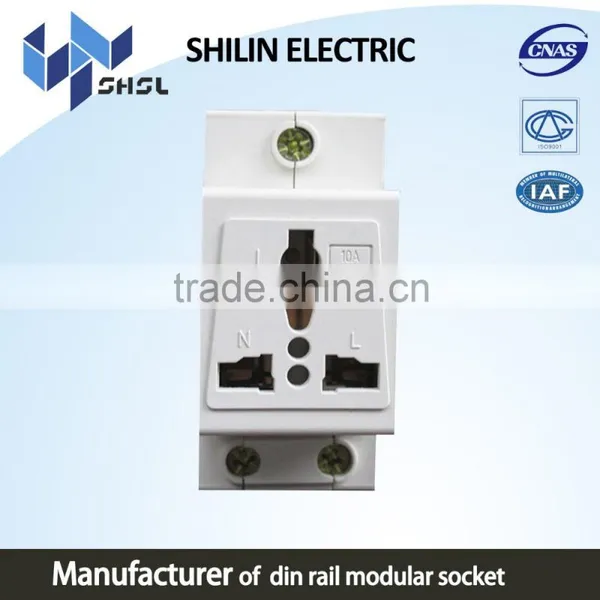

SBTA1-10/3(multifunction socket)

10

250

36

3

SBTA1-10/3(multifunction socket)

16

250

36

3

SBTA1-16/4

16

415

54

4

SBTA1-25/4

25

415

72

4



4.Installation:  electrical socket

Installation  DIN width 35mm

SBTA1 AC30 din rail modular socket three pole and 10 amp of multiple function type
