Specifications
Semi Automatic Flute Laminator1,automatic feeding bottom paper
2,A,B,C,D,E corrugating
3,speed:0-90m/min

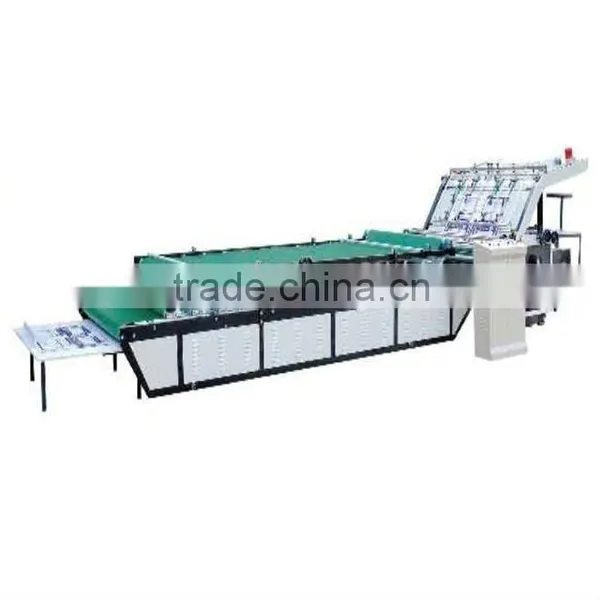

Semi Automatic Flute Laminator
Function and Features
1,Automatic feeding bottom paper ,front pushing face paper ,it has easy shortcut for feeding paper, lower work intensity.
2,Front orientation and bottom paper never leading suit jointing of paperboard to paperboard ,paperboard to A,B,C,D,E style corrugating cardboard.
3,Jointing of bottom paper to face paper can be fore-and-after adjusted ,easy opposite joint..
4,Feeding glue system is automatically controlled by liquid relay .Thickness of sub can be adjusted equally lowering glue cost.
5,Electric machine adopts nonpolar shift ,electromagnetism clutch adopts no touch point relay ,journey position adopts photoelectricity switch detect ,electron automatic count and empty sheet photoelectricity automatic control.
Model |
1300-E |
Max covering size |
1300mm*1100mm |
Min covering size |
350mm*350mm |
Machinery highest speed |
0-90m/min |
Electric machine power |
7kw |
Area |
8m*1.98m |
Packing size |
1.97m*2.0m*1.0m 4.58m*1.98m*1.52m |
Weight |
4.5T |
