CE RoHS 40*40*07mm Electric Motor Brushless DC Motor 12V DC Cooling Fan

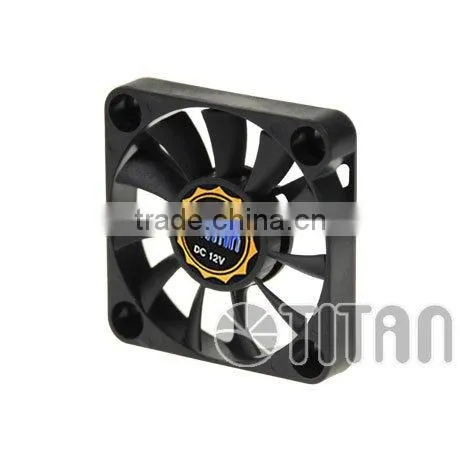

CE RoHS 40*40*07mm Electric Motor Brushless DC Motor 12V DC Cooling Fan photo-1
US$ 2.25 - 3.05 MOQ: 3000 Pieces
Key Specifications
Get Latest Price
Application:
Computer Case
Type:
Fan
Heatsink Material:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Application Computer Case
Type Fan
Heatsink Material Other
Brand Name DC Fan
Model Number TFD-4007xxxx
Place of Origin Guangdong, China



-  TFD-4007xxxx -





< Specification >




Model

Rated Voltage (VDC)

Rated Current (AMP)

Power Consumption (WATTS)

Speed Reference (RPM)

Air Flow
(CFM)

Static Pressure (Inch-H2O)

Noise (dBA)

TFD-4007HH05X 5 0.32 1.6 5500 6.58 0.08 <25
TFD-4007H05X 5 0.26 1.3 5000 5.64 0.06 <22
TFD-4007M05X 5 0.2 1 4500 5.23 0.05 <21
TFD-4007L05X 5 0.16 0.8 4000 4.51 0.044 <20
TFD-4007LL05X 5 0.12 0.6 3500 3.95 0.041 <17.1
TFD-4007HH12X 12 0.18 2.16 6500 7.68 0.11 <28.7
TFD-4007H12X 12 0.12 1.44 6000 7.09 0.09 <27
TFD-4007M12X 12 0.09 1.08 5500 6.58 0.08 <25
TFD-4007L12X 12 0.07 0.84 5000 5.64 0.06 <22
* X For Sleeve or One Ball & One Sleeve or Two Ball or Z Bearing
Bearing life time:
Sleeve - 25,000 Hours
One Ball & One Sleeve - 35,000 Hours
Two Ball - 50,000 Hours
Z Bearing - 60,000 Hours
