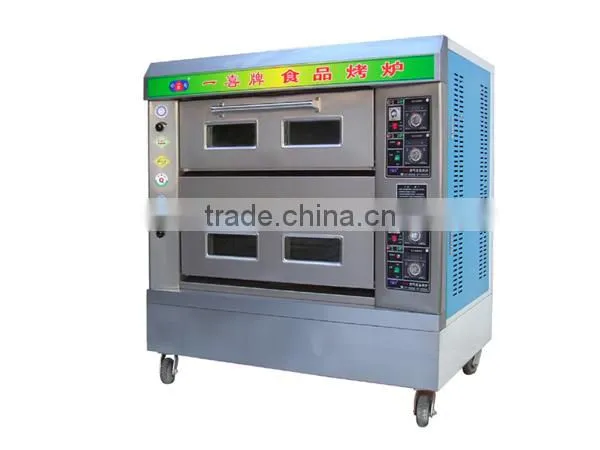

Help CenterGAS FOOD OVEN(CE&ISO, MANUFACTURER)
Related Products
-
Midea Electric Oven(CE&ISO,manufacturer)US$ 600 - 1,000MOQ: 1 Set -
Italian Convection Oven(CE APPROVED)US$ 5,000 - 6,000MOQ: 1 Set
-
Rotary Convection Oven (CE APPROVED)US$ 5,000 - 6,000MOQ: 1 Set
-
Cake Dome DisplayUS$ 111 - 11,111MOQ: 1 Set
-
Tunnel Oven Bakery Equipment(CE Approval,ISO,manufacturer)US$ 5,000 - 10,000MOQ: 1 Set
Specifications
less gas consumptionmanufacturer
digital display
with LED control
USAGE ELUCIDATI
PERFORMANCE
1) Gas and air will be input to burning implement of oven in best scale and burned completed.
2) The foods are more delicious and the colors are beautiful under the clear fire.
3) The temperature can be adjusted by up and down two burning implement.
4) The oven with auto putting-out equipment, when fire put out suddenly. Because of gas being used up or trouble else, the equipment cut off the gas. It is save and trustful.
5) There are look-in window and lamp, which make observation easier and improve the quality of baking.
6) The place of operation is not summit to restrict. The consumption is low and return is high.
7) The oven is not only suitable for alternate current 220V but also direct current 12V accumulator.
Model |
Quantity OF HEAT(MJ/H) |
VOLTAGE (V) |
POWER (W) |
TEMPERATURE°C |
GAS (KG/H) |
YXY-F12 |
18 |
220 |
30 |
300 |
0.18 |
YXY-F24 |
36 |
220 |
60 |
300 |
0.36 |
YXY-F36 |
54 |
220 |
90 |
300 |
0.54 |
8) Specification
(The oven is suitable for liquefied petroleum gas and the air pressure is 2.8kpa.)
INSTALL METHOD
1) It must be installed at ventilated working room with row fan.
2) Left of oven is far away from wall 500mm and back is far away from wall 200mm.
3) Exhaust gas must be discharged to our door. And there must be defending gale equipment at the end of row smoking piping, which avoid the exhaust gas return to in door.
4) The line of power must be linked to socket which is protected from short-circuit.
5) Crust of oven must be linked to ground stably. The socket without ground wire, there must be a line from curst to ground wire made by you.
6) Make gum tube from decompressure valve to enter the spirit. Connect must be pegged by bolt and the gas must not be leaked.
7) Liquefied gas bottle decompressure valve gum tube must match the standard, gum tube must be wrapped by firm material which pretend it from be damaged.
8) When use the direct current, please link the “+” of power to “+”of oven and link the “-”of power to “-”of oven, and the power switch to direct current. (at the moment ,power switch and look-in lamp don’t work ,and the temperature control will indicate the oven work or not )
USAGE METHOD
1) Please turn on the fan and inspect there is gas left in work room or not, before use oven.
2) Please make discharge knob at biggest and turn on power switch and make the fire switch at fire point.
3) Please make all temperature controls at “0” point.
4) Please turn on power switch and gas valve.
5) Please adjust temperature controller deasil to scheduled temperature. Raising temperature lamp is light and electric magnetism is turn on and burner is fired, close the door of oven. Oven is in heating condition. After two minutes heating, please turn on assistant fire switch.
