Help CenterUV Curing Lamp 1--12KW
Related Products
Specifications

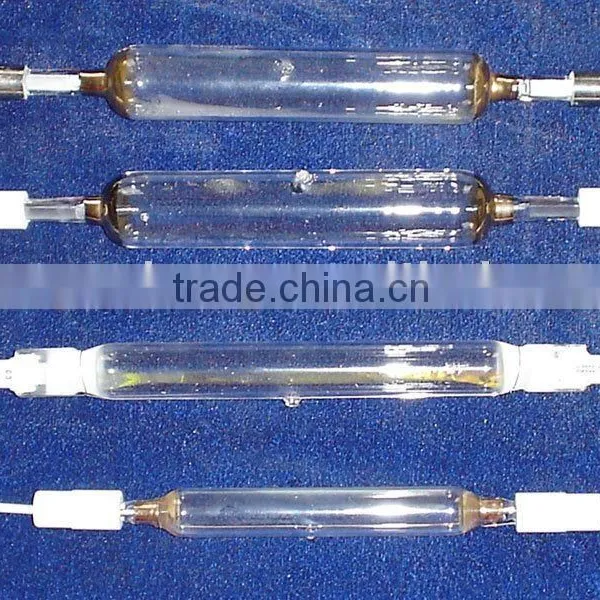

UV Curing Lamp,used for curing, printing or exposure.
The power is 1--12KW, and length can be as per customer's request
UV Lamp/( Exposure lamp/ Printing Lamp/Curing lamp /Iodine Gallium Lamp)
UV curing lamp is made of immaculate imported quartz glass, and intensively makes large ultraviolet penetrate. Its heating length is from 5MM to 300MM.
The regular power range is from 30/cm2 to 200/cm2.
And super big power is from 200W/cm2 to 400W/cm2.
Normally, standard UV Curving Lamp can give up enough ultraviolet radiation, to reach 8000hrs as lifetime.
Application: Graphic arts, Packaging, Label printing, UV lacquer, PCS manufacture, Metal decorating, Glass decoration, CD manufacturing, Inkjet printing, Optical lens costing, Automotive components, and adhesive curing.
Our real production ability is for 1KW to 31KW, the max. Length 2.8M
For Special OEM&ODM designs, we provide in-depth technical consulting by our R&D department and in-house testing facilities.
Spec.( only partia)
|
Wattage KW |
Lamp Voltage V |
Lamp Current A |
Overall Length MM |
ARC Length MM |
Tube Diameter MM |
Power Density W/cm2 |
1 |
135 |
8.1 |
225 |
125 |
25 |
80 |
1 |
135 |
8.1 |
335 |
200 |
25 |
50 |
2 |
300 |
7.5 |
400 |
250 |
22.5 |
80 |
3 |
700 |
5.0 |
360 |
250 |
25 |
120 |
3 |
700 |
5.0 |
620 |
460 |
22.5 |
50 |
4 |
500 |
8.8 |
485 |
340 |
25 |
120 |
4 |
620 |
7.2 |
664 |
508 |
22.5 |
80 |
5 |
700 |
7.8 |
700 |
600 |
25 |
80 |
5 |
750 |
7.5 |
725 |
625 |
22.5 |
80 |
5 |
750 |
7.5 |
775 |
625 |
22.5 |
80 |
5 |
850 |
6.3 |
778 |
625 |
22.5 |
80 |
5 |
850 |
6.3 |
804 |
653 |
20.5 |
80 |
6.0 |
850 |
7.8 |
640 |
500 |
22.5 |
120 |
6.5 |
900 |
7.5 |
1030 |
910 |
22.5 |
80 |
7.2 |
1150 |
7.0 |
1026 |
900 |
25 |
80 |
8 |
1200 |
7.5 |
1150 |
1000 |
22.5 |
80 |
8 |
1200 |
7.5 |
1320 |
1180 |
22.5 |
80 |
8.4 |
950 |
10.4 |
826 |
700 |
25 |
120 |
9.6 |
1570 |
6.6 |
1387 |
1247 |
25 |
80 |
11 |
1870 |
6.3 |
1575 |
1419 |
25 |
80 |
12 |
1800 |
7.5 |
1440 |
1300 |
25 |
90 |
13 |
1870 |
7.5 |
1807 |
1651 |
25 |
80 |
