anti-corrosion fiberglass offshore grating, insulation
long-term durability, offers the strength of steel at a fraction of the weight, plus it won’t corrode, spark or conduct electricity. Because it weighs less, it’s easier to install. And the color is molded all the way through, so no painting is required
Pultruded FRP Grating is built with a much stronger process, and can carry a far superior load, and handle much greater impacts than molded grate.
Yalong fiberglass grating specification list:
| Item | high (inches) |
top wide (mm) |
bottom wide (mm) |
top space wide (mm) |
theoretical weight (KG/M2) |
| 25mm I | 1 | 30 | 30 | 13 | 13 |
| 25mm I | 1 | 30 | 30 | 30 | 10 |
| 25mm I | 1 | 15 | 15 | 10 | 17 |
| 25mm I | 1 | 15 | 15 | 23 | 11 |
| 38mm I | 1.5 | 15 | 15 | 10 | 26 |
| 38mm I | 1.5 | 15 | 15 | 15 | 22 |
| 38mm I | 1.5 | 15 | 15 | 23 | 18 |
| 40mm I | 1.6 | 40 | 20 | 27 | 19 |
| 40mm I | 1.6 | 40 | 20 | 40 | 17 |
| 40mm I | 1.6 | 40 | 20 | 60 | 14 |
| 40mm I | 1.6 | 30 | 30 | 20 | 14 |
| 40mm I | 1.6 | 30 | 30 | 30 | 12 |
| 40mm I | 1.6 | 30 | 30 | 45 | 10 |
| 58mm I | 2.2 | 15 | 15 | 10 | 32 |
| 58mm I | 2.2 | 15 | 15 | 15 | 27 |
| 58mm I | 2.2 | 15 | 15 | 23 | 22 |
| 65mm I | 2.5 | 30 | 30 | 20 | 17 |
| 65mm I | 2.5 | 30 | 30 | 30 | 15 |
| 60mm I | 2.5 | 30 | 30 | 45 | 12 |
Pultruded fiberglass grating advantages
- Corrosion Resistant.
- High Strength-to-Weight Ratio.
- Long Service Life.
- Fire Retardant.
- Slip & Impact Resistant.
- Nonconductive.
- Easy to Install & Fabricate.
Fiberglass grating Applications:
Bridge walkways
Platforms
Trench Covers
Walkways
Pedestrian Ramps
Decks and Patios

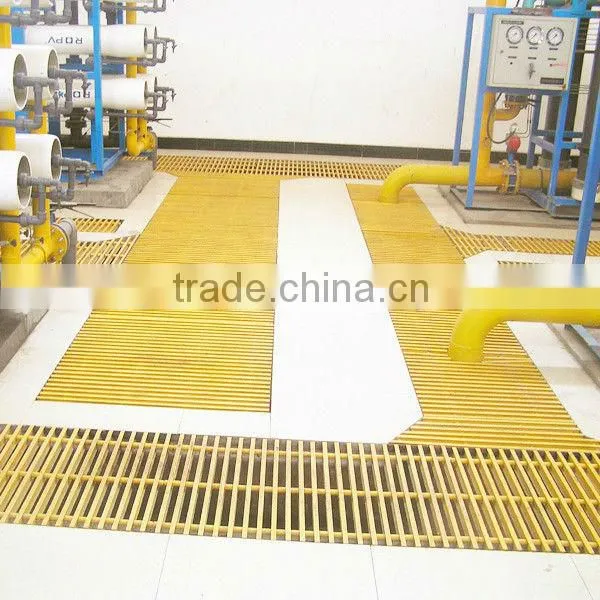

fiberglass grating floor and trench cover
fiberglass walkway grating
fiberglass stair step

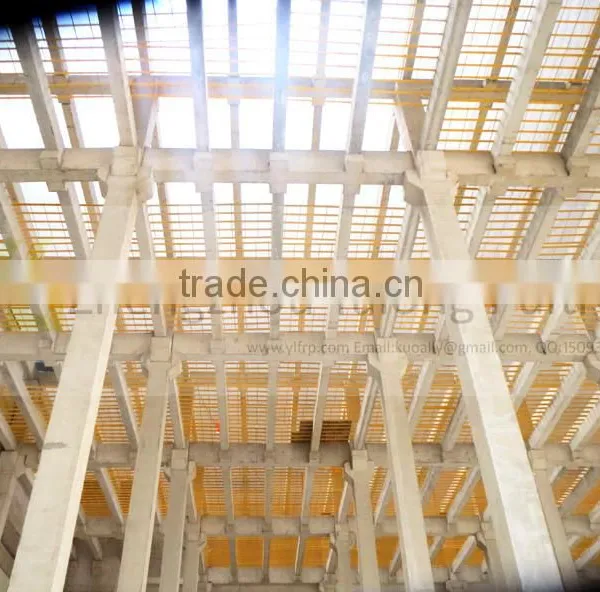

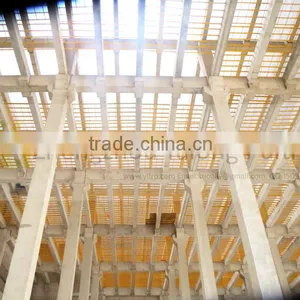

Yalong fiberglass product project photo

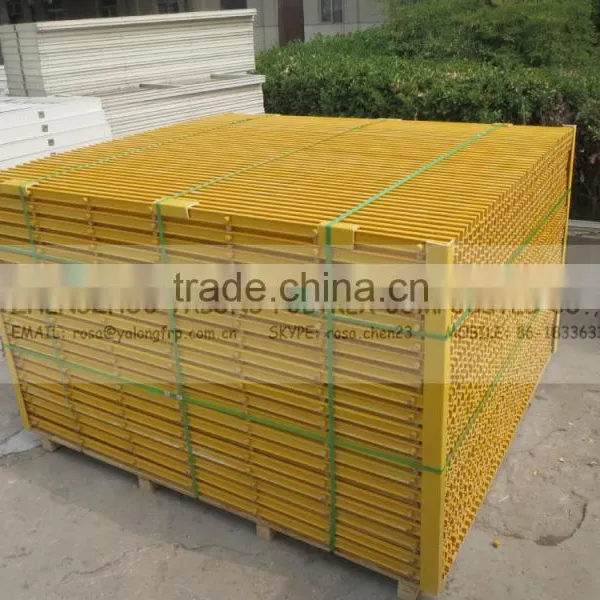

Goods packing and delivery
