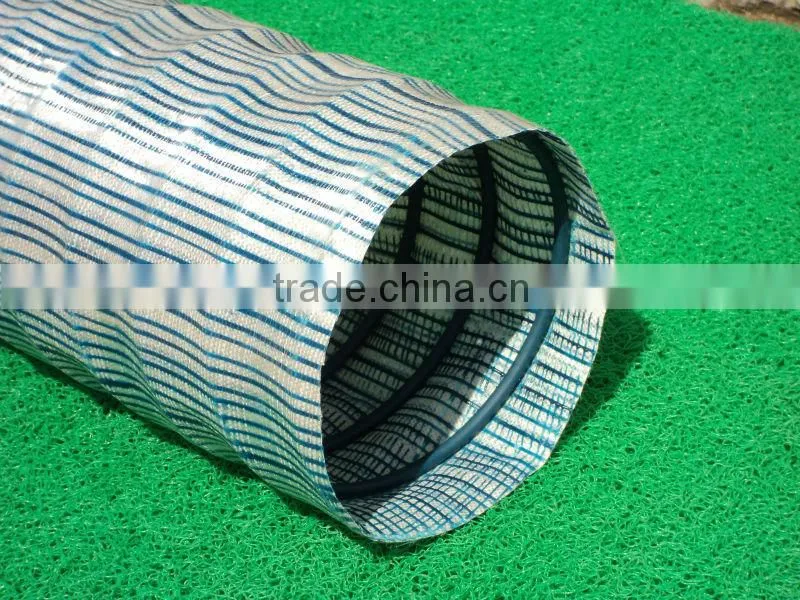

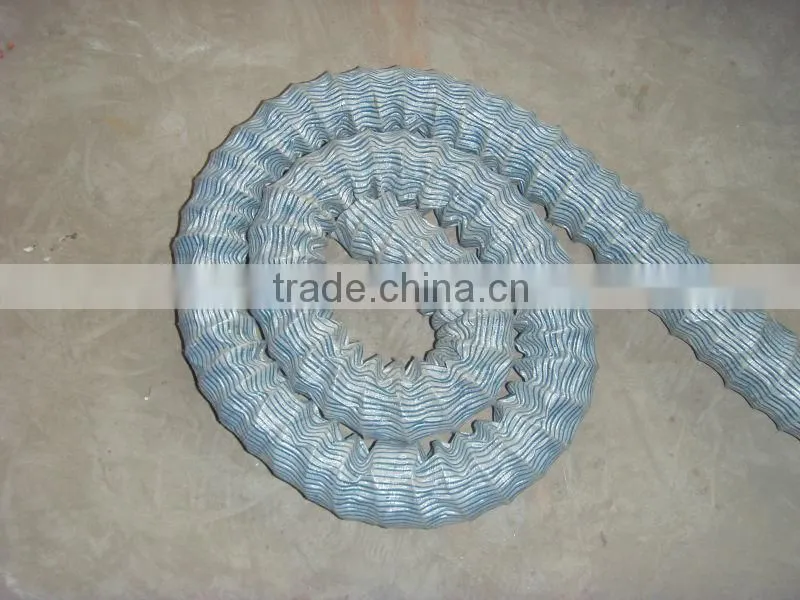

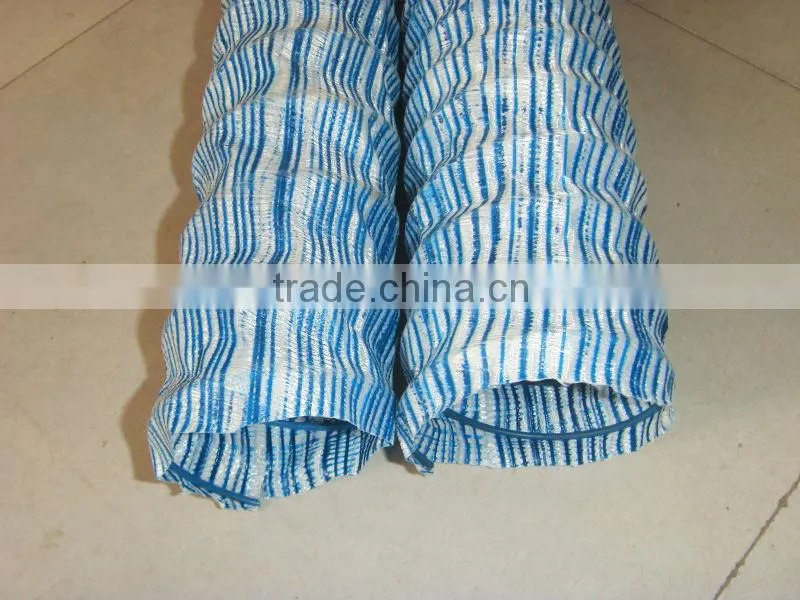

Flexible permeable hose is supported by anticorrosive spring rings to form an anti-high pressure structure.Besides, an additional non-woven cloth works as a filter to prevent the sand and soil from going into the pipe,thus purifying the water. Terylene threads on the outside surface enables the pipe to have a good sopping capacity and c ollect the superabundant water in the soil system. The rubber tendon enables the pipe wall to integrate well with the spring steel circle so that a omnidirectional penetrating function is realized, with the impurities like bedloads blocked out. In this way, penetration, filtering and drainage are done at the same time.
Flexible permeable hose Specification
Art. No. |
PLD0101 |
PLD0102 |
PLD0103 |
PLD0104 |
PLD0105 |
PLD0106 |
PLD0107 |
|
Item |
φ50 |
φ80 |
φ100 |
φ150 |
φ200 |
φ250 |
φ300 |
|
Wire diametermm |
≥1.6 |
≥12.0 |
≥2.6 |
≥3.5 |
≥4.5 |
≥5.0 |
≥5.5 |
|
|
Distance between wire ring/m |
≥47 |
≥37 |
≥32 |
≥24 |
≥17 |
≥17 |
≥17 |
|
|
Filter cloth |
MD Tensile Strength kN/5cm≥ |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
|
MD elongation % ≥ |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
|
CD tensile strength kN/5cm≥ |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
CO elongation % ≥ |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
Ball tensile strength kN ≥ |
1.4 |
1.4 |
1.4 |
1.4 |
1.4 |
1.4 |
1.4 |
|
|
Filter coefficient m/s ≥ |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
0.1 |
|
|
Effective aperture mm ≥ |
0.060.25 |
|||||||
Hose Pressure Resistance Index
|
Specs Item |
φ50 |
φ80 |
φ100 |
φ150 |
φ200 |
φ250 |
φ300 |
|
|
Flat rate |
1% N |
≥100 |
≥180 |
≥400 |
≥780 |
≥1000 |
≥1200 |
≥1400 |
2% N |
≥180 |
≥400 |
≥780 |
≥1000 |
≥1200 |
≥1400 |
≥1600 |
|
3% N |
≥370 |
≥780 |
≥1200 |
≥1400 |
≥1700 |
≥1800 |
≥1900 |
|
4% N |
≥660 |
≥1200 |
≥1500 |
≥1800 |
≥2100 |
≥2200 |
≥2400 |
|
5% N |
≥1100 |
≥1500 |
≥1800 |
≥2000 |
≥2300 |
≥2600 |
≥3000 |
|
|
Acid & Alkali Resistance |
No unusual changes when being marinated 72 in 10% Hcl and 10% NaOH |
|||||||
