Geocomposite drain pipe ,geocomposite drainage,geosynthetics for subsoil drainage

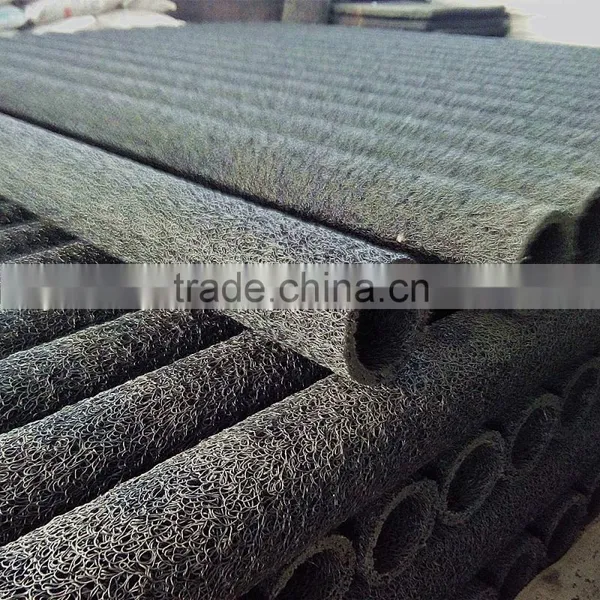

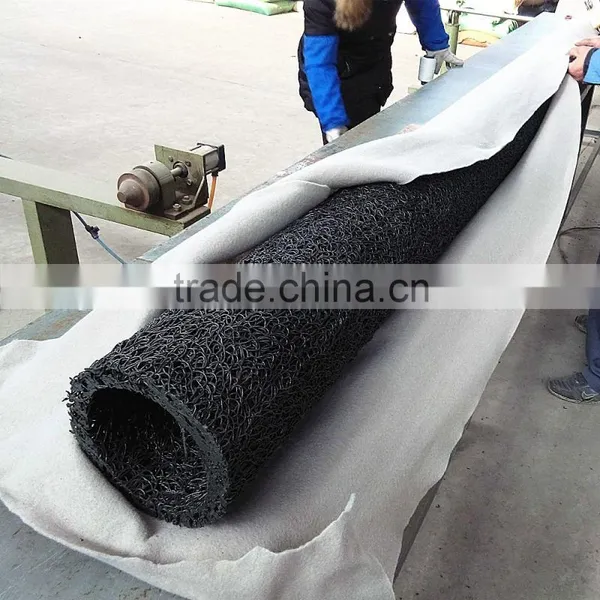

Geocomposite Drain Pipe is made of plastic core and outer filtering cloth. In the state of hot melting, it is formed into three-D network structure. It has two shapes: rectangle and round. This kind of pipe has some advantages: good drainage, high pressure resistance, light weight, so it is very popular in some projects.
Application of Geocomposite Drain Pipe:
1) Highway and roadway subgrade
2) Retaining wall
3) Landfill
4) Roof garden
5) Building foundation
6) Underground irrigation
Technical Data
Art No. |
PLD0201 |
PLD0202 |
PLD0203 |
PLD0204 |
PLD0205 |
PLD0206 |
PLD0207 |
PLD0208 |
PLD0209 |
|
Item |
Square shape |
Circular shape |
||||||||
Type |
YA7030 |
YA1435 |
YA1550 |
Y1235 |
YB60 |
YB80 |
YB100 |
YB150 |
YB200 |
|
Outer Size(mm)≥ |
70x30 |
140x35 |
150x50 |
120x35 |
φ60 |
φ80 |
φ100 |
φ150 |
φ200 |
|
Cannular Size≥ |
40x10 |
40x10x2 |
40x20x2 |
40x10x2 |
φ25 |
φ45 |
φ55 |
φ80 |
φ120 |
|
Weight≥ |
350 |
650 |
750 |
600 |
400 |
750 |
1000 |
1800 |
2900 |
|
Gap rate≥ |
82 |
82 |
85 |
82 |
82 |
82 |
84 |
85 |
85 |
|
|
Pressure Resistance |
Flat rate 5% |
60 |
82 |
50 |
70 |
80 |
85 |
80 |
40 |
50 |
|
Flat rate 10% |
110 |
120 |
70 |
110 |
160 |
170 |
140 |
70 |
70 |
|
|
Flat rate 15% |
150 |
160 |
125 |
130 |
200 |
220 |
180 |
100 |
90 |
|
|
Flat rate 20% |
190 |
190 |
160 |
180 |
250 |
280 |
220 |
125 |
||
