Specifications
Fertilizer granular machine,Fertilizer granulating machine1.Final pellet beautiful apperance
2.Dia of pellet freely adjustabl
Fertilizer granular machine
Fertilizer granulating machine, Fertilizer making machine
Chicken manure after process of disc pelletizer,the final pellet with beautiful apperance and good shape.
Pan pelletizer is one important fertilizer machinery during the fertilizer processing , whole fertilizer lines can be designed according to your special need.
Application of pan pelletizer:
It is one of common equipments in compound fertilizer industry. Generally, it is applicable to smaller scale fertilizer production of medium and low concentration. The slope degree of its pan can be adjusted from 40 degree to 55 degree.
Advantages of pan pelletizer:
The machines has the advantages of high granulating rate, homogeneous grain, high strength, easy to operate, convenient maintenance.
Working Principle:
The pan revolves at a certain angle with the horizontal plane driven by the motor through reducer. The powder will rise along with the revolving pan under the friction between the powder and the pan, on the other hand, the powder will fall down under the function of its gravity. At the same time, the powder is to the pan edge because of the centrifugal force. The powder material rolls in a certain trace under the function of these three forces. It gradually becomes the required size, then overflows by the pan edge.
Technical parameters:
Model |
Pan diameter |
Pan height |
Rotating speed |
Obliquity |
Power |
Capacity |
ZL25 |
2.5m |
380mm |
13.5 |
35°-50°
|
5.5kw |
1-2.5t/h |
ZL28 |
2.8m |
400mm |
13 |
35°-50° |
7.5kw |
2-3t/h |
ZL30 |
3.0m |
420mm |
12.5 |
35°-50° |
11kw |
3-4t/h |
ZL32 |
3.2m |
450mm |
12.5 |
40°-55° |
15kw |
4-5t/h |
ZL35 |
3.5m |
460mm |
12 |
40°-55° |
18.5kw |
5-6t/h |
ZL36 |
3.6m |
460mm |
12 |
40°-60° |
18.5kw |
6-8t/h |
Pictures of the final pellet:

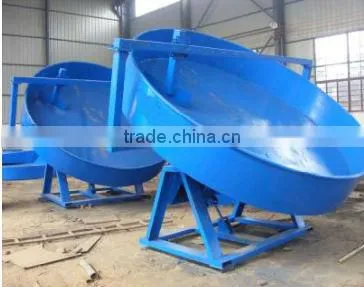

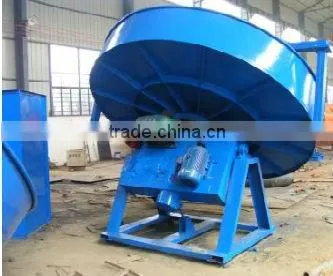

More pictures of Disc Granulating machine:
