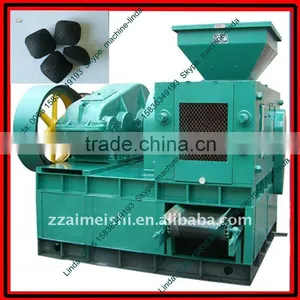

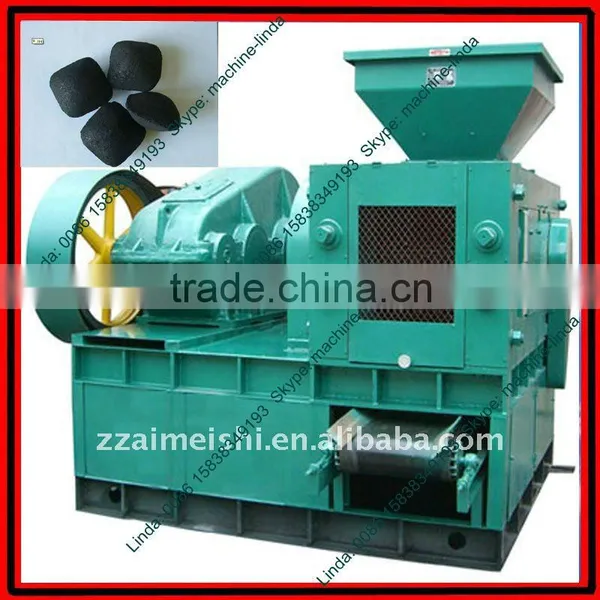

Charcoal Pressing Machine/ Charcoal ball press machine
Introduction of the Charcoal ball press machine:
Charcoal ball press is specially used for compressing the pulverized coal, iron powder, coking coal, aluminum powder, scrap iron and tin oxide, carbon powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke, waste residue etc.It is widely used in refractories, power plant, metallurgy, chemical, energy, transportation, heating, etc.

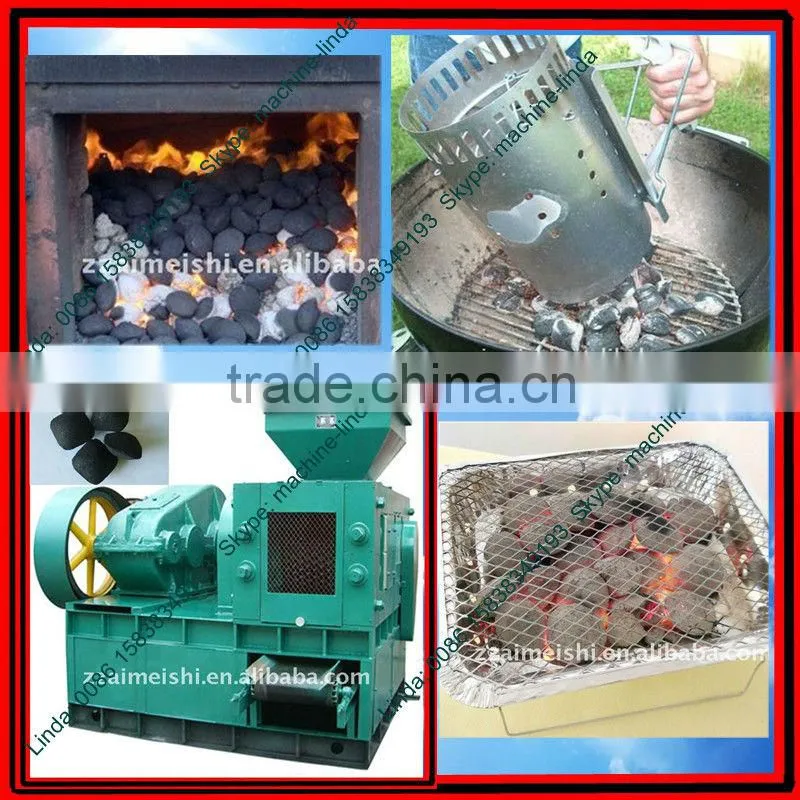

The final products are environmental protection,smokeless,non-toxic,no peculiar smell, easy to transport,applicable to the outdoor or indoor barbecue with ventilation.
Features of the Charcoal ball press machine:
high pressure, high molding rate, high output, easy operation, evenly distributed heat and stable quality.
Working principle of the Charcoal ball press machine:
Charcoal ball briquetting press will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
Charcoal ball press Technical Parameters:
Model |
Diameter of roller sheet (mm) |
Output (t/h) |
Motor Power (kw) |
Weight (kg) |
BPM-290 |
290 |
1-3 |
5.5 |
1300 |
BPM-360 |
360 |
4-6 |
7.5 |
1850 |
BPM-430 |
430 |
6-8 |
11 |
2300 |
BPM-450 |
450 |
8 |
15 |
3000 |
BPM-500 |
500 |
8-10 |
18 |
4500 |
BPM-650 |
650 |
12-15 |
25-30 |
5000 |
BPM-800 |
800 |
15-18 |
30 |
5300 |
BPM-1000 |
1000 |
20-25 |
55 |
6900 |
