Help CenterPetroleum Closed Cup Flash Point Pesky-Martens Auto Testing Machine
Related Products
-
Petroleum Products (pensky-martens Closed Cup Methods) GB/T261 ASTM D93 ISO 2719 Flash Point Test MethodsUS$ 100 - 950MOQ: 1 Set -
Rapid Low Temperature Closed Cup Flash Point Tester InstrumentUS$ 1,000 - 10,000MOQ: 1 Set
-
FDT-0234 Rapid Low Temperature Closed Cup Flash Point TesterUS$ 1,000 - 10,000MOQ: 1 Set
-
Micro Closed Cup Flash Point Tester AutomaticUS$ 100 - 11,000MOQ: 1 Set
-
FDT-0281 Micro Closed Cup Flash Point TesterUS$ 100 - 11,000MOQ: 1 Set
GB/T3536-2008 ASTM D93,ISO259
china manufacture for Petroleum Test Equipment Petroleum Test InstrumentsaaOil Test Centrifuges

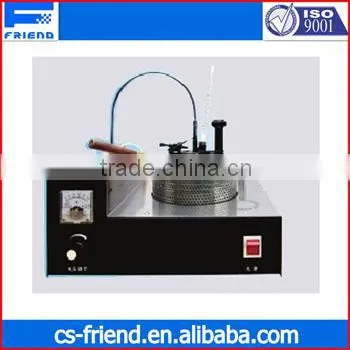

FDT-0201 Pesky-Martens Closed Cup flash point tester Application range
It fully conforms to the GB/T261 ASTM D93 ISO 2719 IP34 Test Methods for closed flash point tester of Petroleum Products (Pensky-martens closed cup Methods), Test Method For flash point determinations of fuels, lubricating oils, liquids containing suspended solids and liquids that tend to form a surface film during testing. Features and Benefits • Conforms to ASTM D93 and related specifications • Simple automation routine for easy operation
Features
1, with the operating software prompts;
2, with the experimental date, test time parameter prompts;
3, automatic correction of atmospheric pressure and calculated correction values;
4 differential detection, automatic correction system deviation;
5, opening the lid, ignition, detection, print test data computer is done automatically;
6, electronic ignition, the gas flame, forced air cooling.
7, The innovative use of the furnace automatically tilt system, the experiment after the furnace cooling rate faster, greatly shortened several times the time interval between experiments
Specifications
1 Power supply: AC 220V ± 10%, 50Hz.
2, Heating device: heating power continuously adjustable from 0 ~ 600W.
3, sample Heating rate: 1 ~ 12 °C/ min, controllable adjustable.
4, electric mixing device: 90 ~ 120 rpm / min, for the test procedure A.
5, 250 ± 10 rev / min, for the test procedure B.
6, Standard Oil Cup: diameter: 50.7 ~ 50.8 mm.
Depth: 55.7 ~ 56.0 mm.
Test oil capacity groove depth: 33.9 ~ 34.3 mm.
Test oil capacity: approximately 70 ml.
7, ignition device: ignition sources: gas (or other civil combustible gas, the same below). Ignition device diameter: 0.8 mm.
8, Thermometer: rod mercury Thermometer, in line with GB / T 261-2008 standard.
Measuring range -5 ~ 110 °C, dividing 0.5 °C.
Measuring range 20 ~ 150 °C, dividing 1.0 °C.
Measuring range 90 ~ 370 °C, division 2 °C.
9, ambient temperature: 35 °C.
10, Relative humidity: 85%.
11, Power consumption: less than 650W.”
Packaging Details: Standard export packing
Delivery Detail: within 10 days
1,warranty period, scope, and warranty conditions
" one year warranty, Product maintenance, software upgrades, installation, Training operators "
2,Speed problem solving
Get a phone call within 2 hours to give back
3,Devices with training, mentoring
Training schedule
NO |
Training Content |
Days |
place |
Note |
|||
|
Title |
Number |
||||||
1 |
Training of the operating system |
2 |
engineer |
1 |
scene
|
|
|
2 |
Instrument training : system use, test procedures, production of the report
|
2 |
engineer |
1 |
scene
|
|
|
3 |
Introduces the details of the principle and design of software system, system hardware components, external device interface, System maintenance and general Fault Diagnosis and repair
|
2 |
engineer |
1 |
scene
|
|
|
4 |
Environmental equipment room requirements and maintenance, basic knowledge of computer hardware, instrument internal structure and external interface of the host, computer hardware and system software maintenance and general troubleshooting
|
2 |
engineer |
1 |
scene
|
|
|
Other after-sales service commitment (installation, regular inspection etc. )
During use of the product to send personnel to visit from time to time, to understand the use of equipment, and stored in user profiles
5,
Service Contacts
Contact: Jiang Haihua
Tel :13974982773
other preferential terms
Each year held user classes in Changsha by experienced technical engineers. To provide users detailed training instrument works, methods of operation and routine maintenance and repairs.
Provide instruments easily worn parts
