Specifications
Evaporation Loss/Valatility collection of lubricating oilDETERMINATION OF EVAPORATION LOSS OF
LUBRICATING OILS

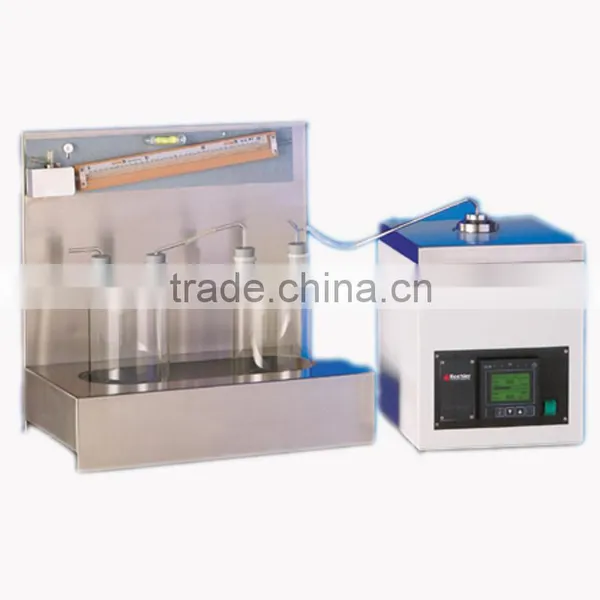

Noack Evaporation Loss Apparatus
Application range
Lubricating oil evaporation loss oximeter applicable standards: ASTM D 5800 – required for ILSAC GF-3, GF-4; API ‘SL’,SM’ specifications for modern engine oils SH/T0059 65g lubricating oil is mounted in an evaporator, andheated to 250 ° C, maintained for 60 minutes.Evaporated with a vacuum pump oil vapors with The air stream to carry out, and the tendency of The evaporation loss of The lubricating oil was measured.
Features
1, The lubricant evaporation loss tester using imported thermostat temperature control (Omron), High precision temperature control, low failure rate
2,Evaporation Loss of Lubricating analyzer imported digital pressure gauge with zero knob
3, The lubricant evaporation loss tester timing system when prompted alarm
4,Evaporation Loss of Lubricating meter heated metal bath to avoid The disadvantage of traditional water bath heated volatile need replenishment
5, Lubricant evaporation loss tester adopts self-developed vacuum system, no noise
6,Digital RS232 output forrecording of vacuum andtemperature
7, Simple to use and easy to clean
Specifications
1, Power: AC220V ± 10 50Hz
2, Input power: 1.4k VA
3,Ambient temperature: room temperature ~ +35 °C
4, The output range: 0 ~ 14KVA
5 ,Temperature Accuracy: metal bath: 250 ± 0.5 °C
6,Timing accuracy: 3600S ± 0.1S
7, Temperature control instrumentation: Smart program temperature control device
8,Heating time: about 60nin
9, Pressure gauge: 20mn ± 0.2mm water column
10, sensors: Ptl00
