Specifications
1.CNC Glass Working Center2.Stationary system
3.High processing speed

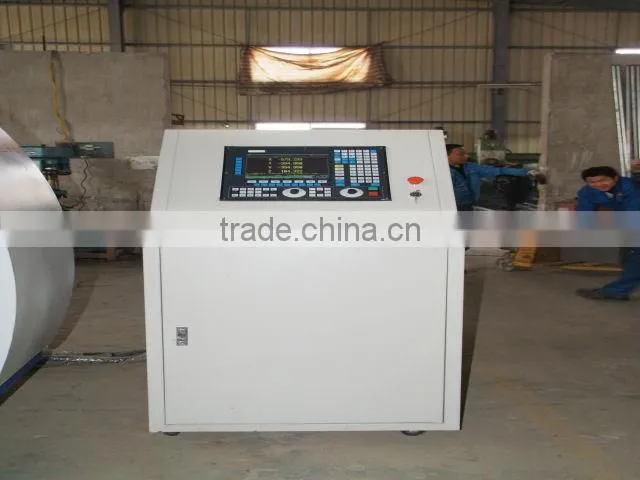

4.Computer control CNC system
5.CE certificate

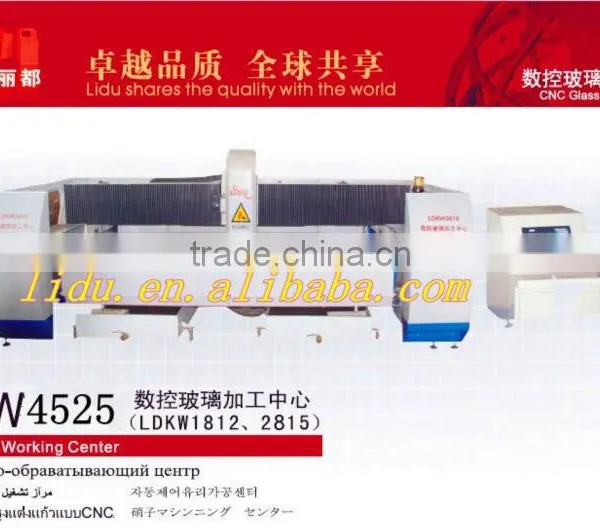

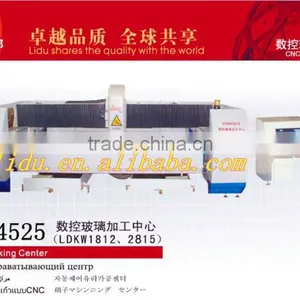

CNC Glass Working Center/ LDKW4525
Characteristics:

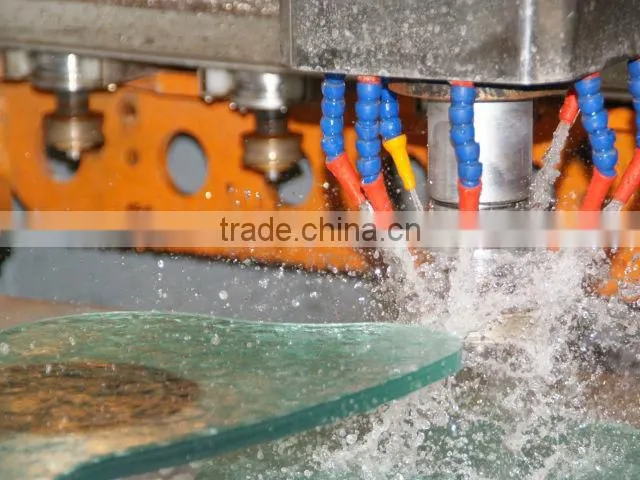

This machine adopts CNC system to control axis X, Y, Z and the main axis of the engraving machine. There is automatic control on lubrication, vacuum, hydraulic pressure, and water supply, also, it has the function of protection and alarm. It is widely used in grinding, cutting, engraving, drilling and polishing glass and mirror.
The whole procedure from pattern design to processing is controlled by computer. It can equip tool library and tool changing system according to requirements. Its advantages are: stationary system, high processing speed and low price.
Technology parameters:
Model |
LDKW4525 |
Table Size(mm) |
4500×2500 |
Stroke of Axis x,y,z(mm) |
4500×2500×250 |
Allocating Accuracy(X,Y,Z) |
0.01×0.02×0.01 |
Repeatability(mm) |
0.005×0.01×0.005 |
Velocity(Axis X.Y)(m/min) |
15-35 |
Speed of Axis Z(m/min) |
30 |
Rotating Speed of Main Spindle Speed(rpm) |
0-9000 |
Main Spindle Power(KW) |
7.5 |
Glass Thickness(mm) |
2-30 |
Max.Diameter of Grinding Wheel(mm) |
160 |
Total Power (kw) |
28 |
Country of origin: China
Delivery time: Within 60 working days since the day we get payment information form our bank
Terms of Payment:
30% T/T as down payment
60% T/T when machine complete and before delivery
10% by T/T within 15 days since the day that installation is ok
