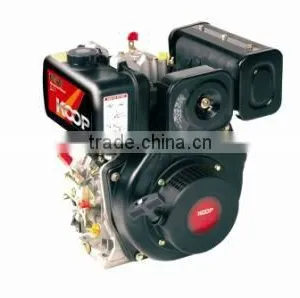

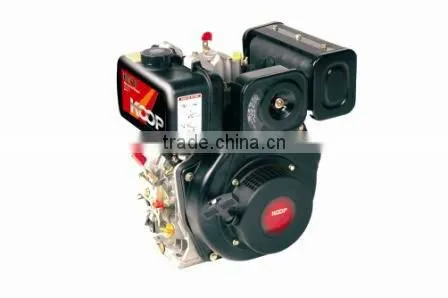

New 10hp Air Cooled Diesel Engine/Manufacture Factory-KD178FE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KOOP
Model Number:
KD178FE
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
KOOP
Model Number
KD178FE
Output Type
AC Single Phase
Speed
3000
Specifications
1.Compact and Portable Diesel Engine,2.Longer service life
3.CE Approved
4.Easy Maintance
| Model |
KD 178F /FE |
| Type |
Vertical, 1-cylinder, 4-stroke, air-cooled |
| Combustion system |
Direct injection |
| Bore× stroke [mm(in)] |
78×62 (3.07×2.44) |
| Displacement [L(cc)] |
0.296 (296) |
| Compression ratio |
20:1 |
| Rated power [KW/rpm] |
3.7/3000,4./3600 |
| Rated power [HP/rpm] |
5.0/3000,5.5/3600 |
| Rated speed (rpm) |
3000/3600 |
| Starting system |
F: Recoil starter; E: Electric starter |
| Fuel tank capacity [L(US.gal)] |
3.5 (0.92) |
| Lube capacity [L(US.gal)] |
1.1 (0.29) |
| Fuel consumbition [g(ml)/KWh] |
3000rpm: 276 (378) |
| 3600rpm: 285 (391) | |
| Fuel |
0 (summer), -10 (winter) diesel oil |
| Lube |
SAE10W30 (above CC grade) |
| Overall dimension [mm(in)](L×W×H) |
400×420×450 (15.75×16.54×17.72) |
| Net weight [kg(lbs)] |
Recoil starter type: 33 (72.6) |
| Electric starter type: 38 (83.6) | |
| Rotation direction (view from flywheel) |
Clockwise |
