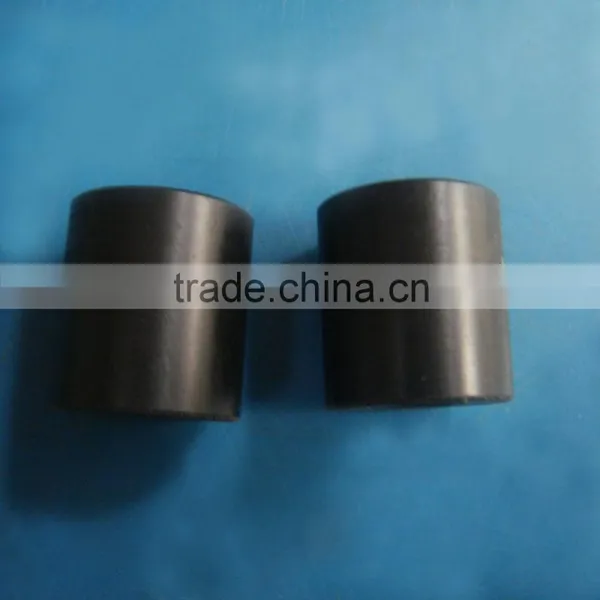

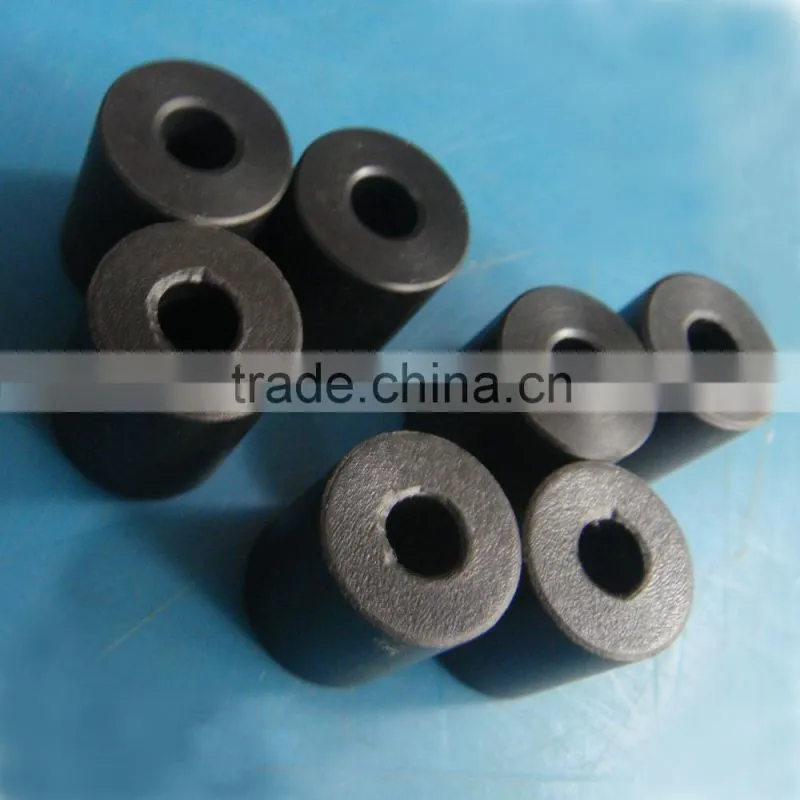

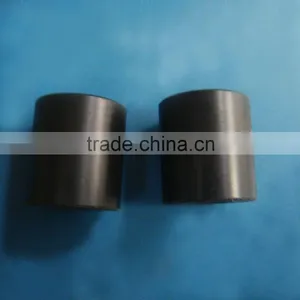

Factory wholesale custom made machined nylon pa66 sleeve plastic pipe sleeves
Material analysis
plastic pipe sleeves is made from high quality nylon raw material.
Nylon is a kind of engineering plastics used in comprehensive industries,has been applied almost every industrial field.The caprolactam monomer is first melted, and added catalyst, then poured it inside moulds at atmosphere pressure so as to shape in different castings, such as: rod, plate, tube.

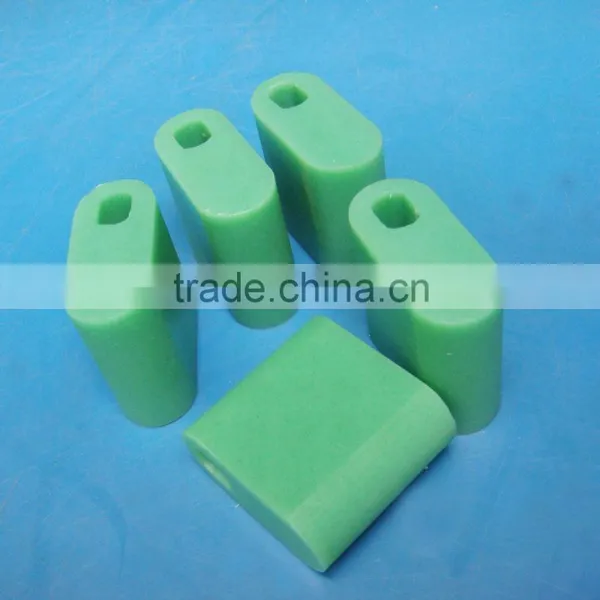

Oil Nylon (green)
Oil Nylon(green)is the new engineering plastics that developed by Guangzhou Engineering Plastics Industireis Company in the later 1980’s by importing the advanced technology from Nylacast Co., Ltd, UK, was the first authentic lubricating nylon that builds the liquid lubricant system during the processing stage, which makes its coefficient of friction is 50% lower than the general PA6 or PA66, the wear-resistance is 10 times than the general ones. Oil Nylon is specially developed for the parts of non-self-lubrication, heavy-loading and low-speed-running, which obviously resulted in a substantial increase in bearing life—5 times that of general PA6 and 25 times that of phosphor bronze! The lubricant contained within the material will not drain, adsorb or dry out and never needs replenishment. The uniform distribution of the lubricant throughout the product guarantees the constant performance of the parts over the whole service life and improvements in rate of wear, sliding frictional properties, abrasion resistance and stick slip performance, which are just a few of the benefits offered by this material. Oil Nylon has been successful in considerable enlarging the application of nylon in many industries and specifically for some un-lubricated running parts.
Other casting Nylon:
Oil Nylon + Carbon (Black)
Oil Nylon added carbon, has the very compact and crystal structure, which is better than the general casting nylon in the performance of high mechanical strength, wear-resistance, anti-aging, UV resistance and so on. It is suitable for making the bearing and other wear mechanical parts.
Oil MC901(Blue)
This improved MC Nylon, has striking blue color, which is better than general PA6/PA66 in the performance of toughness, flexibility, fatigue-resistance and so on. It is the perfect material of gear, gear bar, transmission gear and so on.
MC Nylon + MSO2(Light black)
MC Nylon added MSO2 can remain the impact-resistance and fatigue-resistance of casting nylon, as well as it can improve the loading capacity and wear-resistance. It has a wide application in making gear, bearing, planet gear, seal circle and so on.
Properties for your reference
Item No. |
Unit |
MC Nylon (Natural) |
Oil Nylon+Carbon (Black) |
Oil Nylon (Green) |
MC90 (Blue) |
MCNylon+MSO2(Light Black) |
Density |
g/cm3 |
1.15 |
1.15 |
1.135 |
1.15 |
1.16 |
Water absorption (23℃ in air) |
% |
1.8-2.0 |
1.8-2.0 |
2 |
2.3 |
2.4 |
Tensile strength |
MPa |
89 |
75.3 |
70 |
81 |
78 |
Tensile strain at break |
% |
29 |
22.7 |
25 |
35 |
25 |
Compressive stress (at 2%nominal strain) |
MPa |
51 |
51 |
43 |
47 |
49 |
Charpy impact strength (unnotched) |
KJ/m2 |
No brak |
No break |
≥50 |
No BK |
No break |
Charpy impact strength (notched) |
KJ/m2 |
≥5.7 |
≥6.4 |
4 |
3.5 |
3.5 |
Tensile modulus of elasticity |
MPa |
3190 |
3130 |
3000 |
3200 |
3300 |
Ball indentation hardness |
N/mm2 |
164 |
150 |
145 |
160 |
160 |
Rockwell hardness |
- |
M88 |
M87 |
M82 |
M85 |
M84 |
small plastic ring
Advantages
1.International leading technical supports,experienced professional engineer team
2.Quality assurance:ISO9001,SGS,RoHS,Testing Reports
3.ODM & OEM service,any size and shape is available
4.Various plastic material:uhmw-pe,nylon,pom,peek,pps,pei,pvc,teflon,pai,ect
5.Rich import and export experience
6.Outstanding performance:anti-aging,wear resistance,noise absorption,self lubricant,ect
Similar plastic pipe sleeves
Applications
1.Construction:crane
2.Agriculture machine
3.Vehicle:motercycle,three-wheel motor,car,bus
4.Supermarket:elevator,lifter
If you are interested in our plastic pipe sleeves ,please E-mail me or visit our official website to know more( ).
Why choose us?
1.Rich industry experience since 1988.
2.Wide arrange product line, including plastics sheet/rod/parts/accessories: MC NYLON, OIL NYLON, POM, UHMW-PE, PU, PETP, PC, PTFE, PVDF, PPS, PEEK, PAI, PI, PBI ect.
3.Manufacture, design and processing service as per your demand.
4.Professional R&D team,welcome to ODM & OEM
5.Professional after sale team
Purchase order flow
1.Inquiry or send your drawing to us
2.Quotation
3.Confirm order detail
4.Produce sample
5.Confirm sample
6.Produce mass item
7.Deliver items
8.After sale service
