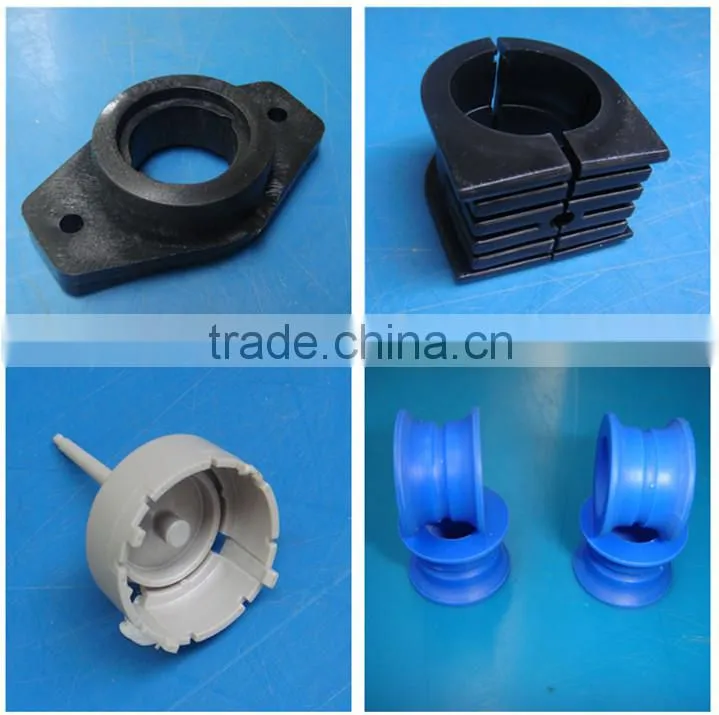

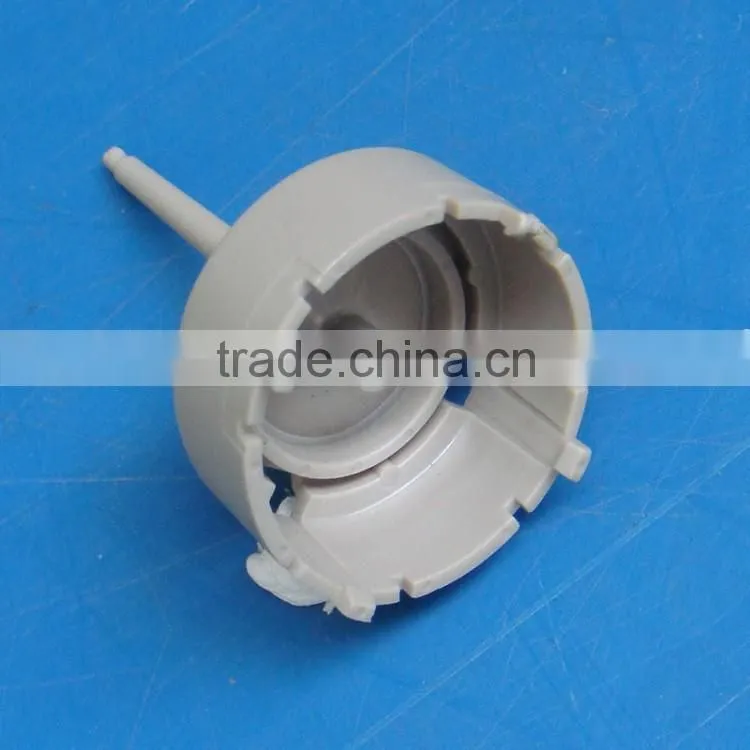

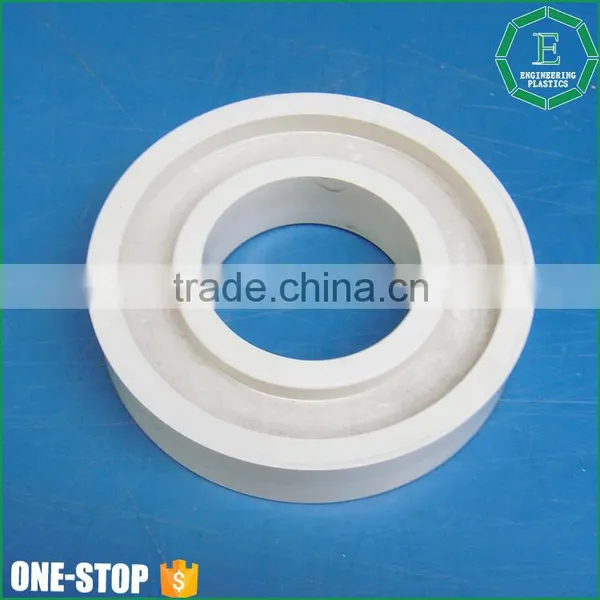

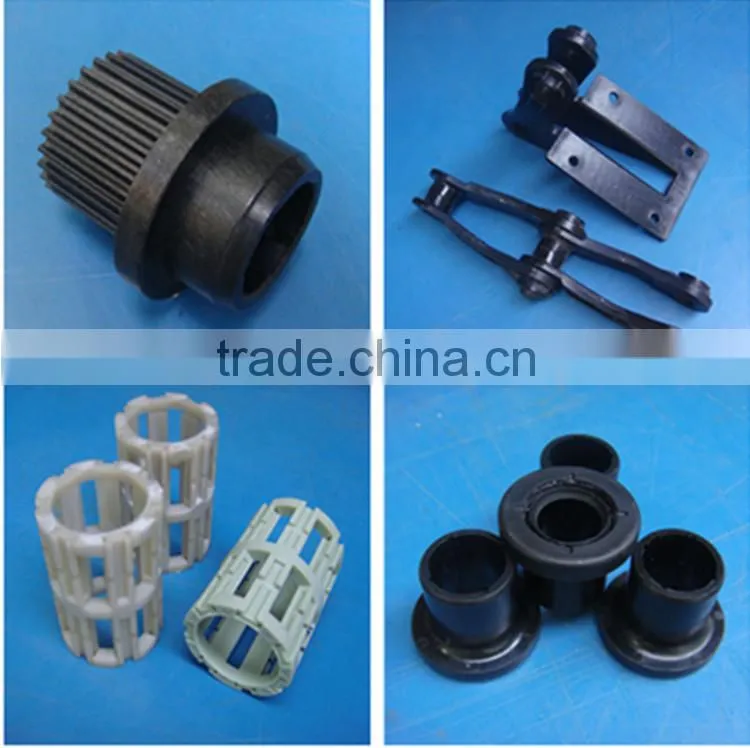

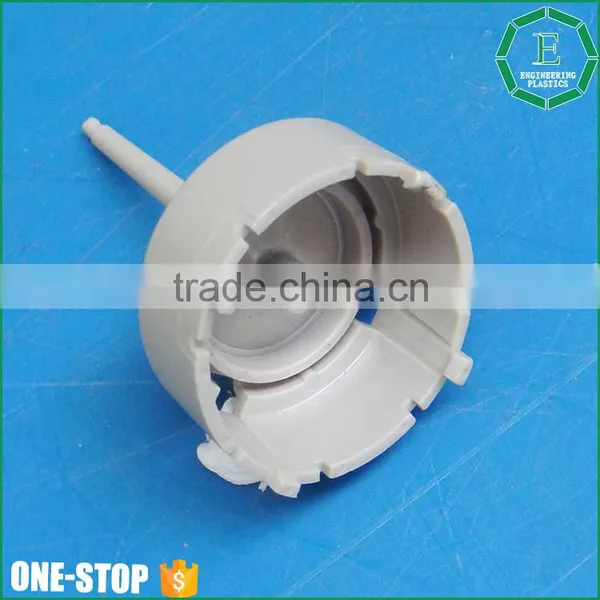

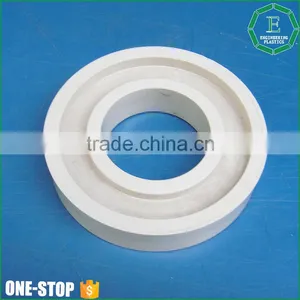

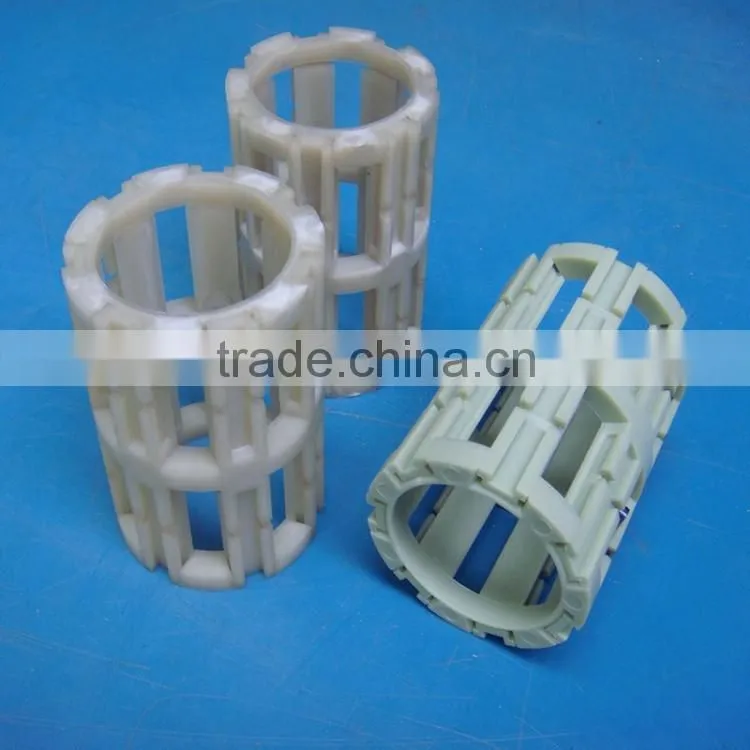

Chinese plastic mould products factory custom plastic peek injection moulding machine spare parts as drawing
PEEK is a kind of heat-resistant, high performance thermoplastic special engineering plastics. It has good mechanical properties and chemical resistance, abrasion resistance, and hydrolysis resistance properties etc.; it has a light proportion and self-lubricating properties.
The outstanding performance of PEEK material mainly shows in the following aspects:
1. Heat-resistance
2. Mechanical Properties
3. Self-lubricating
4. Chemical Resistance (corrosion resistance)
5. Flame Retardant
6. Stripping Resistance
7. Fatigue Resistance
8. Radiation Resistance
9. Hydrolysis Resistance
| Name | Injection moulding spare parts |
| Material | PU/HDPE/ UHMW-PE/MC Nylon/PA66/POM/ Teflon/ PVDF/ PPS/PEEK/PSU etc. As your like. |
| Color | Natural,Black,Yellow,Red,ect. Customized, any color is ok |
| Advantage |
One stop procurement |
| Diameter |
1-200mm,or customized |
| Density | 1.2g/cm2 |
| Size | Customized as your drawing |
| Price | Factory price offered |
| OEM/ODM | Customers provide design or photo or we create design according to customers' requirements. |
| Certification | ISO9001,SGS,FDA,RoHS,Test Report,ect. |
| Free Sample | Yes |
| Shape | sheet, rod, tube, gear, pulley, guide rail, and so on |
| Leading Time | 2 days for sample; 7 days for production. |
| Payment | PayPal, Escrow, Western union, Money Gram, T/T and cash payment. |
| Packing |
Plastic bags,Cartons,Wodden case,Pallet,Container,ect. |
| Other |
24 hours instant and comfortable customer service. Shipping status notification during delivery. Regular notification of new styles & hot selling styles. |
Main Properties of PEEK
Property |
Item No. |
Unit |
PEEK-1000 |
PEEK-CA30 |
PEEK-GF30 |
|
Mechanical Properties |
1 |
Density |
g/cm3 |
1.31 |
1.41 |
1.51 |
2 |
Water absorption(23℃ in air) |
% |
0.20 |
0.14 |
0.14 |
|
3 |
Tensile strength |
MPa |
110 |
130 |
90 |
|
4 |
Tensile strain at break |
% |
20 |
5 |
5 |
|
5 |
Compressive stress(at 2%nominal strain) |
MPa |
57 |
97 |
81 |
|
6 |
Charpy impact strength (unnotched) |
KJ/m2 |
No break |
35 |
35 |
|
7 |
Charpy impact strength (notched) |
KJ/m2 |
3.5 |
4 |
4 |
|
8 |
Tensile modulus of elasticity |
MPa |
4400 |
7700 |
6300 |
|
9 |
Ball indentation hardness |
N/mm2 |
230 |
325 |
270 |
|
|
10 |
Rockwell hardness |
- |
M105 |
M102 |
M99 |
