Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Hotselling and Quality Spring Loaded Connector PoGo Pin=made in China Promotion

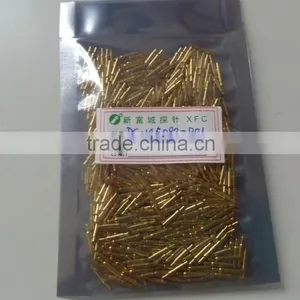

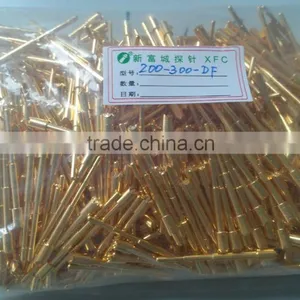

Hotselling and Quality Spring Loaded Connector PoGo Pin=made in China Promotion
US$ 0.12 - 0.12
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
XFCDZ
Model Number:
XFC-1233
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hotselling Gold Plate Spring Loaded Pogo PinUS$ 0.12 - 0.12MOQ: 1000 Pieces -
--German Quality, China Price-- Battery Contact Spring Pogo Pin for Charger With Real Gold Plated -- Trade Assurance--US$ 0.25 - 1MOQ: 1000 Pieces
-
Push Pogo Pin and Plunger Pogo Pin With Spring Loaded and ContactedUS$ 0.08 - 0.15MOQ: 10000 Pieces
-
2015 Hot Selling Professional Brass Spring Pogo PinUS$ 0.15 - 0.15MOQ: 1000 Pieces
-
10-20A Pogo Pin=high Current Spring Contacts,PCB Contact PinUS$ 0.15 - 0.15MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
XFCDZ
Model Number
XFC-1233
Type
Other
Application
PCB
Gender
Female
hotselling and quality Spring Loaded Connector PoGo Pin
| Item Informations : | ||||
| Name: | Spring Loaded Connector Pogo Pin | |||
| Item#: | PG-P-0001 | |||
| Surface Finished: | gold plated | |||
| Specifications: | 2.0mm x L5.3mm | |||
| Plating Thickness: | 3~4u" | |||
| Tolerance: | ±0.1mm | |||
| Standard: | RoHs | |||
| Material: | ||||
| Part | Material | |||
| Plunger | Brass | Beryllium Copper | Phosphor Bronze | Tool Steel [SK4] |
| Spring | Stainless Steel | Music Wire with gold plated | Beryllium copper | |
| Barrel | Brass | Beryllium Copper | Phosphor Bronze | Nickel Silver |
| Housing&Cap | HTN | LCP | PBT | |
| Reel | PET | PS | ||
| Item | Performance | Note | ||
| Rated Current | 1A or 2A | 1-2A Refer to the Table | ||
| Rated Voltage | AC/DC 12V | |||
| Contact Resistance | 50mΩMax. (stillness) (At factory shipments) |
100mΩ after 100 times operation (After Durability test at PRECI regulation) | ||
| Ambient Temp | -40° - +85° | |||
| Pin Force | 9.8N on a Pin from any direction | |||
| *Pin Holding Strength Pin | 4.9N on a Pin from axis direction | |||
| Cycle Durability | 20,000 times | Working Height | ||
| Mechanical Shock Durability | 490m/s2 | |||
| Soldering Temp | 350° 3sec | |||
