Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Spring Loaded Connector Pogo Pin ,electrical Contact Pins Pogo Pin
Spring Loaded Connector Pogo Pin ,electrical Contact Pins Pogo Pin
US$ 1.00 - 1.00
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
XFC
Model Number:
XFC-3322
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pogo Pin and Pogo Pin Connector/ Factory Custom Pogo Pin ConnectorUS$ 0.065 - 0.15MOQ: 10000 Pieces -
Gold Plating 2pin Connector,ic Test SocketUS$ 0.08 - 0.3MOQ: 100 Pieces
-
China Shenzhen Xinfucheng Electronic co Ltd Supplier Spring Losded Pogo Test 2 4 6 8 10 Pin ConnectorUS$ 0.025 - 1MOQ: 1000 Pieces
-
Xinfucheng Electrical Power and Stainless Steel & Battery Spring Loaded Pogo PinUS$ 0.15 - 0.19MOQ: 5000 Pieces
-
Pogo Pin ,Spring Loaded Pogo Pin ,Probe Pogo Pin,pad ConnectorUS$ 0.15 - 0.18MOQ: 5000 Pieces
Place of Origin
Guangdong, China
Brand Name
XFC
Model Number
XFC-3322
Type
USB
Application
Other, Audio & Video
Gender
Female

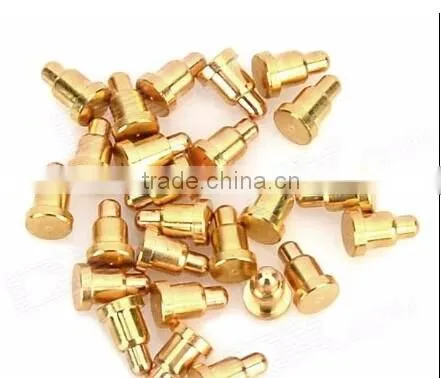

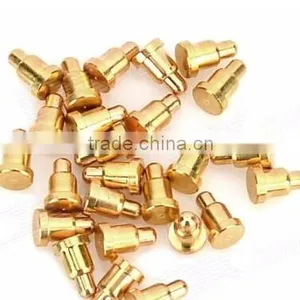

Spring loaded connector pogo pin ,electrical contact pins pogo pin test probe pin
| Material &Plating: |
| Plunger: Brass,plating min 0.25um Au over Min 1.4um Ni. |
| Barrel:Brass,plating Min 0.1um Au over 1.4um Ni. |
| Spring:SUS or SWP |
| Plastic is high temperature resistant material |
| Plating:Gold,Silver,Palladium-Nickel |
| Parameters: |
| Rated Current:2.0A |
| Rated Voltage:12V |
| Life:exceed 50,000 recycling |
| Working Temp: From -25℃ to +75℃ 90% R.H,Max From -25℃ to +75℃ 90% R.H,Max |
| Storage Temp.:From -40℃ to +85℃ 90% R.H,Max |
| Electric Perfermance: |
| Contact resistance:30mohm Max.at working height |
|
Insulation resistance:500V DC with housing insulation or insulation in one min>100MΩ in AC condition |
| Voltage resistance:the max electricity leakage |
| Mechanical: |
| Contact normal force:operating point is more than 60gf |
| Retention:0.3kgf/pin |
| Durability:50000 times in spring force |
| Environment: |
| Humidity range:10% RH to 90% RH |
| Salt spray:48H |
| Above specs are our standards,it can be customized by your own requests |
Product Name:3.5mm Spring pin ,POGO PIN,spring loaded pogo pin for gold plating Certificate: ISO9001:2008,TS16949 Material:brass Specification:RJX-0245 Finish Cold heading and CNC Packing: carton and pallet
according to your requirment Transaction:L/C,T/T ,Paypal
Payment Term: FOB,CIF,CFR.
Delivery time:7-10 workdays.
Production capacity: 10t/month.
