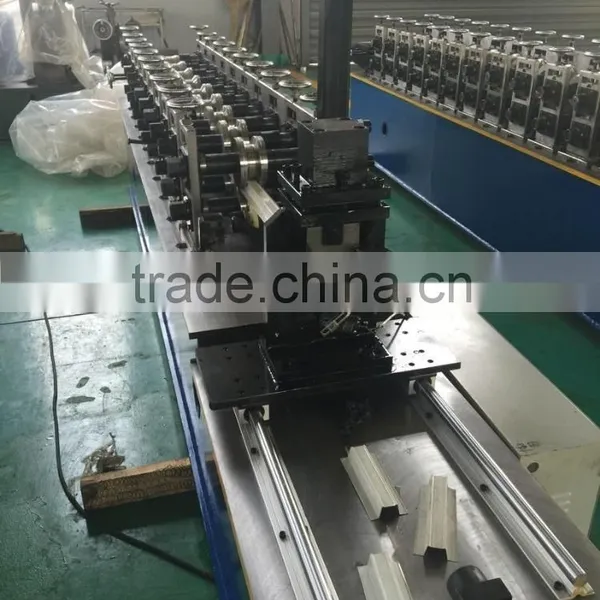

Metal And Galvanized Furring Roll Forming Machine
Specifications
Tower structure for main body.
CNC rolling the rollers.
Poilishing the rollers surface shinning.
PLC control with automatic
Zhongtuo Metal And Galvanized Furring Roll Forming Machine offer builders a competitive alternative to traditional wood trusses.This machine provides significant improvements over other light gauge steel trusses currently available. Flexibility and design advantages allow architects, engineers, contractors and owners' exceptional versatility and performance characteristics not available with any other type of truss material.Our machine could update with the fashio for providing new design increases material efficiency, ease of fabrication, simplicity of erection, and improved safety of material handling. Nomatter for running business or for big construction, this machine will be good helper for you.

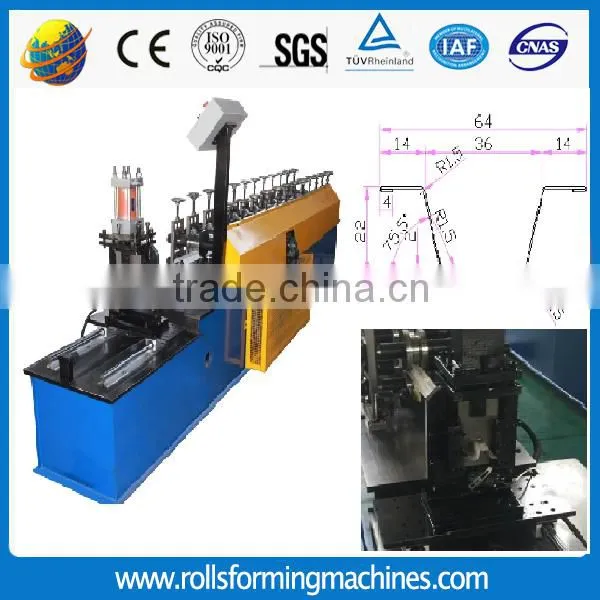

Our machine supports material thickness from 0.4-1.5mm light gauge steel truss with the full engineering technicaldata/specification. Designed and pre-engineered by experienced truss specialists using only the very latest software. Normally our machine could make truss for Indian, Australia, Egypet and other countries. The shapes of the trusss are like furring hat shape, U shape, C shape, L shape and others.

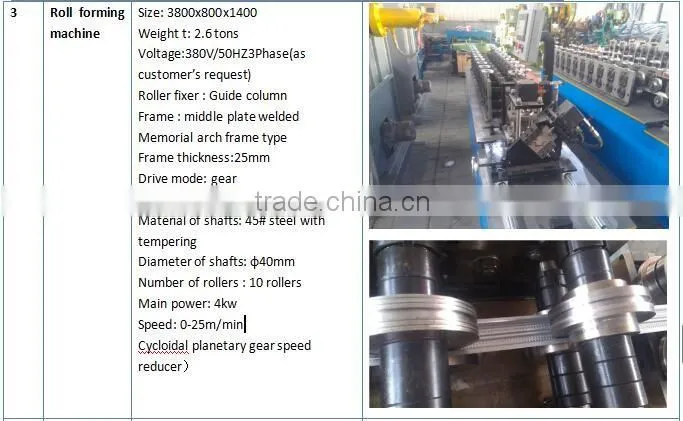

Basic information of | ||
Description |
Introduction |
Customer needs |
Working efficiency |
0-25m/min |
Adjustable |
Thickness of Material |
0.4-1.5mm |
Adjustable |
Width of material |
130mm |
Adjustable |
Control system |
PLC |
Delta |

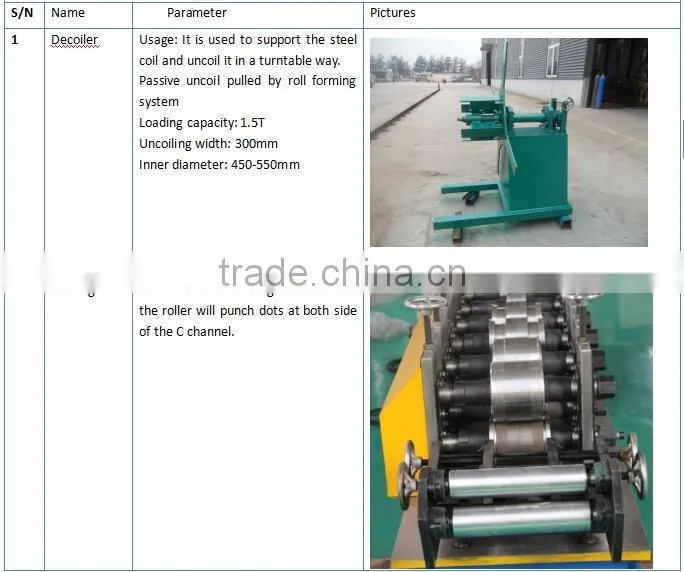

Uncoiler system |
1.5Ton |
|

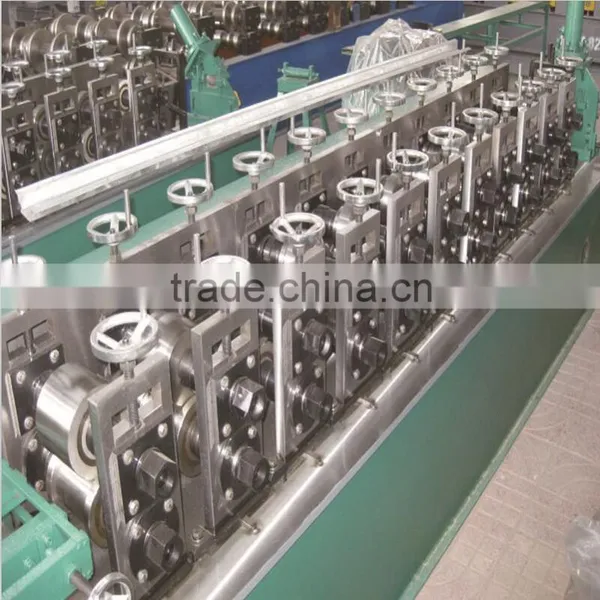

Forming by rolling |
Roll 12 rows |
|
Roller material |
GCr12MoV (SKD11) Aluminium processing after quenchin HRC58-62 °C, Chrome |
|
| ||
Shaft diameter of axle |
45#Aluminium-processing , diameter of axle=40mm |
|
|
|
|
Main part power |
5.5kw |
|

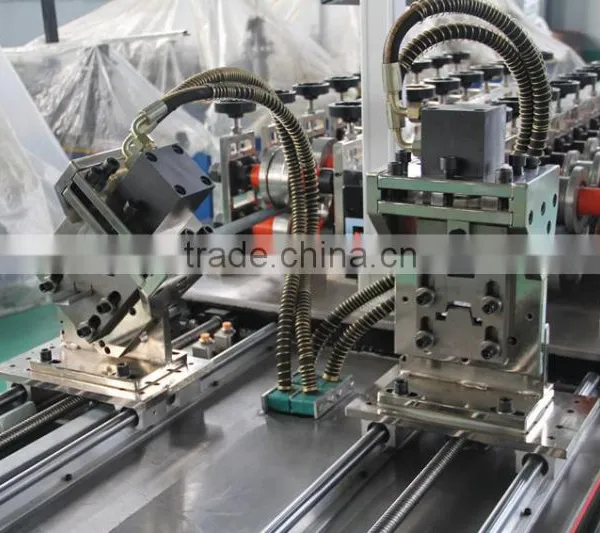

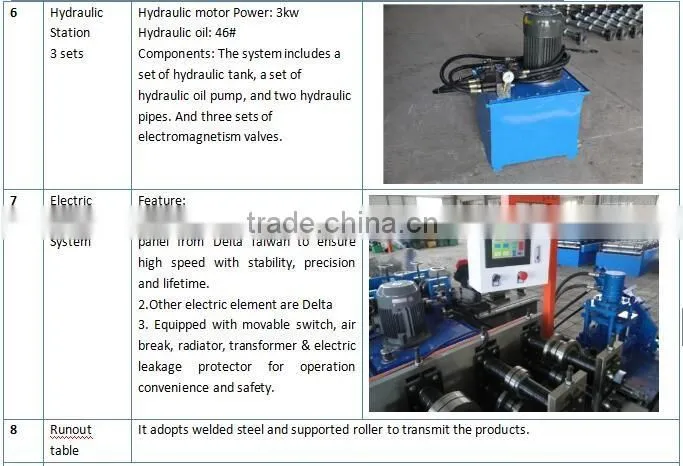

Hydraulic motor power |
3kw |
|
Hydraulic pressure |
12Mpa |
|

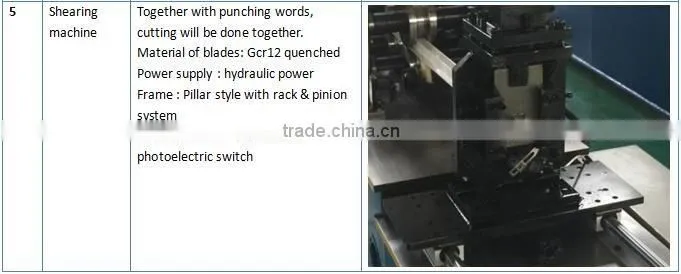

Scissor material |
Cr12Mov, herd steel HRC 58-62°C |
|
length tolerance |
±1.5mm |
|
voltage |
380V, 50HZ,3 phase |
adjustable |
Frame form |
Grant type frame |
|
Driving Method |
Gear box |
|
Color |
Customize |
|
Size |
length*Width*Height 3800*800*1400 |
|
| ||
weight |
32.6T |
|
Package |
Nude package in 1*20GP container |
|
Delivery date |
30 working days |
|

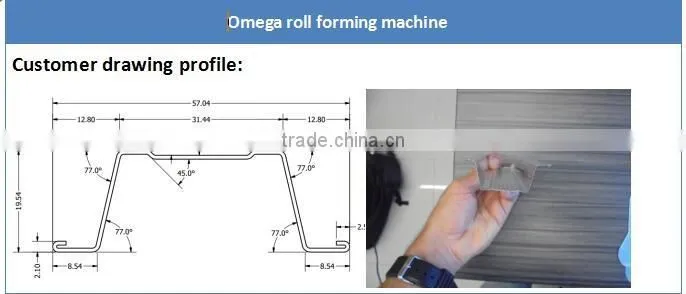

Samples of Trusss our Machine could make:

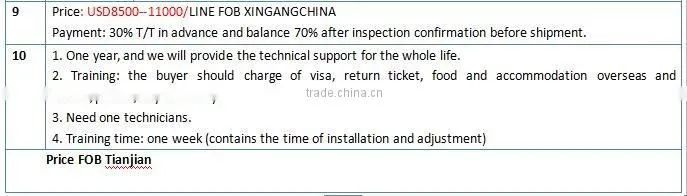

Payment Method: 30%T/T in advance and balance 70% after inspection confirmation.
Warranty 1. One year, and we will provide the Technical support for the whole life. 2. Need one technician 3. Training time: one week (contains the time of installation and adjustment)
Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building.
