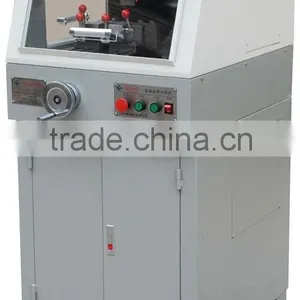

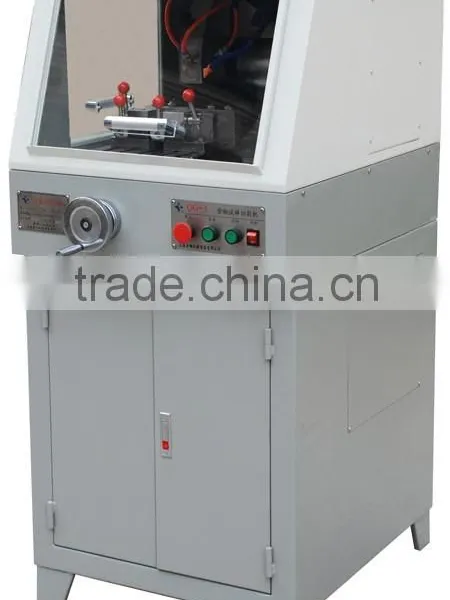

Help CenterQG-5 Metallographic Cutting Machine
Related Products
-
QG-4A Metallographic Cutting MachineUS$ 1,000 - 10,000MOQ: 1 Set -
QG-4 Metallographic Cutting MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
QG-3A Metallographic Cutting MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
QG-3 Metallographic Cutting MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
QG-2 Metallographic Cutting MachineUS$ 1,000 - 10,000MOQ: 1 Set
Description:
l QG-5 multifunctional cutting machine is mainly used for cutting irregular general metallographic sample materials such as round cylinder and polygon and protruding platforms, etc.
l This machine adopts double-shells totally closed structure and double quick clamp organization.
l It can guarantee cutting under absolutely safe status, this machine equipped with front, back board, the thickness of sample can be changed arbitrarily, and the speed of entering is controllable.
l In order to avoid the sample organization burns because of being overheated in cutting, this machine is furnished with the strong cooling system,
l and can avoid little burn of the sample surface while cutting and falling, can increase the cutting section, improve the utilization ratio of cutting emery wheel slice;
l it has convenient advantages in operation, maintenance; it is the extremely good apparatus for cutting irregular sample materials.
Technical Specification:
l Maximum Cutting Section: 100mm×120mm
l Platen Speed: 2800r/min
l Specifications of Cutting Slice: φ380×2.8×φ32
l Electromotor: Y112M-2,4KW, 380V, 50Hz
l Total Dimensions: 850×760×1400mm
l Net Weight: 380Kg
