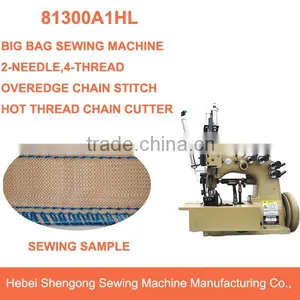

81300A1HL Safely Stitch Heat Cutter China Sewing Machine
Applications
81300A1HL Safely Stitch Heat Cutter China Sewing Machine is double needle four threads sewing machine ,it is suitable in sewing container bag ,FIBC bag ,big bag ,skip bag and other thick materials.
Features
- Safety stitch 401.502 (one double thread chain stitch and one overedge stitch);
- Maximum sewing speed up to 1,400spm;
- Maximum sewing capacity up to 19mm (3/4in.), 58 plies of paper;
- Adjustable stitch length from 6 to 13mm;
- Built-in walking foot feed system;
- Main parts apply copper alloy and high duty alloy;
- Easy maintenance semi-closed structure;
- Manual lubricating with built-in sight feed oiler;
- Built-in electro-pneumatically operated hot thread chain cutter;
- Built-in electro-pneumatically operated presser foot and upper feed dog lifter;
- Closed type rolling beating apply in every crankshaft;
- Well assembly quality, ensure the stable running and long service life;
- High level polywoven bag making machine for all sorts of material with different weights in side sewing for container bags;
- Servo motor drived;
- Special designed pedestal fitted;
- Low noise, low vibration.
Specifications
Model |
81300A1HL |
Stitch Length |
6-13mm |
Max. Sewing Speed |
1,400spm |
Max. Sewing Capacity |
19mm (3/4in.) |
Stitch Type |
Safety Stitch 401.502 |
Needle Gauge |
5mm (13/64in.) |
Overedge Stitch Width |
10mm (25/64in.) |
Total Overedge Stitch Width |
15mm (19/32in.) |
Feed Mechanism |
Walking Foot |
Lubrication |
Manual with Built-in Sight Feed Oiler |
Presser Foot Lifter |
Electro-pneumatically Operated |
Needle |
UY9853G |
Thread |
Polyester 20/6, 20/9 (2×3, 3×3) |
Net Weight(head) |
42kg |
Gross Weight(head) |
45kg |
Net Weight(with motor and pedestal) |
126kg |
Gross Weight (with motor and pedestal) |
133kg |
Dimension |
490×380×520mm |
81300A1HL Stitch Sample
81300A1HL Presser Foot

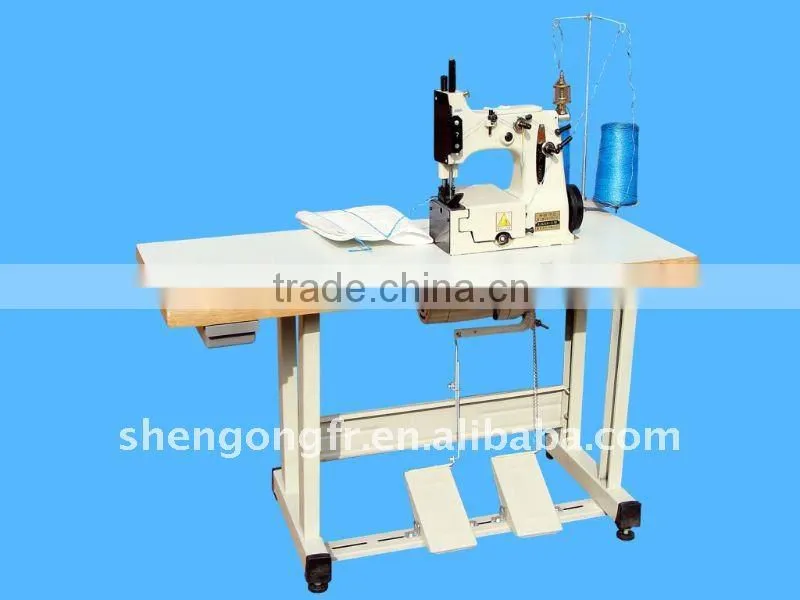

81300A1HL Sewing Machine Head ,Table And Motor
The function of the GN20-2C and GK68-2 is similar with 81300A1HL:
1.GN20-2C is single needle double threads overedge stitch sewing machine ,it is suitable in sewing PP woven bag ,container bag ,FIBC bag and other thick materials.
2.GK68-2 is single needle double threads chain stitch sewing machine, it is suitable in sewing PP woven bag ,container bag ,FIBC bag and other thick materials.
GN20-2C Sewing Machine And Sewing Sample
GK68-2 Sewing Sample
GK68-2 Sewing Machine Head ,Talbe And Motor
The service we can provide:
1.Professional technical consulting;
2.Machine operating analysis;
3.Stitch sample making;
4. Provide sewing machine working video ;
5.Maintenance and spare parts services.
FAQ:
1. Q: Do you have your own export right ?
A: Yes, we are able to export the sewing machine to any country or region
2. Q: What service you can supply?
A: Model recommendation, sample making, technical consulting, after-service support
3. Q: Could i visit your factory ?
A: Yes, at the same time you can enjoy more favorable price if buy sewing machine
4. Q: Is your machine could replace Union Special or Newlong sewing machine function?
A: Yes. Our machine could 100% replace Union Special or Newlong sewing machine function.
5. Q: Do you supply spare parts?
A: Yes, Our company produce sewing machine and spare parts by our selves and with fast lead time,best price.
6. Q: What gurantee you supply?
A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate, feed dog, etc.
