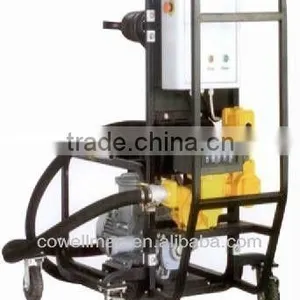

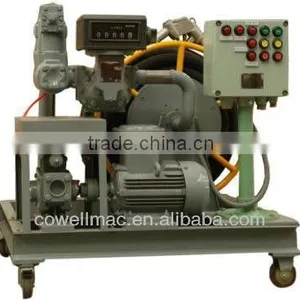

MFD Series Mobile Fuel Unit
Description
MFD series mobile fuel dispenser, containing bulk positive displacement flow-meter, vane pump & coupling drive Ex-proof Motor, Power Control Cabinet, hose & hose reels mechanical register, nozzles etc., applied in boat refuelling in marine, public transportation vehicles, big truck, trains, military vehicles, light aircraft, with advantage of high flow rate, long service life, high accuracy, convenience, easy to operate etc.
Technical Specification | |||
Model |
MFD-40 mobile fuel unit |
MFD-50 mobile fuel unit |
MFD-80 mobile fuel unit |
Flow Rate |
200L/min |
400L/min |
700L/min |
Flow meter |
M-50-1 flow meter 2" |
M-50-1 flow meter 2" |
M-80-1 flow meter 3" |
Pump |
SUB-40 vane pump |
YB-50 vane pump |
YB-80 vane pump |
Ex-proof Motor |
1.5Kw,50Hz,380V |
2.2Kw,50Hz,380V |
7.5Kw,50Hz,380V |
( 220V motor for option ) |
( 220V motor for option ) |
( 220V motor for option ) |
|
Hose |
1.5", 20m |
2", 20m |
3", 20m |
Nozzle/Hose Adaptor |
1.5" automatic nozzle ( Hose Adapter for option) |
Hose Adapter |
|
Hose Reel |
Manual Reel (Electric motor driven reel for option) |
||
Preset Function |
For option |
||
Electric Register |
For option |
||
Package Data | |||
Model |
MFD-40 |
MFD-50 |
MFD-80 |
Packaging |
1pc/ Wooden Case |
||
Net Weight |
260kgs |
270kgs |
305kgs |
Gross Weight |
290Kgs |
300kgs |
335kgs |
Size |
131×99×125cm |
131×99×125cm |
140×110×125cm |
