Home > Instruments & Meters > Optical Lens & Instrument > Optical Lens > HDPE Dome Dia.26mm Human Motion Detector Fresnel Lens

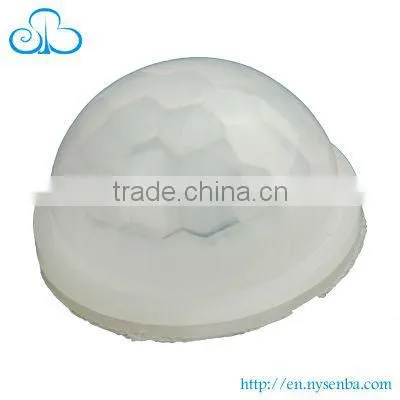

HDPE Dome Dia.26mm Human Motion Detector Fresnel Lens
US$ 0.064 - 0.19
MOQ: 3000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Senba
Model Number:
S9008
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Infrared Lens for Motion Sensor/detector D7012NegotiableMOQ: 1000 Pieces -
L8011 Human PIR Motion Sensor LensNegotiableMOQ: 1000 Pieces
-
D7011 Flat Passive Infrared Sensor/Detector LensNegotiableMOQ: 1000 Pieces
-
Motion Sensor/Detector Lens/Human Motion Sensor Lens/Fresnel LensNegotiableMOQ: 1000 Pieces
-
Motion Sensor Lens for Passive Infrared SensorUS$ 0.064 - 0.19MOQ: 3000 Pieces
Place of Origin
Guangdong, China
Brand Name
Senba
Model Number
S9008
Material
Other, High density polyethylene
Usage
Optical
Structure
Plano-convex
Shape
Other, Spherical, Dome
Specifications
Fresnel lensOverall size:26mm
Focal length: 15.5mm
Detectable distance: 8m
Viewing angle: 120degree
Cheap optical fresnel lens
Fresnel lens arrays designed for passive infrared sensor.the The optical surfaces are increases lens sensitivity for PIR SENSOR applications.
Specification:
Overall size:26mm
Lens size: 23mm
Height:17.3mm
Focal length: 15.5mm
Detectable distance: 8m
Viewing angle: 120°
Material: HDPE
Shape: Dome
Features:
Designed for passive infrared sensor applications
Well suited for compact, low profile sensors
Can be used in applications involving security, lighting controls and environmental controls
Optimized for dual element pyroelectric devices
White light immunity to reduce false triggers
UV resistant for outdoor applications
Designed for uniform sensitivity to reduce electronic gain
