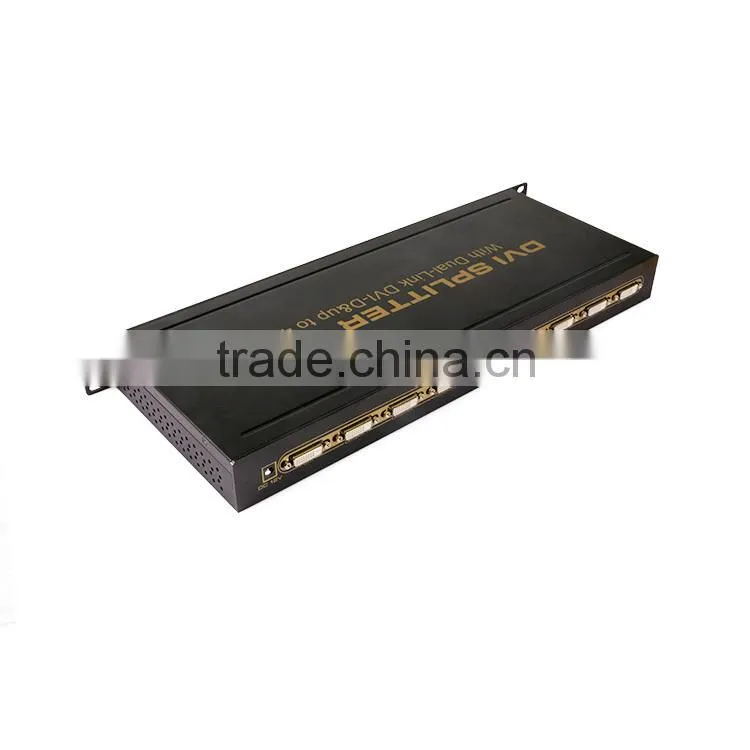

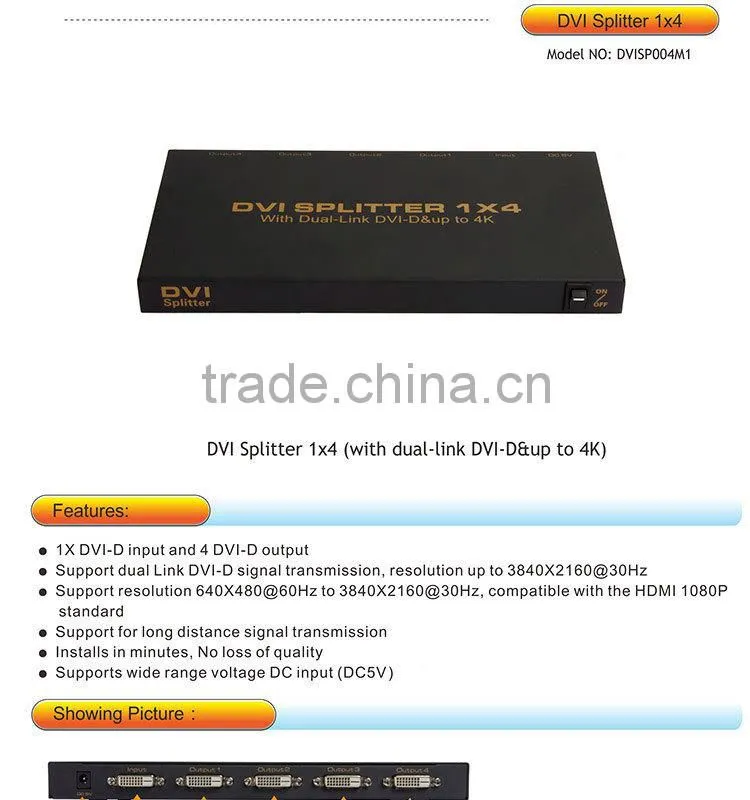

DVI SPLITTER
Dual link DVI-D & up to 4K
Model No:DVISP002M1 2 Port splitter
Model No:DVISP004M1 4 Port splitter

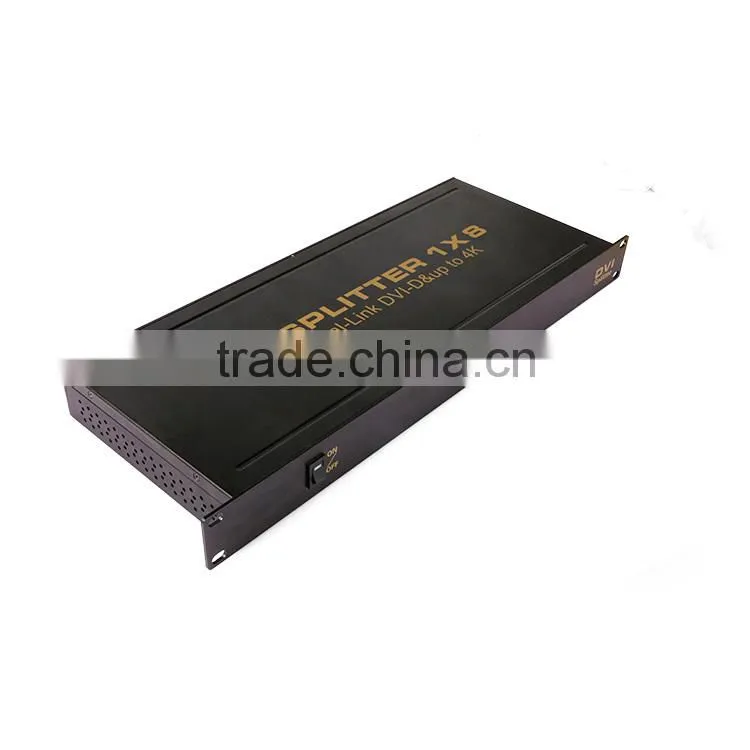

Model No:DVISP008M1 8 Port splitter
Model No:DVISP016M1 16 Port splitter
FEATURES:
l 1X DVI-D input and 2/4/8/16X DVI-D output
l Support dual Link DVI-D signal transmission, resolution up to 3840X2160@30Hz
l Support resolution 640X480@60Hz to 3840X2160@30Hz, compatible with the HDMI 1080P standard
l Support for long distance signal transmission
l Installs in minutes, No loss of quality
l Supports wide range voltage DC input (DC5V~12V)
SPECIFICATIONS:
DVI interface type ………………………….................................................................... Dual link DVI-D
Single link input/output resolution …………………………...............................up to 1920x1080@60Hz
Dual link input/output resolution …………………………..................................up to 3840x2160@30Hz
Support video color format …………………………..…..…………………….24bit/deep color 30bit,36bit
Max signal bandwidth………………………………………………………….……………………..340MHz
Max baud rate…………………….………………….………………….………………3.4Gbps Serial Link
Input/Output TMDS signal ………….……………………………….……………….0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..……………………. 5Volts p-p (TTL)
DVI input cable distance…………………………………………≤10m AWM 20276 DVI standard cable
DVI output cable distance………………………………………..≤10m AWM 20276 DVI standard cable
Max working current ………………………………………….……….…….…….0.8A/5V (DVISP002M1)
Max working current ………………………………………….……….…….….....1.2A/5V (DVISP004M1)
Max working current ………………………………………….……….…….…...1.5A/12V (DVISP008M1)
Max working current ………………………………………….……….…….…...2.5A/12V (DVISP016M1)
Power adapter …………………AC 100V~240V 50HZ/60Hz, DC5V/2A(DVISP002M1/DVISP004M1)
Power adapter ……………….AC 100V~240V 50HZ/60Hz, DC12V/3A(DVISP008M1/DVISP016M1)
Operating Temperature range ……..…………….……………………………………………. -5 to +45℃
Storage Temperature range……………………………………………………………………. -15 to +55℃
Operating Humidity range ………………………….….……….……….10 to 90%RH (No Condensation)
Storage Humidity range………………………….….……….……………5 to 95%RH (No Condensation)
Case Dimension (L x W x H) ………………………………….…………. 179x66x28mm (DVISP002M1)
Case Dimension (L x W x H) ………………………………….………….277x136x27mm (DVISP004M1)
Case Dimension (L x W x H) ………………………………….………….482x180x44mm (DVISP008M1)
Case Dimension (L x W x H) ………………………………….………….482x180x66mm (DVISP016M1)
Weight …….…………………………….………………………………………….…...370g (DVISP002M1)
Weight …….…………………………….………………………………………….…...800g (DVISP004M1)
Weight …….…………………………….………………………………………….…..1.5kg (DVISP008M1)
Weight …….…………………………….……………………………………………...1.8kg (DVISP016M1)
