Specifications
USB Docking Station with VGA /HDMI ourputSupport USB input for PC or notebook
Support Ethernet Connect function
USB Input…..Support USB2.0/3.0
Video input………... USB
Audio input………... MIC
Video output.………...................................................................................................HDMI/VGA
HDMI resolution ………….Support up to 1920x1080, same format as input
Audio output…………......................................................................... HDMI /Audio output port
Operating System Support…Windows® XP,Windows® Vista,Windows®7,and Mac OS X
Max transmission bandwidth…………………. 5.0Gbps
USB Output cable distance……………………………………. ≤5m USB standard cable HDM Output cable distance……………………………….. ≤10m AWG26 HDMI standard cable
VGA Output cable distance……………………………………. . ≤20m VGA standard cable
Max working current……………………………………. ...1500mA
Operating Temperature range…….. (-15 to +55°C)
Operating Humidity range……………………………...….….….5 to 90%RH (No Condensation)
Dimension (L x W x H)…………………………. 80X64X26 (mm)
Weight…... 101g
FEATURES

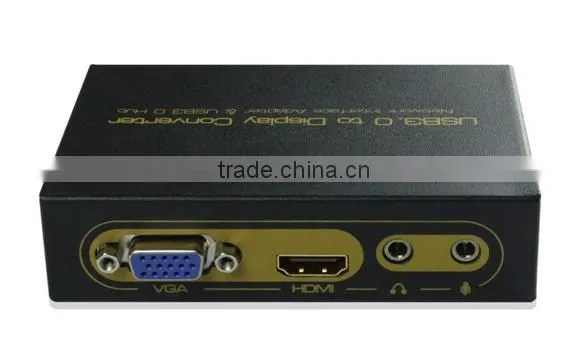

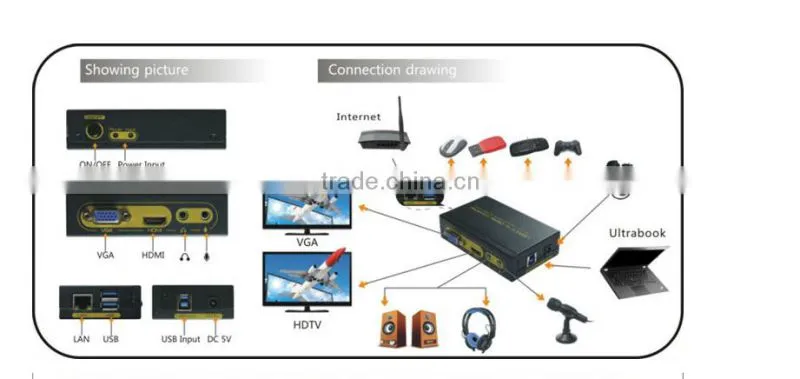

l Expand at AV include: One Microphone port and one headphone port (it can connect the Advanced Speaker). One HDMI output port and one VGA output port allows connect two HD Display that can support most up to 1920*1080 resolution.
l Support USB input for PC or notebook
l Support Video Output: HDMI Signal, VGA Signal (Support both routes of signal output simultaneously)

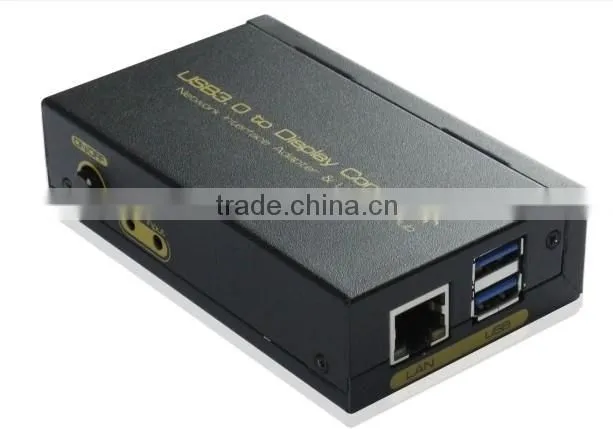

l Supply two USB3.0 Ports, it can connect the USB Keyboard , mouse or other Device with USB port.
l Support audio input and output, supply one Microphone port and one headphone audio port.
l Support Ethernet Connect function(Network Interface Card Function)
l Supported Function: 1.Primary 2.Extended 3.Mirror
l Compliant With USB 3.0,Compliant With USD 2.0
l HDMI Output Resolution:Support480I,480P,576I ,576P,720P,1080I,and 1080p
l HDMI Output: support up to 1920*1080 resolution and same format as the input signal(fresh rate 60Hz 32 True Deep Color)
l Support Windows® Vista, Windows®7,and Windows® and Mac OS X
l HDMI and VGA output port support CRT, LCD, Projector and other display.
l No Loss of Signal
l Easy to Install
l Need DC5V/3A power adaptor
The accessories with the machines lists:
1, one pc of Manual 1pcs
2, 1 x CD (Driver) 1pcs
3, USB3.0 cable 1pcs
4, 5V power adapter 1pcs
