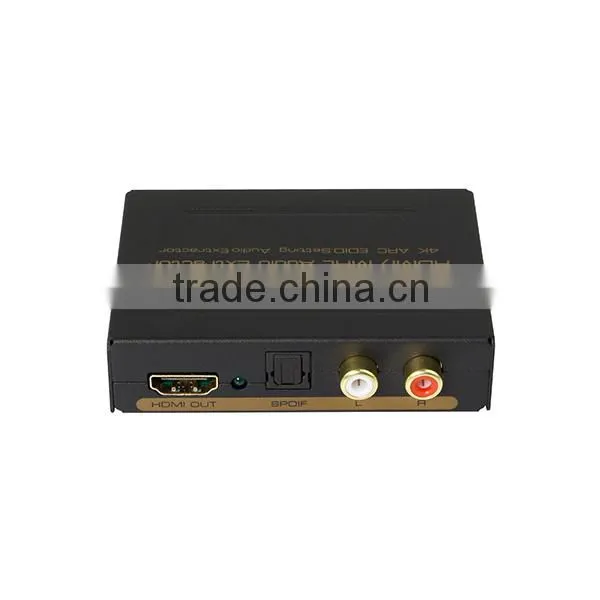

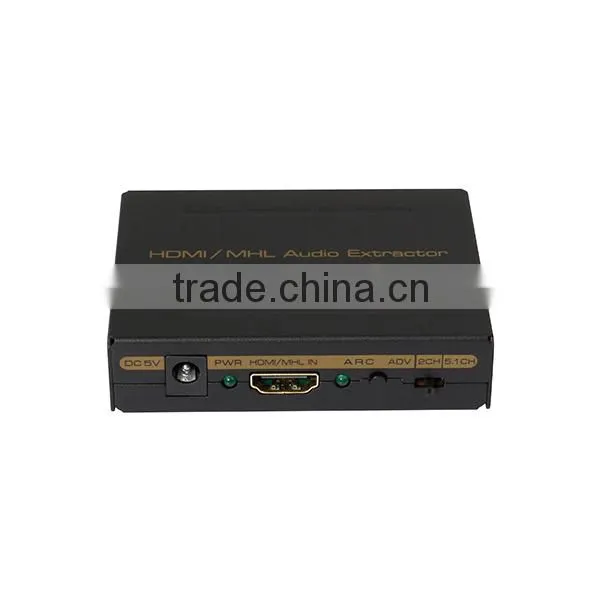

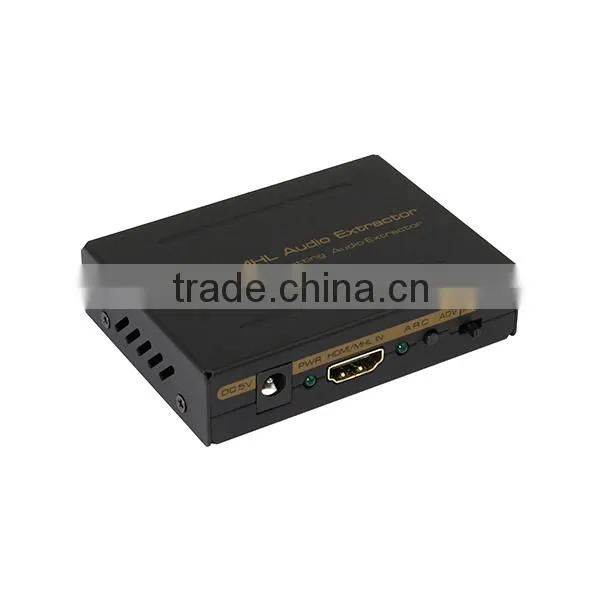

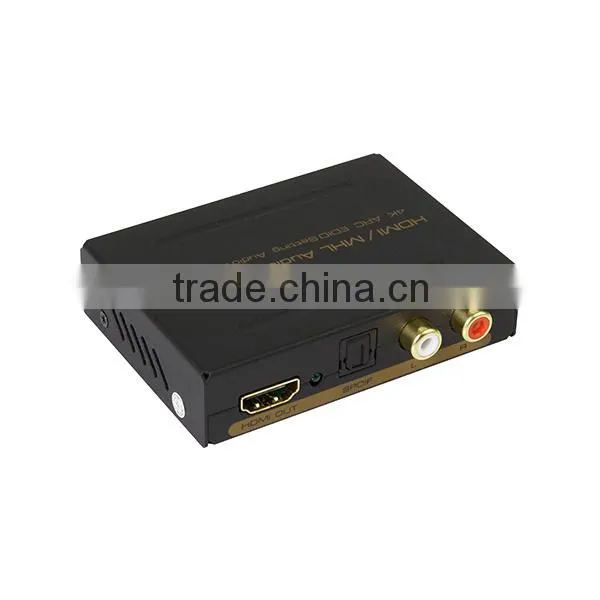

1.4V HDMI to HDMI SPDIF RCA Converter

Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

ASK

Model Number:

HDCN0020M1

Shenzhen ASK Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name ASK

Model Number HDCN0020M1

Type Optical Fiber

Application DVD Player

Color Black

Packing Carton Box

Connector Color Gold

Connector Type HDMI

Shielding Combination

Gender Female-Female

Specifications

1.4V HDMI to HDMI SPDIF RCA Converter
One HDMI input,HDMI+SPDIF+RCA out
1.4 version,Support 4Kx2K ARC and ADV / 2.0CH / 5.1CH

FEATURES

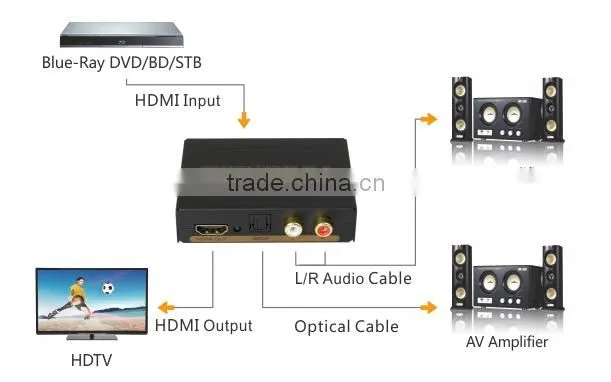

One HDMI or One MHL input converter to one HDMI+ One SPDF+ One LR Audio Out
Output audio support: SPDIF+R/L analog Audio Output
Support Full HD 1080P, Full 3D,4K*2K resolution
Support ARC Function: Without adding one extra HDMI Cable, it can reverse the audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV receive the audio and video content.
HDMI/ MHL working in dual mode, can reduce the number of ports
HDMI to achieve the synchronization of audio signal separation. There are ADV /
2.0CH / 5.1CH three kinds of audio mode options
LED indication: when source or sink is working, LED relative to is light.
No loss of quality
Installs in minutes
Need DC5V/1A power supply

SPECIFICATIONS: HDCN0020M1

HDMI resolution	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format	24bit/deep color 30bit,36bit
Audio output	L/R+SPDIF
Max bandwidth	300MHz
Max baudrate	9.0Gbps
Input/Output TMDS signal	0.5~1.5Volts p-p(TTL)
Input/Output DDC signal	5Volts p-p (TTL)
Input cable distance	≤15m AWG26 HDMI standard cable
Output cable distance	≤20m AWG26 HDMI standard cable
Max working current	500mA
Power adapter format	Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range	(-10 to +55°C)
Storage Temperature range	-20 to +60°C
Operating Humidity range	10 to 90%RH (No Condensation)
Storage Humidity range	5 to 95%RH (No Condensation)
Dimension (L x W x H)	84.5X61.8X21 (mm)
