Specifications
5.8ghz wireless video transmitter receiver 30m.wireless hdmi extender 30m/1080p
.40meter LOS transmission system

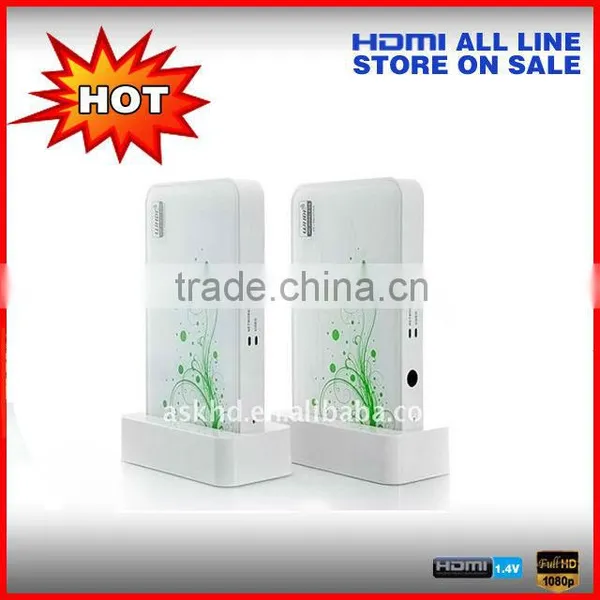

Audio HDMI wireless extender 30 m
Brief Introduction
Thank you for choosing our devices of the high-definition (HD) wireless audio/video (AV)
transmission system. The device can be wirelessly connected from an HD source device
to an HD display device such as the TV, projector, HD disc player, game machine,
recorder, and set-top-box at home. With the device, you can enjoy HD video anywhere at
home.
Technical Specifications
Video formats supported
TV 1080p, 1080i, 720p, 576p,480p
PC: VGA(640X480), SVGA(800X600),
XGA(1024X768), SXGA(1280X1024)
Audio formats supported PCM,DTS, DOCBY DIGITAL
RF communication system MIMO
Modulation mode OFDM
Maximum transmission power 12dBm
Image transmission distance ≥30m
Image delay <1 ms
Transmission/receiving
antenna mode
Built-in
Operating frequency 5.1~5.9GHz
Installation and Use
It is recommended to place a transmitter and a receiver vertically or horizontally at the
same time during installation. If the transmitter and the receiver are placed across each
other, for example the transmitter is put vertically and the receiver is placed horizontally,
the image transmission distance and effect are impacted.
