Specifications
DVI-CAT-DVI ExtenderThe DVIEX0002M1 Extender use Single cat-6 or cat-7(recommended) cables up to 50 meters
SPECIFICATIONS: DVIEX0002M1
Video Input/Output Port………………………………………………………… …………… DVI
Length of CAT-6 cable between Rx and TX…………………………………....Up to 50 meters
DVI Input…..………………….........………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
DVI Output…..…………….…...………..…24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth……………………………………………………..…….……………………225MHz
Max baud rate……………….…….………………….……………...………………………6.75Gbps
Input/Output DVI cable distance………….……………..…...≤15m Use the standard DVI Cable
Max working current……………………………………………………..……….…………...600mA
Power adapter format………..…Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A(RX/TX)
Operating Temperature range……..…………….……….…………………………… -10 to +55℃
Storage Temperature range…………………………………………………………… -20 to +60℃
Operating Humidity range…………………………….….……….10 to 90%RH (No Condensation)
Storage Humidity range……………………………..….……….…5 to 95%RH (No Condensation)
Dimension (L x W x H)………………………………….………………79X93.8X28 (mm)(RX/TX)
Weight…..………………………………………………………..…………………..…………119g(TX)
Weight…..………………………………………………………..…………………..…………118g(RX)
SPECIFICATIONS: DVIEX0002M1
Video Input/Output Port………………………………………………………… …………… DVI
Length of CAT-6 cable between Rx and TX…………………………………....Up to 50 meters
DVI Input…..………………….........………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
DVI Output…..…………….…...………..…24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth……………………………………………………..…….……………………225MHz
Max baud rate……………….…….………………….……………...………………………6.75Gbps
Input/Output DVI cable distance………….……………..…...≤15m Use the standard DVI Cable
Max working current……………………………………………………..……….…………...600mA
Power adapter format………..…Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A(RX/TX)
Operating Temperature range……..…………….……….…………………………… -10 to +55℃
Storage Temperature range…………………………………………………………… -20 to +60℃
Operating Humidity range…………………………….….……….10 to 90%RH (No Condensation)
Storage Humidity range……………………………..….……….…5 to 95%RH (No Condensation)
Dimension (L x W x H)………………………………….………………79X93.8X28 (mm)(RX/TX)
Weight…..………………………………………………………..…………………..…………119g(TX)
Weight…..………………………………………………………..…………………..…………118g(RX)
FEATURES
l Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

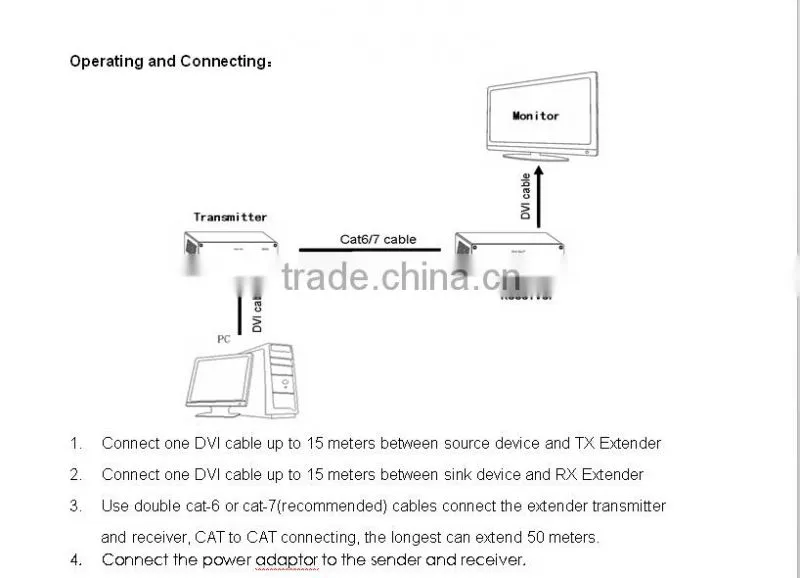

l Signal transmission: use one cat6/7(recommend cat6) to connect the sender and receiver, and the Ethernet cable can be up to 50m.
l Comply to the standard of IEEE-568B
l Support up to 1080P
l Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

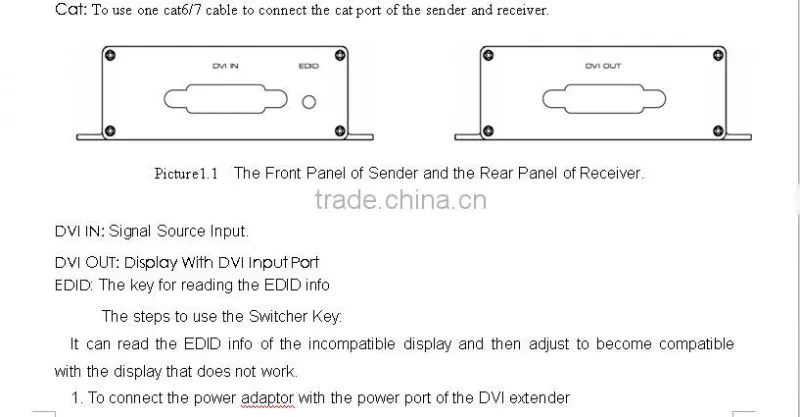

l DVI Input/Output Port: Standard DVI-I head, only supports Digital Video Signal.
l LED indication: when power is supplied or device is working, LED relative to is light.
l No loss of quality
l Installs in minutes
l Need DC5V/1A power supply
