Specifications

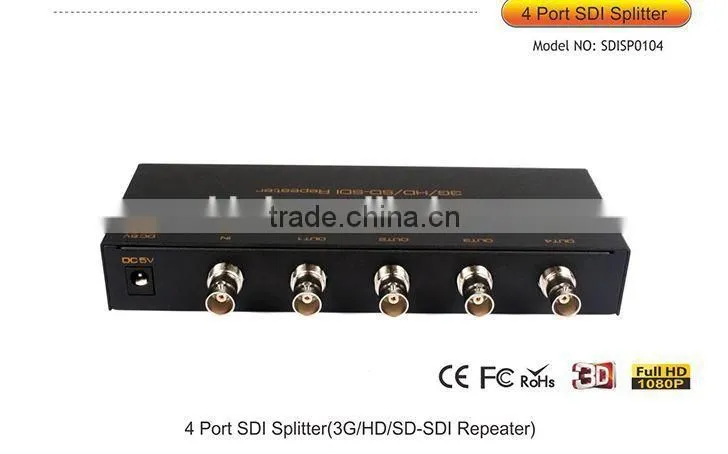

4 Port 3G- SDI Splitter1:supports SD-SDI,HD-SDI and 3G-SDI format signals
2: One Signal distribute to four SDI signal out

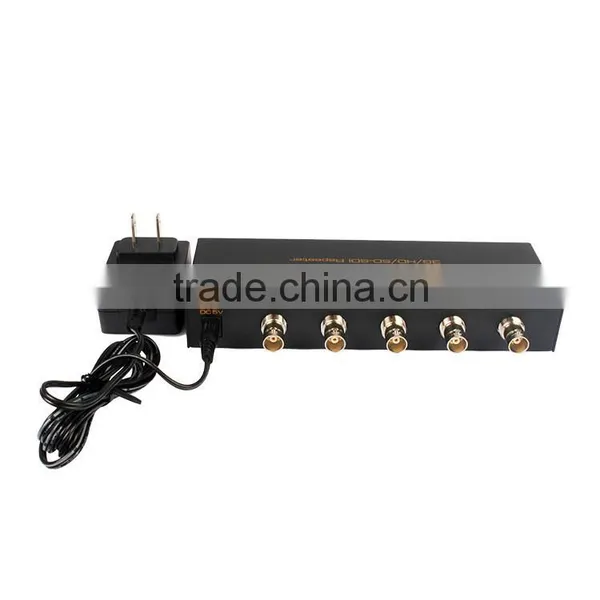

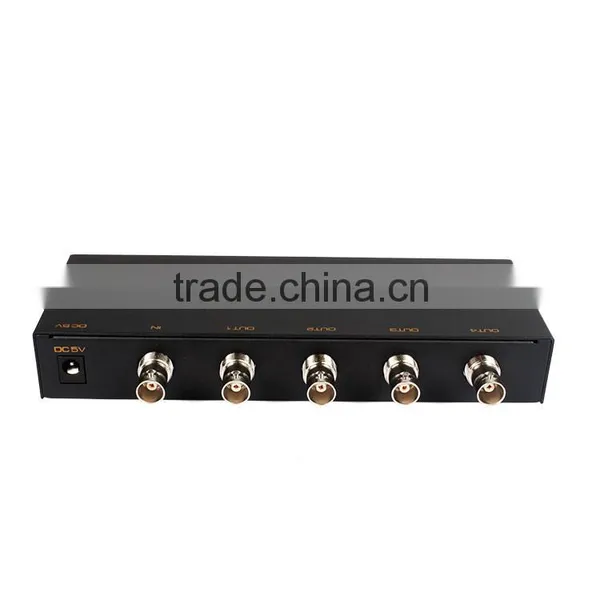

Latest 3G-SDI Splitter 1x4 --1080P Supported

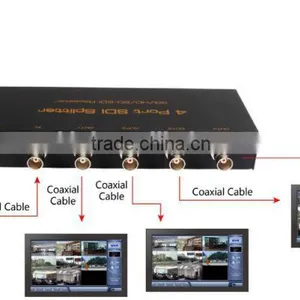

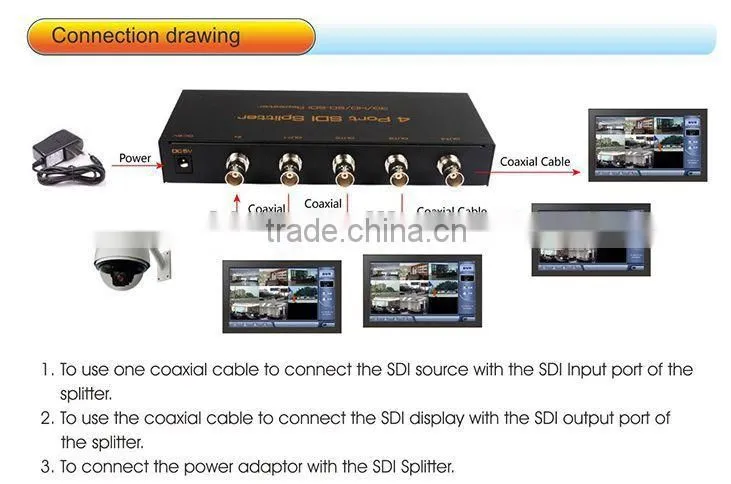

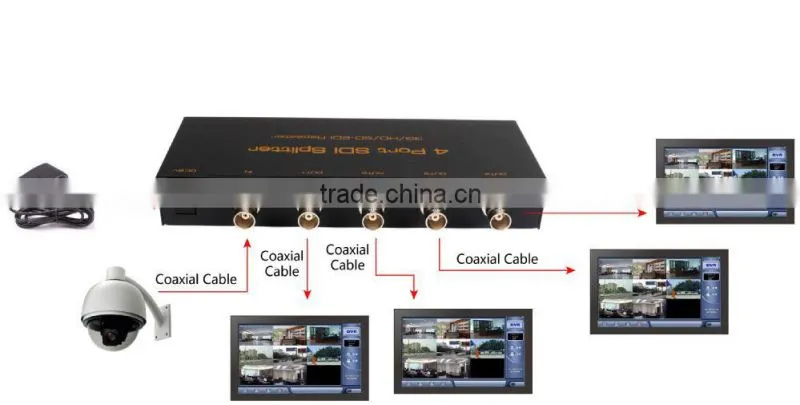

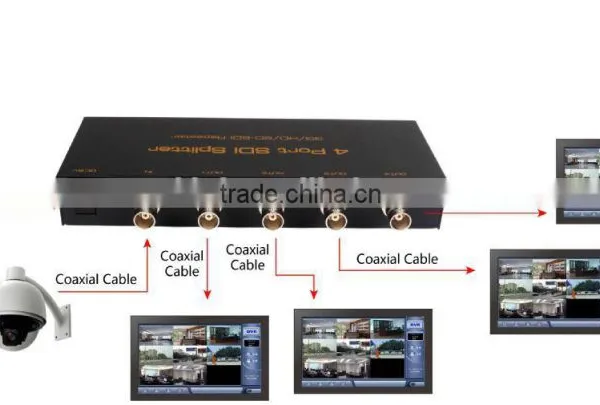

The 4 Port SDI Splitter can easily distribute one SDI signal to four SDI Compliant Displays without any loss of signal, distortion and delay. It supports SD-SDI,HD-SDI and 3G-SDI format signals; also it can do amplify to the SDI signal.
FEATURES
lOne Signal distribute to four SDI signal out.
lSupport SD-SDI, HD-SDI and 3G-SDI Video Format.
lSDI Supports1080P/1080I/720P/576I/ 480I Video Resolution.
lSupport SDI transmission Speed: SD-SDI:270MbPs,HD-SDI:1.485GbPs and 3G-SDI: 2.97GbPs.
lSupported Max Cable Length(SYV-75-5):SD supports up to 400m,HD supports up to 200m, 3G supports up to 80~100m(Note: The cable length will depend on the cable spec)
lSupport deep color 8bit, 10bit, 12bit
lSupport up to 3G-SDI
lAudio and Video Output Simultaneously
lSupport Clock Recovery
lNo Any Drive Need, Support Hot-Plug, Plug and Play
lWide voltage input, It can support DC 5V~ 12V input

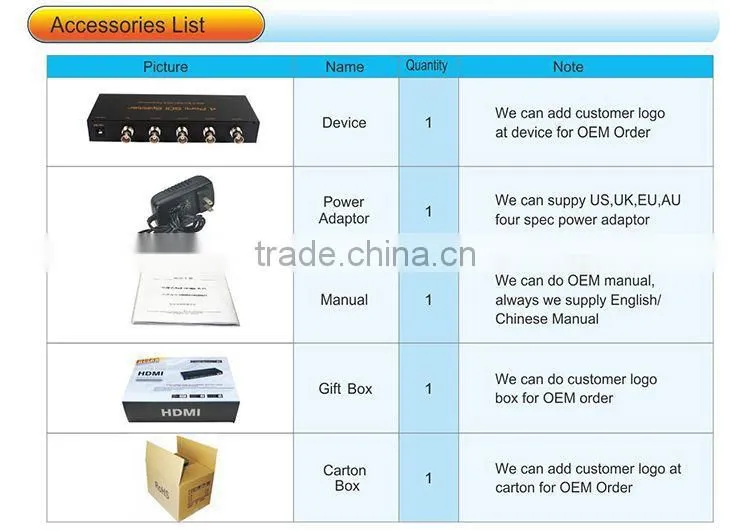

PACKAGE CONTENTS:
1,Main unit 1PCS
2,5VPower Adaptor 1PCS
3,one pc of Manual 1PCS
