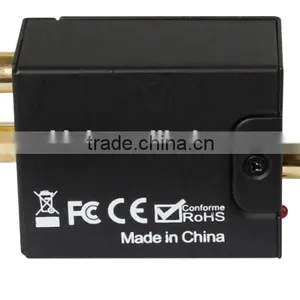

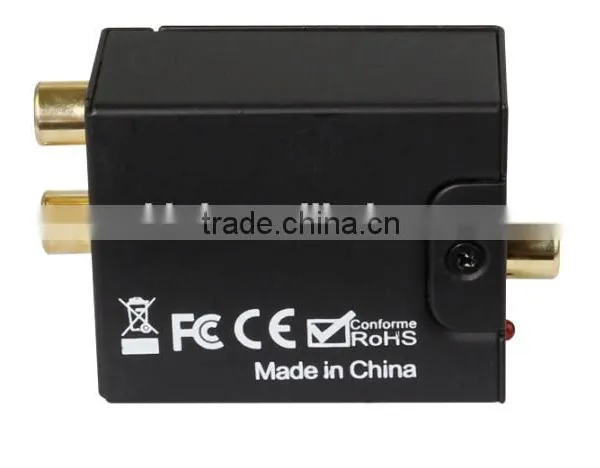

Help CenterMulti-function Audio Digital to Analog Audio Converter (DAC 5.1)
Related Products
-
Hdmi to HDMI + Audio (Digital + 5.1CH Analog) Out Supports 5.1 Dolby Digital & DTS DecodingNegotiableMOQ: 50 Sets -
HDMI to HDMI + Optical SPDIF + 6 RCA + 3.5mm Headphone Audio Extractor ConverterNegotiableMOQ: 50 Sets
-
Spdif to 5.1 ConverterNegotiableMOQ: 50 Pieces
-
Digital Audio Optical Toslink Switch 3x1NegotiableMOQ: 100 Pieces
-
New Toslink (Optical) Audio Switcher 4x2NegotiableMOQ: 1 Piece
Specifications
Digital To Analog Coverter1) Coaxial or Toslink to R/L audio
2)OEM, ODM avaliable
3)Certs :CE, FCC, RoHS, PSE
4)Factory
Spec: ADCV001M1
Support Analog AudioOutFormat…………………………………………………PCM/LPCM
DAC Sampling Rate………………………………………………………32 44 .1 48 96 KHz
DAC Bits Rate………………………………………………………………………… 24 Bit
Digital Input Level………………………………………………………………0.1~1V p-p
L/R Analog Out(1kHz@0dB) ……………………………………………… 1V RMS
SNR@0dB(CCIR/ARM)………………………………………………………………90dB
Degree of Distortion……………………………………………………………………0.1%
Frequency Response…………………………………………………………20Hz~20KHz
Max Working Current…………………………………………………………………… 40UA
Power Adaptor Spec…………………………………… AC 100V-240V 50/60Hz,DC 5V/1A
Working Temperature………………………………………………………………-10~+55°
Storage Temperature………………………………………………………………-20~+60°
Working Humidity………………………………………… 10~90%RH(No Condensation))
Storage Humidity………………………………………………5~95%RH(No Condensation)
Device Size…………………………………………………………………… 51x41x26 (mm)
Weight………………………………………………………………………………………71g
