Specifications
1.4V HDMI splitter 1X4 with Audio & Video EDID settingSupport Full HD, Full 3D
Support 1080P resolution
Support CEC/EDID
Specifications
1.4V HDMI splitter 1X4 with Audio & Video EDID setting
1.Support Full HD, Full 3D
2.Support CE FCC ROHS
3.Support 4Kx2K

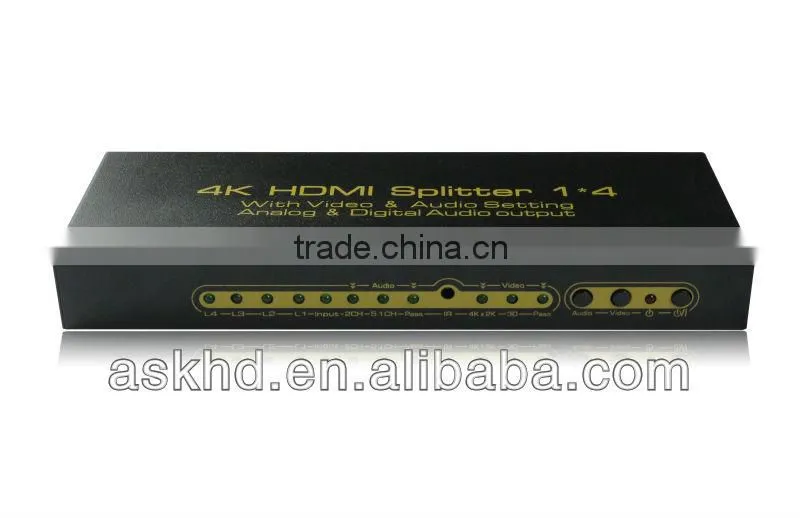

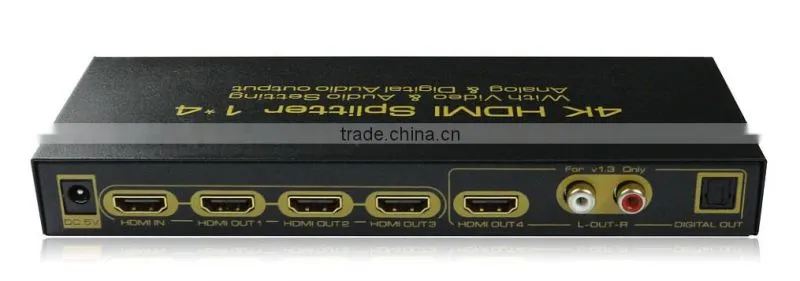

1.4V HDMI splitter 1X4 wiht audio output

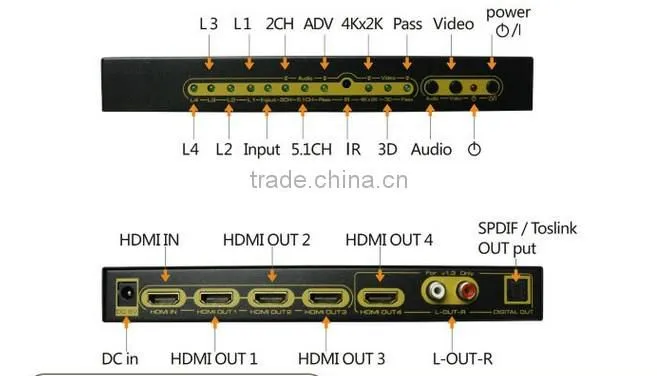

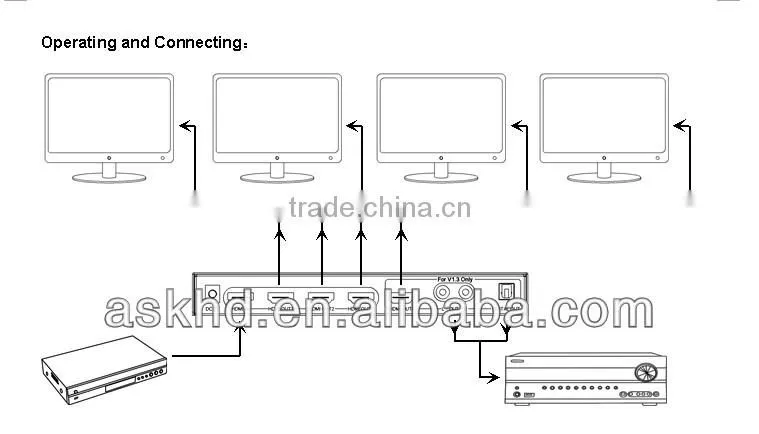

The 1x4 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks.The Splitter allows one HD source to be split easily to four HDMI compatible monitors or projectors. It also supports extra analog stereo audio output and digital SPDIF audio output. And the user can do choose the video mode output at the three video mode:3D mode, 4K x 2K mode and Pass mode and choose the audio output mode at the three audio mode: 5.1CH mode, 2.0CH Mode and Pass mode.It will bring the super vivid HD experience to the users.
FEATURES
lOne HDMI input signal split to four HDMI sink devices
lSupport 4K full HD signal input and output (The output port 4 only can support the 3D signal output)
lSupport analog stereo audio and digital audio(SPDIF/Toslink) output (the function can not work when the video output is 4KX2K Mode)
lSupport deep color 24bit,30bit, 36bit
lSupport Blue-Ray 24/50/60fs/HD-DVD/xvYCC
lHDMI audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
lSupport LPCM2.0/DTS/Dolby-AC3 digital audio(SPDIF/Toslink) output
lThe video and audio output mode can be controlled by the remote or R/M or by pressing s the switch button.
lOver-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
lLED status indication, it can tell us the working state of the device very easily.
lSupport signal retiming
lSupport input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
lNo loss of quality
lInstalls in minutes
lNeed DC 5V/1A power supply
The accessories with the machines lists:
1. 5V Power Adaptor
2. one pc of Manual
3. Remote-control unit
SPECIFICATIONS: HDSP0001M1
HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………..…………….24bit,30bit,36bit deep color
Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Digital audio output format…………………………………………...LPCM2.0/DTS/Dolby-AC3
Max bandwidth……………………………………………………………………………..340MHz
Max baud rate……………….…….………………….…………………………………..10.2Gbps
Input/Output TMDS signal ………….…………………………..……. 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)
Input cable distance..…... ……………………….…….….≤15m AWG26 HDMI standard cable
Output cable distance…………………………..…….…...≤20m AWG26 HDMI standard cable
Max working current……………………………………………………………….………..700mA
Power adapter format..Input: …….............AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….………………………………… (-0 to +40°C)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H)……………………………….………………………205x74x226 (mm)
Weight…..………………………………………………………..…….………………………360g
