Specifications
3/16" non-return Low pressure mini plastic check valves100%factory test
original material
quickly delivery
free samples

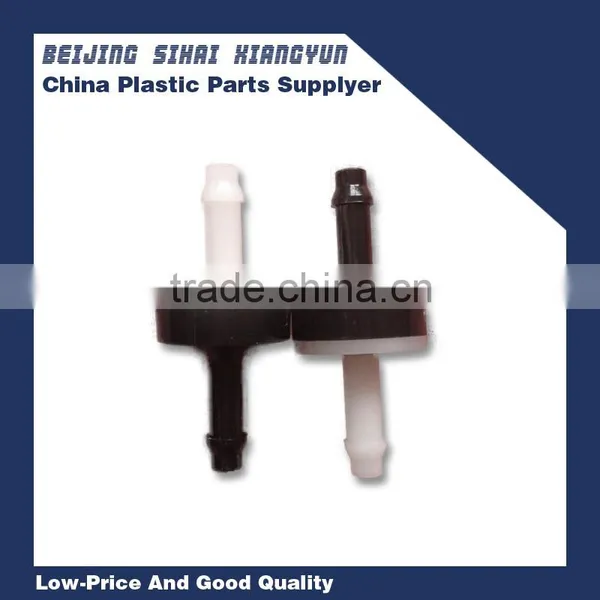

3/16" non-return Low pressure mini plastic check valves
DCV1603AVN, PA66 body,Viton sealing.
Specifications:
Body material |
PA66 |
Diaphragm material |
Viton |
Tube ID |
φ5.0mm |
opening pressure |
<0.5Kpa |
Aback pressure |
> 0.3Mpa |
Color |
Black and White |
valve inside |
Yes |
Check valves are used to prevent flow of fluid (gas or liquid) in one direction and allow flow in the other
direction.
1. Prevents damage to equipment, pumps, and flow systems by
preventing backflow
2. Tubing barbed check valves are for an inert high purity
smooth and clear flow path.
3. Use with liquids and gases for pressure or vacuum
applications.
4. The check valves has a low pressure drop and can be specified
with a wide variety of cracking pressures
1. Five port sizes. (nominal inside diameter of the tube in which it
fits) 1/8", 3/16", 1/4", 5/16" and 3/8".
2. Four housing materials. nylon type 66, polypropylene,
ABS and PVDF.
3. Four diaphragm materials. fluorosilicone, Viton, silicone ,and
EPDM

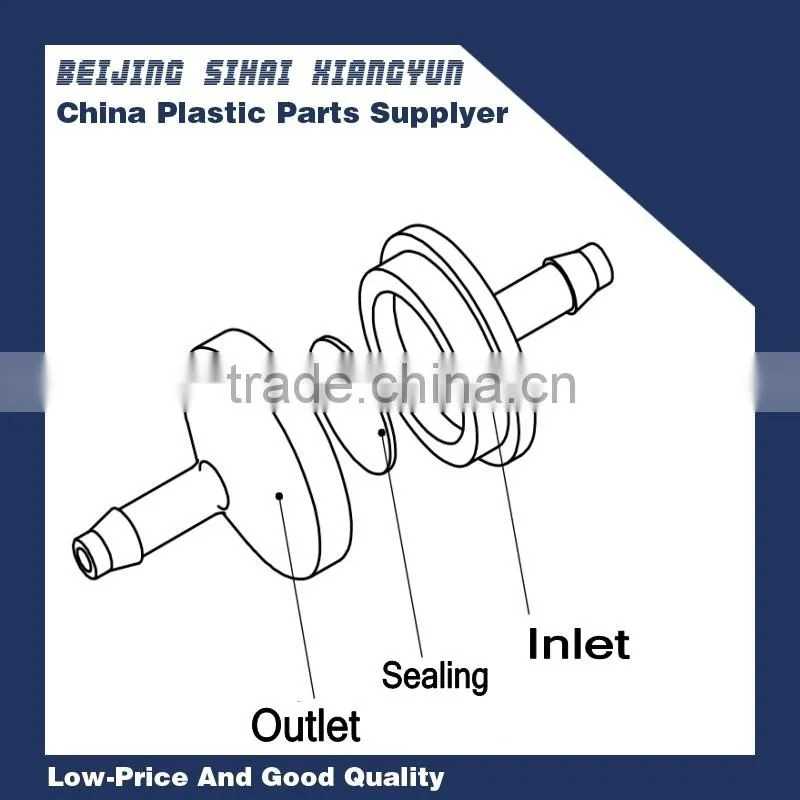

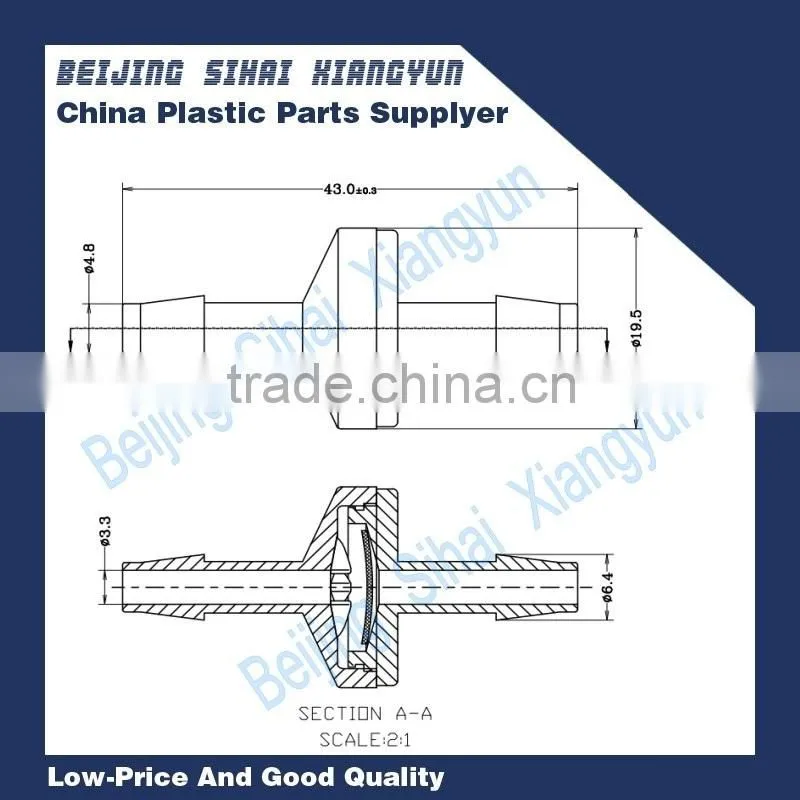

3/16" mini plastic check valves structure and size:
Please kindly advise information as follow,then we could send quotation directly.
1) What is your application?
2) What kind of medium will pass the valve? Water, air, gasoline, chemical solvent or others?
3) What is your using temperature?
4) What is the working pressure you require? Such as cracking pressure and back pressure.
5) What is the approximate size of your tube ID?
6) What is your purchase quantity and annual demands?
