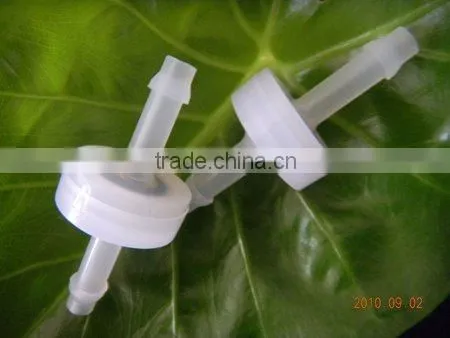

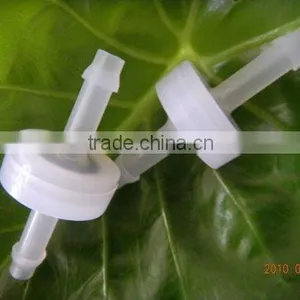

Help Center3/16" PVDF VITON Ozone Resistance Plastic Non Return Valve
Related Products
-
5/16" POM NBR Connect CouplerUS$ 0.9 - 1MOQ: 100 Pieces -
3/8" PP VITON Plastic Inline ValvesUS$ 0.5 - 1MOQ: 100 Pieces
-
3/16" Stop Valves/one Way Valve/plastic ValveUS$ 0.5 - 1MOQ: 100 Pieces
-
3/16" ABS VMQ Hydraulic ValvesUS$ 0.5 - 1MOQ: 100 Pieces
-
3/8" PVDF VITON Ozone Inline Valve/check Valve/one Way Valve ManufacturerUS$ 0.75 - 1.5MOQ: 100 Pieces
Specifications
Ozone Resistance plastic non return valve100% factory tested
easy installation
maintenance
excellent flow characteristic
Ozone Resistance plastic non return valve
SCV316DVL
product detail
body material: PVDF
diaphragm material: VITON
opening pressure: 10-15 mbar
Major Application
- industrial inkjet
- wide inkjet printers
- tester
- ozone generator.
- gasoline engine
Check valves are used to prevent flow of fluid (gas or liquid) in one direction and allow flow in the other direction.
1.Five port sizes. (nominal inside diameter of the tube in which it fits) 1/8", 3/16", 1/4", 5/16" and 3/8".
2.Three housing materials. nylon type 66, polypropylene and PVDF
3.Four diaphragm materials. fluorosilicone, Viton, silicone and EPDM
Function:
1.Prevents damage to equipment, pumps, and flow systems by preventing backflow
2.Tubing barbed check valves are for an inert high purity smooth and clear flow path.
3.Use with liquids and gases for pressure or vacuum applications.
4.The check valves has a low pressure drop and can be specified with a wide variety of cracking pressures
Advantage:
1.We offer competitive pricing and reliability because we are the manufacture.
2.If your design requires a unique configuration, we will be pleased to quote your needs.
3.plastic materials can save money for you and are simple, compactultrasonic welding to connect more
firmly
Packing
plastic bag and wrapped, cased in small carton
