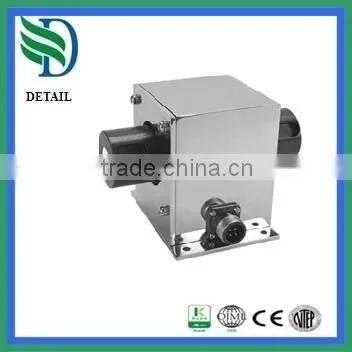

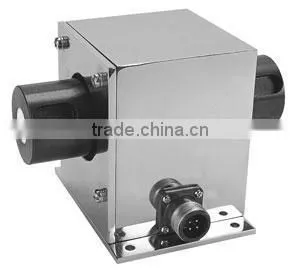

Dynamic torque sensor DWTQ-1000A
Specifications :
1: For Dynamic torque measurement
2: Dynamic torque measurement 1NM 5NM 10NM 20NM 30NM 50NM 100NM
3: Small Size ; Be installed at any position, any direction.
Features :
1: One product of resistance strain gauge as the sensitive element and integrated circuit. through the brush to achieve power and signal output.
2: For low-range torque measurement
3:Continuously transmitting positive &negative torque signal without repeated zero setting.
4:Small volume, Light weight, Easy to install , Be installed at any position, any direction
5:High accuracy, reliable performance.
6:Transmission has nothing to do with rotation, speed and veer.
7:output the signals of positive rotation and reaction torque.
8:Mounting: Keyed shaft both ends.
9:Max Rotate-speed: ≤500rpm/minutes
Technology parameter |
|
capability range |
0~0.5,1,2,5,10,20,50,100 Nm |
Rated output |
1.0~2.0 mV/V |
Accuracy |
±0.1; ±0.3; ±0.5%F.S |
Compensated temperature range |
- 10 ~ 40 ºC |
Recommended Excitation |
12VCD |
Temp Effect On Zero |
±0.1%F.S/10 ℃ |
Frequency response |
100μS |
Insulation |
2000 MΩ/100VDC |
Input Impedance |
700±10/350±10Ω |
Output impedance |
700±5/350±5Ω |
Safe Overload |
120%F.S |
Ultimate Overload |
150%F.S |

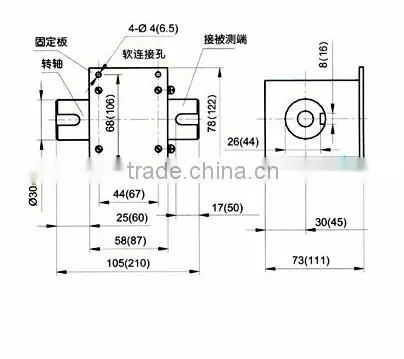

Dimension |
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
1. Customized Product
Detail Sensing provides OEM Pressure Sensors and Custom-Design services.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to
customer's application.
2. Quality Guarantee
We guarantee product quality for 12 months starting from the date of delivery. For any unproper situation, please feel free to let us know.
3. Shipment & packing
Pressure sensors are generally shipped by International Express including UPS, FedEx, DHL and TNT as you required. By plane or by ship is available, too. Please discuss details with our sales.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
4. Contact us
We have an active and experienced sales team to serve you on technical questions and business issues.
Just leave us message or click the Online Service for questions and enquiries.
Within 24 working hours, we will come to you at the first time!
