DLC134 crane scale load cell / steel embody scale load cell
|

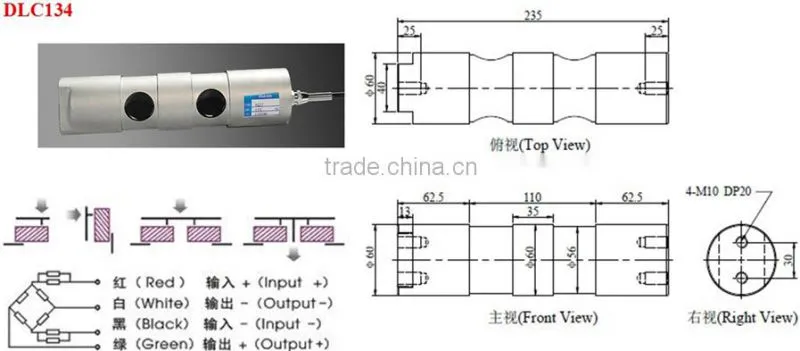

Model: DLC134 Category: Bridge load cell Range: 15T Dimension: 235*60mm Material: Alloy steel,stainless steel Application: crane scale,steel embody scale/lifting weight limited Characteristic: crane scale load cell,steel embody scale load cell | |||
| |||
Specification | |||
Rated Capacities |
15 (t) |
Output Impedance |
700±5 Ω |
Rated Output |
(1.55~1.65) mV/V |
Insulation Impedance |
≥5000MΩ/(50VDC) |
Non-linearity |
0.05~0.03% R.O. |
Safe Overload |
150% R.O. |
Hysteresis |
0.05~0.03% R.O. |
Ultimate Overload |
200% R.O. |
Repeatability |
0.05~0.03% R.O. |
Operating Temperature Range |
-20~60 ℃ |
Creep(30min) |
0.05~0.03% R.O. |
Recommended Excitation |
5~12 VDC |
Temperature Effect On Output |
0.003%R.O./℃ |
Maximum Excitation |
15 VDC |
Temperature Effect On Zero |
0.003%R.O./℃ |
Construction |
Steel Alloy |
Zero Balance |
±0.0200 mV/V |
Protection Class |
IP67 / IP68 |
Input Impedance |
740±15 Ω |
Cable |
φ6×2 m |
Mode of Connection Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-) | |||
APPLICATION:
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
Welcome to the workshop
FAQ
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply you within 24 hours.
