DLC650 electronic price platform scale load cell
|
Model: DLC650 Category: single point load cell Range: 5kg, 10kg, 15kg, 20kg, 50kg, 100kg, 120kg, 200kg, 300kg Dimension: 150*40*25mm Material: Alloy aluminum Application: Platform scale, pricing scale, electronic scale, kitchen scale, postal scale Characteristic: 300kg Platform scale load cell | |||
|

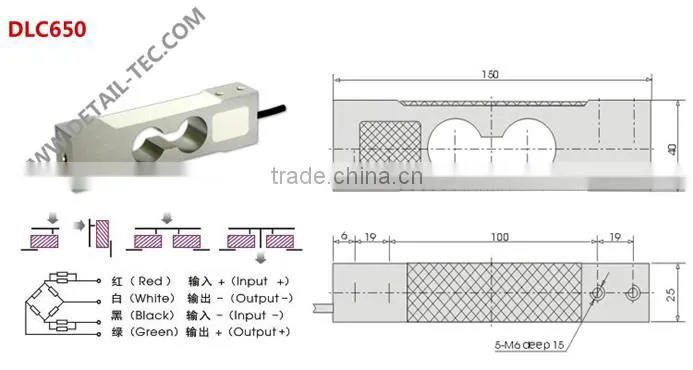

REF PIC | |||
Specification | |||
comprehensive error: |
0.017%FS |
output resistance: |
350±3Ω |
Rated output: |
1±0.01mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
Non-linearity: |
0.017%FS |
Excitation voltage: |
9~12VDC |
Hysteresis: |
0.017%FS |
compensated temp: |
-10~+40ºC |
Repeatability: |
0.01%FS |
use temperature: |
-20~+60ºC |
Creep: |
0.017%FS/10MIN |
temp effect on zero: |
0.017%FS/10ºC |
Zero balance: |
±1%FS |
Temp effect on span: |
0.014%FS/10ºC |
Input resistance: |
405±10Ω |
defend grade: |
IP65 |
APPLICATION:
