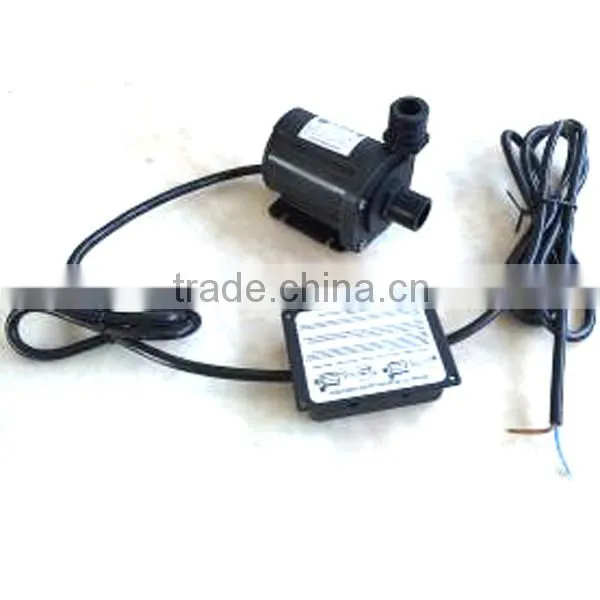

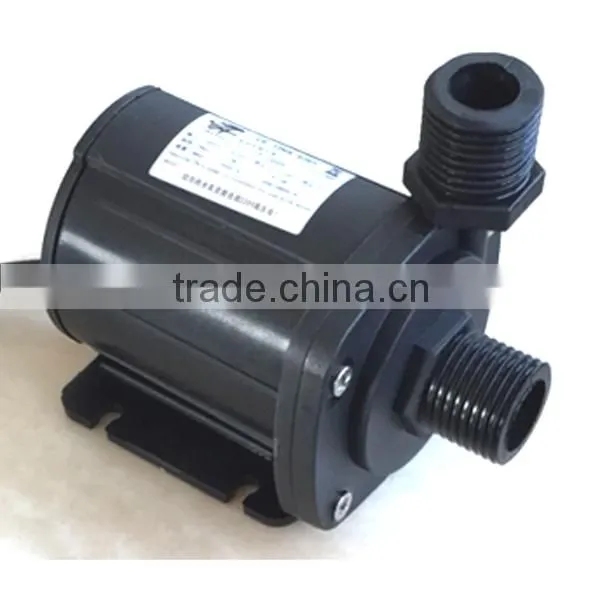

24V Inverter Water Pump, Brushless DC Pump Submersible 1200L/H
US$ 1 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Javtop
Model Number:
JT-1000B-T
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Two-phase DC Brushless Pumps, Booster Pumps, Speed Pump, Skimmer Circulation Pump 12V 24VUS$ 1 - 40MOQ: 1 Piece -
Three-phase DC 12V 24V Water Brushless Pumps With DC Water Pump ControllerUS$ 1 - 55MOQ: 1 Piece
-
12V 24V Brushless DC Water Pump 3000 L/HUS$ 1 - 40MOQ: 1 Piece
-
12V 24V BIG POWER DC Mini Pump, Submersible Brushless DC Magnetic Driven, For Circulation, Fountain, Cooling System, Etc.US$ 1 - 35MOQ: 1 Piece
-
Electric 12V 24V Brushless DC Submersible Water Pump 650 L/HUS$ 1 - 25MOQ: 1 Piece
Place of Origin
China
Brand Name
Javtop
Model Number
JT-1000B-T
Theory
Vortex Pump
Structure
Gear Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other
Pressure
Low Pressure
Application
Submersible
24V Inverter Water Pump, Brushless DC Pump Submersible 1200L/H
Description:
220V AC voltage can not be used directly!
Input voltage: 24V
Operating current: 3500MA
Maximum lift: 1700CM
Maximum flow: 1200L / H
Black stripped wire length: 1.5 m
| Model | Voltage Scope(DC) |
Current(A) | Power(W) | Max Water Head(M) |
Max Flow Rate(L/H) |
Starting Voltage | waterproofing grade |
| JT-1000B-T-12 | 12V | 2.5 | 30 | 10 | 900 | 6 | IP68 |
| JT-1000B-T-24 | 24V | 3.4 | 82 | 17 | 1200 | 9 | IP68 |
1. Ambient temperature: -40~100C
2. Operating Humidity: less than 90%RH
3. Liquid temperature: -40~100C
4. Using liquid: water or Nonflammable liquid with good fluidity
5. Operation place: Medical, fountains and so on
6. Unpitched sound: less than 45dB
7. PUMP shell Material: Nylon PA66 + 30% glass fiber
8. Motor magnet:: Ferrite magnets
9. Motor enameled copper wire: QZ can resist 200C degrees
