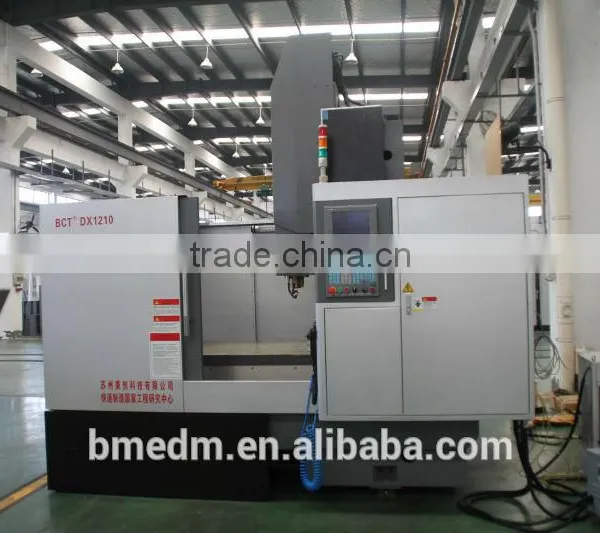

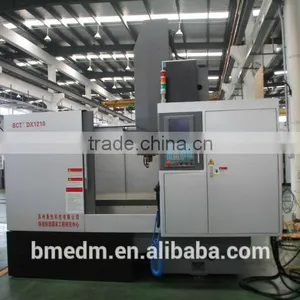

Large Cnc Milling Machine

Name: Large Cnc Milling Machine
Brand: Baoma
SKU: 106964073

US$ 1 - 85,555 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Baoma

Suzhou Baoma Numerical Control Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name Baoma

Model Number BMDX120100

Type Vertical

CNC or Not CNC

Voltage 380V

Power(W) 22Kw

Dimension(L*W*H) 2700*3045*3050mm

Weight 7500kg

Certification CE, ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.CNC milling machine with high speed spindle: 24000RPM
2.China CNC milling machine at lower price
3.CNC Engraving

Travel/space	X/Y/Z axis travel	mm	1000/1200/550
Table upper surface to spindle nose end face		mm	140-690
Accuracy	Positioning	mm	±0.005/300
Accuracy	Repeatability	mm	±0.003/300
Table	Table dimension	mm	1050x1300
	Max. load on table	Kg	800
	Power(X Y Z)	Kw	1.8,1.8,1.8
	T shape groove	mm	18TxP150x7
Spindle	18000rpm / 7.5kw / BT30
Feeding speed	Rapid speed(X/Y/Z)	mm/min	15000
Feeding speed	Cutting speed(X/Y/Z)	mm/min	6000
Outer size and weight	Machine height	mm	3050
	Floor space	mm	2700x3045
	Net weight	Kg	7500
Total input power		Kw	22

The opening protector design makes big work piece loading easily.
In design we use the advanced finite element software to do dynamic simulation and construction analysis in order to ensure the machine possesses the best construction rigidity, machining precision and machining steady.
X, Y, Z use precision ball bearing screw, all have be hauled advance, that will ensure machine to get the best precision and make the position error to the lowest.
The slop bed and the big capacity water tank make scrap to be cleaned easily.
The one key to make sure the machining result excellent is high speed and precision spindle. The power source for small tool engraving comes from the electric motor of high speed and precision spindle. If you want to make the small tool working in good condition, the spindle electric motor has the follow characteristics: high speed rolling, small rolling shake, and small rolling noise.
Excellent design make the machine so good operation.
Using the advanced cooling-water machine to cool down the spindle, make sure the spindle keeping long life and machining having high precision.

Our company offer Taiwan SYNTEC, LNC and Germany PA system for the customer’s request, and try our best to offer you the best products.

Be able to connect the man-machine communicated interface of Easy view and Digital
Wide range to connect with other equipment
Convenient to communicate through the figural interface
Convenient to renew the software through the mobile hard disk
Control several axes in different synchronous way by PLC
The function of video mending
Nice panel design and steady controller design
