Specifications
sales worldwide,after-sale service

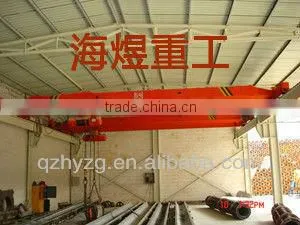

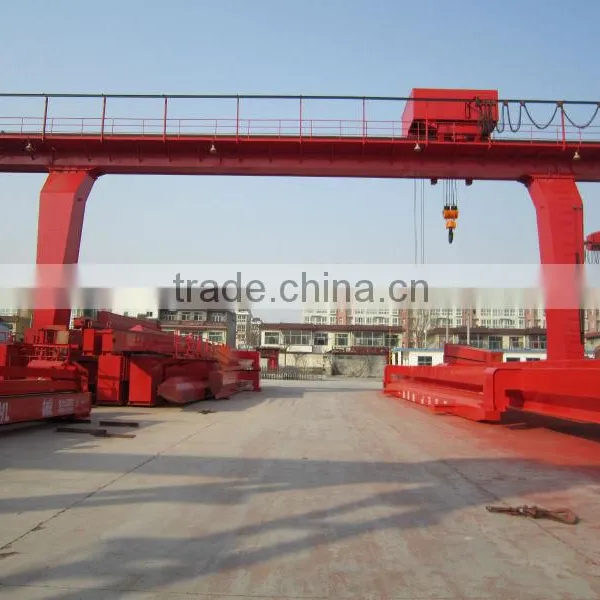

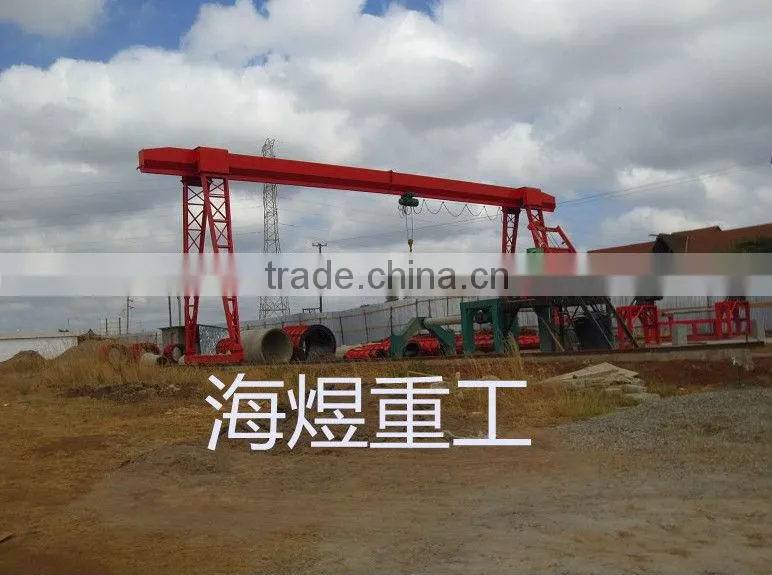

Production Introduction of Gantry Crane
MH type Gantry crane with electric hoist is used with CD1(single speed), MD1(double speed)type electric hoist, also one kind the middle and small scale hoist crane which has the axle to move. The lifting weight is 3-16ton, span is 12-30m, the working level is A3-A5, working environmental temperature is 25°C~40°C.
The product is a kind of crane for general purpose, mainly used in the loading and unloading or moving of materials of warehouse and open space. The ground controlling and cab controlling are the controlling form of the crane.
Capacity (T) |
1,2,3,5,10T |
16,20T |
||||||||||
Span(M) |
7.5~28.5M |
|||||||||||
Crane travelling |
Travelling speed(m/min) |
20 |
30 |
45 |
60 |
75 |
20 |
30 |
45 |
60 |
75 |
|
mechanism |
Reducer ratio |
58.78 |
39.38 |
26.36 |
19.37 |
15.88 |
58.8 |
39.4 |
26.36 |
19.4 |
15.9 |
|
|
Motor |
Model |
ZDY21-4 |
ZDY21-4 |
ZDY122-4 |
ZDY131S-4 |
ZDY112L1-4 |
|||||
|
Power(kw) |
2×0.8 |
2×1.5 |
1.5×2 |
2.2×2 |
2.2×2 |
||||||
|
Rotation (m/min) |
1380 |
1380 |
|||||||||
Lifting |
Electric hoist model |
CD1/MD1 |
CD1/MD1/HC |
|||||||||
mechanism | ||||||||||||
(hoist) |
Lifting speed (m/min) |
8,8/0.8 |
3.5 3.5/0.35 |
|||||||||
&hoist |
Lifting height (m) |
6 ,9 ,12, 18, 24, 30 |
12,18,24,30 |
|||||||||
traveling |
Travelling speed (m/min) |
20(30) |
20(30) |
|||||||||
mechanism |
Motor |
Taper Squirrel-cage type |
Taper Squirrel-cage type |
|||||||||
Work duty |
A3-A5 |
|||||||||||
Power supply |
380V 50HZ three phase |
|||||||||||
Wheel diameter |
270mm |
370mm |
||||||||||
Width of trail |
37-70mm |
37-70mm |
||||||||||
