Specifications
Both flush joint cage, and Socket jonit cage, the angel of the bell can be adjusted.Detailed

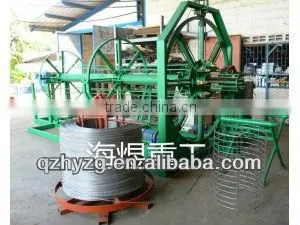

1 Working Principle of Wire Cage Forming Machine for Concrete Pipe
This machine includes three plates, one is the main plate rotating, the second plate is pushing wire, the other plate is used to Diameter-transformed automaticly. The three plates are controlled and drove by its own motor and variable Frequency control system.
2 Features of Wire Cage Forming Machine for Concrete Pipe
2.1 Both flush joint cage, and Socket jonit cage, the angel of the bell can be adjusted.
2.2 PLC digital control system, and the Synchronous Ratio, Frequency converter, which promise the longitude steel bar straight, and the same span of the latitude steel bars.
2.3 One model machine can weld different diameter cages for the reinforced pipes, from 800-2400mm, length: 1-4meter, this machine is multi-function, and man-machine interaction, easy to operate and maintenance.
3 Technical Indexs of Wire Cage Forming Machine for Concrete Pipe
| Specification | Parameter |
| Validity Dia | Socket: 800-1800mm Flat: 800-2000mm |
| Max length of welding | 4000mm |
| Dia.of steel wire | Latitude: 3.5-6mm Longitude: 4-6mm |
| Quantity of longitude wire | 12 |
| Span between latitude wire | 20-150mm |
| Angle of spigot | 10-25degree |
| Rotation speed of main plate | 0-10RPM |
Motor power |
0.55+1.1+2.2KW |
| Transformer power | 150KVA |
